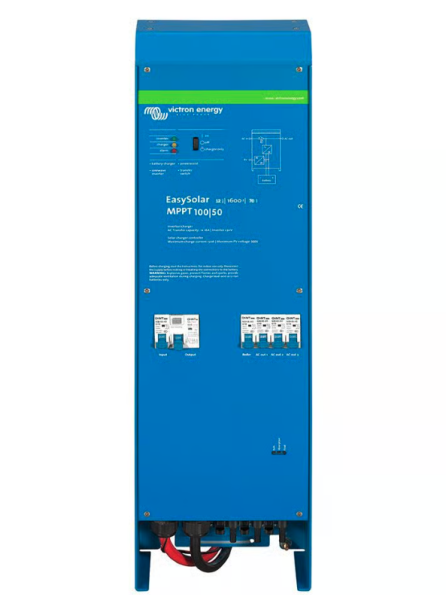

The Victron Energy EasySolar (MPN CEP121621000) 12/1600/70-16 MPPT100/50 is a high-end all-in-one solar solution that combines four important components of a good solar system: These include the MPPT Smart-Solar 100/50, the Multiplus 12/1600/40 inverter/battery charger combo, and, for convenient use, an AC power distribution system with a residual current circuit breaker and two 16A fuses + 10A fuses for 4 separate circuits. The Victron EasySolar is easy to install and requires very little cabling, which reduces installation costs to a minimum.
1. Components of the EasySolar 12/1600/70-16
1.1 The MPPT charge controller SmartSolar 100/50 50A 12V 24V
The Victron MPPT 100/50 (MPN SCC020050200) belongs to the large family of SmartSolar MPPT charge controllers and, like its big brothers, offers ultra-fast power tracking, thereby increasing the yield of your solar system. Especially when the sky is overcast and the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. In addition, the 100/50 features several other innovative technologies such as the VE.Direct communication port.
1.2 The Multiplus 12/1600/70 sine wave inverter + battery device
The Multiplus C 12/1600/70 from Victron (MPN CMP121620000) is a combination device consisting of a 12V 1300W sine wave inverter and battery charger. The permanently integrated battery charger delivers an impressive 70A, which means that even large batteries can be fully charged quickly when shore power/mains power is available. The 12V to 230V sine wave inverter built into the Multiplus delivers an impressive continuous output of 1300W and can handle peak currents of up to 3000W. With the high quality of the AC power, you don't have to compromise when selecting the devices to be operated.
1.3 The integrated 16A mains transfer switch
The 16A transfer switch built into the Multiplus ensures maximum flexibility. The EasySolar 12/1600/70-16 can be used for numerous applications in the grid and off-grid sectors, but also for motorhome owners who want to implement their power supply with a high-quality system. It is just as suitable for UPS solutions (uninterruptible power supply) as it is for grid-connected self-consumption systems that only draw power from the grid operator when the battery capacity is no longer sufficient or other programmable events have occurred.
1.4 Integrated AC distribution
The AC distribution consists of a residual current circuit breaker (30 mA/16 A) and four AC outputs, which are protected by two 10 A and two 16 A fuses. One 16 A output is controlled by the AC input: it only switches on when AC power is available.
2. The VE.Bus communication port
The VE.Bus communication port is extremely powerful and connects the Easy Solar to numerous other Victron components, such as the Global Remote GSM for worldwide remote control or the System Monitor Color Control GX with color display.
In addition, numerous free software programs are available for the VE.Bus for setting up and controlling VE.Bus devices.
3. Technical features at a glance
- 1300W continuous power and 3000W peak power, for 12V battery voltage
- Device combination of inverter with transfer switch and 70A battery charger
- Delivers pure 230V sine wave voltage and a clean 50Hz frequency
- VE.Bus communication port provides extensive networking, system integration, configuration, and control options
- PowerControl function enables operation with limited generator power as well as restricted shore or mains power
- PowerAssist function enables "power boost" of generators and shore power support when needed
- Can be used as a UPS solution for uninterruptible power supply
- Can be used for grid-connected self-consumption systems that only draw power from the grid operator when battery capacity is insufficient or other programmable events have occurred
- Compatible with numerous Victron control and display panels
- Programmable relay on the inverter
- Integrated battery temperature sensor on the inverter for temperature compensation of the battery charger
- PV connection possible via three-phase operation with identical MultiPlus inverters
- Ultra-fast MPP tracker of the latest generation ensures the best possible yield even when the sky is overcast
- Automatic detection of MPP voltage in partial shade ensures a further improvement in yield compared to "simple" MPPT charge controllers
- High overall efficiency of 92%
- Fully programmable charging algorithms that can be manually activated and switched later using a switch on the housing
- Nominal charging current 50A, 100V maximum PV open-circuit voltage
- 700W maximum PV power at 12V
- Integrated protection against battery reverse polarity
- Multi-stage and adaptive charging algorithm
- Integrated temperature sensor compensates for float and constant charging voltage according to temperature
- Complete AC distribution with 2 16A fuses, 2x 10A fuse, and a residual current circuit breaker make the EasySolar very safe
- Suitable for all common battery types and lithium batteries
- Day/night time control and light dimmer functions
Scope of delivery
1x Victron Energy EasySolar (CEP121621000) 12/1600/70-16
MPPT 100/50
1x user manual (German, English, Spanish, French, Dutch)
