Victron Quattro 24/5000/120-100/100

Victron EnergySKU: QUA245021010

Price:
Sale price€2.084,53 EUR Regular price€3.180,87 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

The Quattro 24/5000/120-100/100 from Victron (MPN Qua245021010) is a device combination made of 24V 4000W Sinus inverter, a powerful battery loader and transfer switch. It has two switchable alternating current outputs and 2 alternating current inputs, each equipped with a 100A transfer switch. The Quattro can be connected to two independent alternating current sources: for example to the public power grid and a generator or to two generators. The Quattro automatically connects to the active source.

The permanently integrated battery charger makes a considerable 120a which can also be fully charged even if the land/network current is available. The 24V Sinus voltage converter built into the Quattro converts its battery current into 230V alternating current. Thanks to the real sine wave, the electricity quality is also perfect for sensitive electronic devices. In addition to the two integrated device types, 1 lightning -fast 100A transfer switch per alternating current input is installed. Thanks to these switches, countless applications can also be implemented in the network -coupled area. In addition to the Ve.Bus Port, 2 Com ports are also available for system integration, which almost enables limitless networking of the quattro.

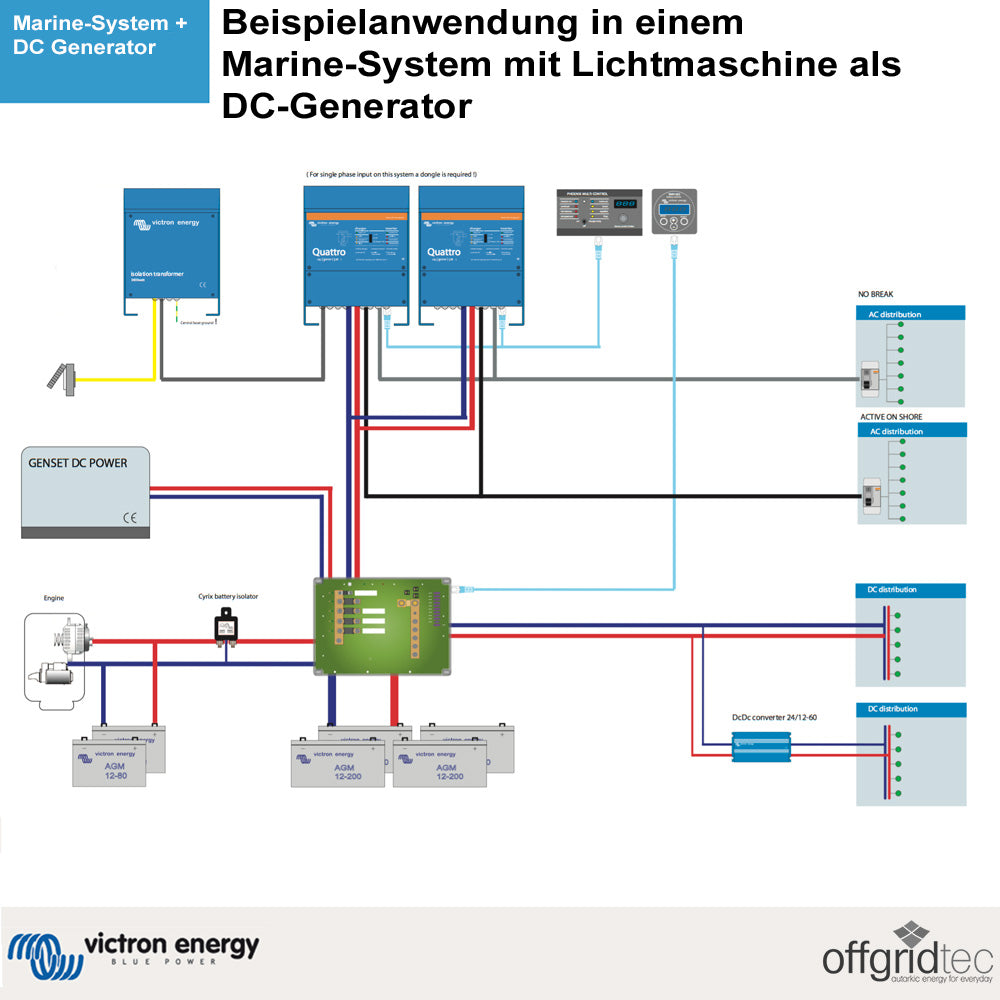

Extremely flexible thanks to 2 alternating current inputs and 2 alternating current outputs

The main exit ensures uninterrupted operation. In the event of a network failure or if the land/generator current is interrupted, the Quattro takes over the supply of the connected consumers. Switching happens so quickly (in less than 20 milliseconds) that an interruption -free operation of computers and other electronic devices is guaranteed. The second output only provides electricity if an alternating current is available on one of the inputs of the Quattro. Consumers who are not allowed to unload the battery, such as B. a water heater can be connected to this output.

Essential performance features of the Quattro 24/5000/120-100/100

  • 4000W continuous output and 8000W peak output, for 24V battery voltage
  • Device combination made of inverter with transfer switch and 120a battery cador
  • delivers the purest 230V sinus voltage and a clean 50Hz frequency
  • 2 AC incoming with an integrated transfer switch/ 2 x 100 A Maximum power can be switched
  • 2 AC exits +1x additional output which only lets the electricity to consumer pass when the alternating current input is active.
  • Ve.Bus communication sport ensures extensive possibilities of networking, system integration, configuration and control of the multiplus devices from Victron.
  • Support the three-phase operation (3 equal units of the same model required)
  • Multiplus devices are parallel -switched, up to 6 devices can be connected in parallel and the system performance can therefore be significantly increased if necessary
  • 2x COM ports are available in addition to the Ve.Bus port, so that the system integration is actually no limits to the system integration
  • PowerControl function enables working with limited generator performance as well as limited land or network electricity
  • Power assist function enables "performance increase" of generators and land connection support in the event of
  • can be used as a UPS solution for interruption -free power supply, thanks to the integrated transfer switch with 16A or 50A
  • for network -coupled self -consumption systems that can only be used by the network operator if the battery capacity is no longer sufficient or other programmable events have taken place
  • 3 Separate programmable relays
  • Compatible with numerous victron tax and display panels
  • very high efficiency and low self -consumption

Solid performance expansion possible

Up to 6 quattros can be switched in parallel. This results, for example, with six 48/10000/140 units 54 kW/60 kva power or 840 A charging current. Three units can be switched in a three-phase configuration. However, this is not enough: up to 6 sets with three devices can be switched in parallel and you get 162 kW/180 KVA inverter performance and over 2,500 A charging capacity.

PowerControl- Working with limited generator performance, limited land or network electricity

The Multiplus is a very powerful battery charger. Therefore, it takes up a lot of electricity from the generator or the land power supply (almost 10a per 5kva multi at 230 VAC). With the remote control panel Multi Control, the maximum network or generator current can be set. The Multiplus then takes into account other connected alternating current consumers and only uses the electricity that is still "left". This prevents the generator or land power connection from being overloaded.

Power Assist - "performance increase" by generators and land connection support

With this function, the PowerControl principle receives a new dimension. It enables the Quattro to support too weak alternative sources. Load tips often only occur for a limited period of time. In such a case, the Quattro ensures that an excessive land current or generator output is immediately compensated for by energy from the battery.

Backup system: alternating current even in the event of a network failure

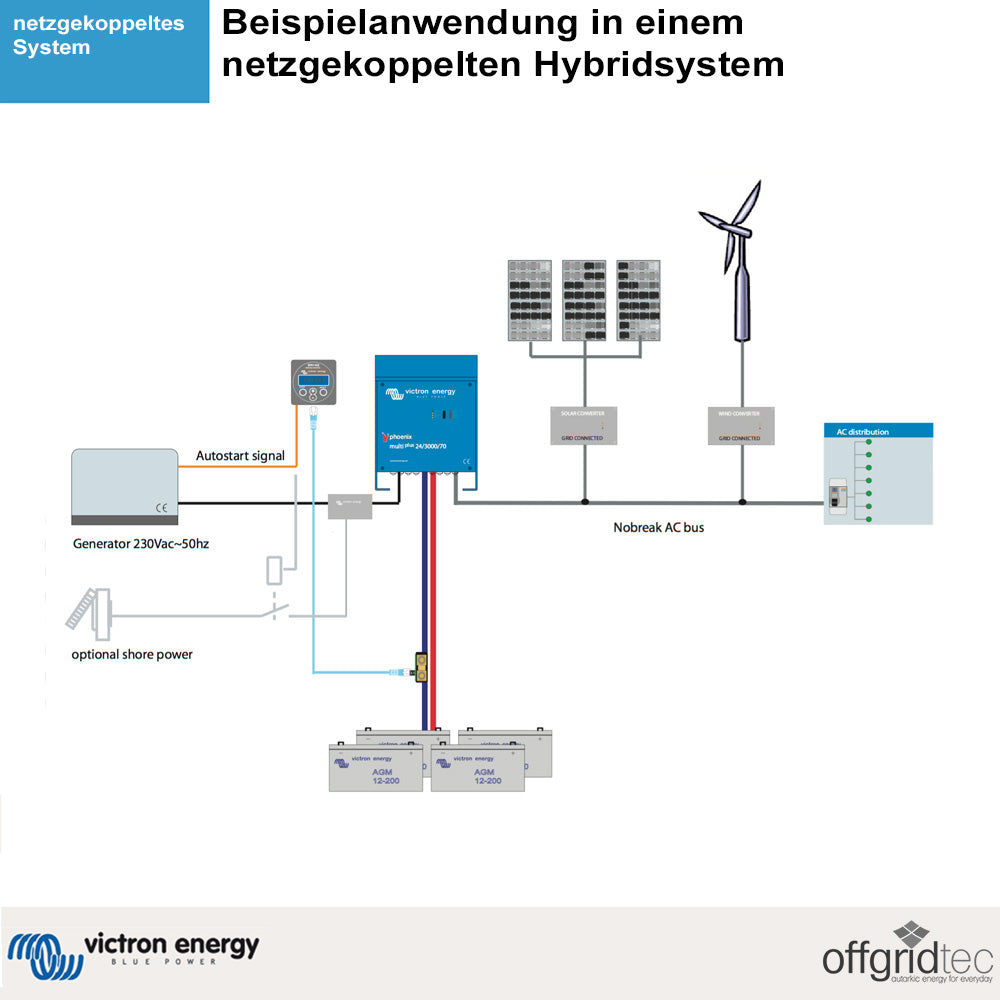

The Quattro can be used in both non-linked and network-coupled PV systems as well as with other alternative energy systems. Software is available for recognizing a network failure.

Simple system configuration

If settings have to be changed to a single device, this can be done within a few minutes using a DIP switch setting process.

Parallel switched and three-phase systems can be configured with the Ve.Bus Quick Configuret- und Ve.Bus System Configurator software.

Monitoring options and controls on site

Several options are available: battery tenant, Multi Control Panel, Ve.net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), Laptop or Computer (USB or RS232).

Monitoring and control from a distance

Victron Ethernet Remote, Victron Global Remote and the Color Control Panel enable remote maintenance and remote monitoring of the Multiplus. In addition, the system data can be saved and viewed free of charge on the VRM (Victron Remote Management) website.

Configuration from a distance

If systems are connected to the Ethernet with a color control panel, you can be accessed and settings can be changed from a distance.

Scope of delivery: 1x Victron Qua245021010 Quattro 24/5000/120-100/100 device combination consisting of 24V 4000W sinus converter + 24V 120A battery loader + 2 alternating current inputs with integrated 100A transfer switches

1x operating instructions

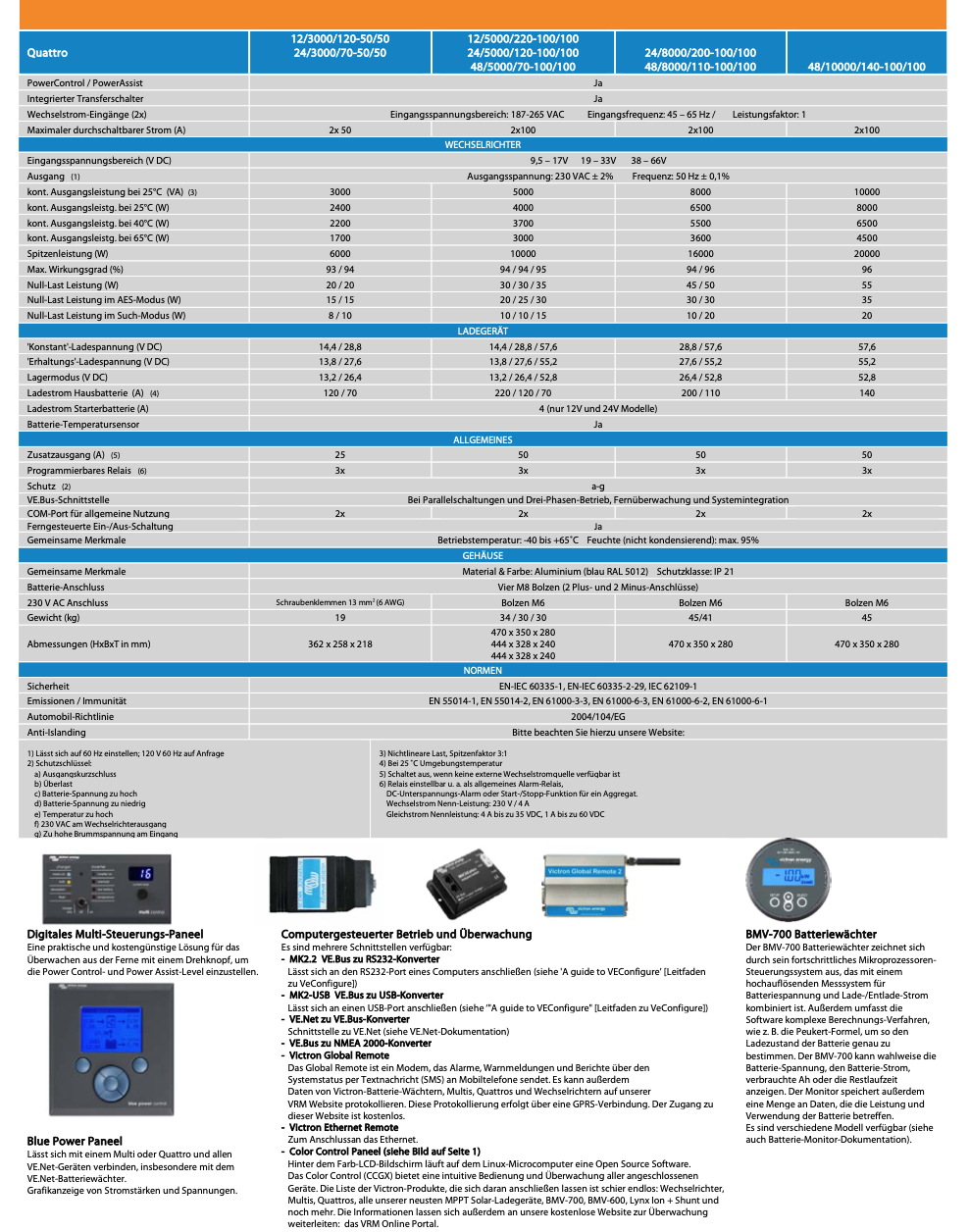

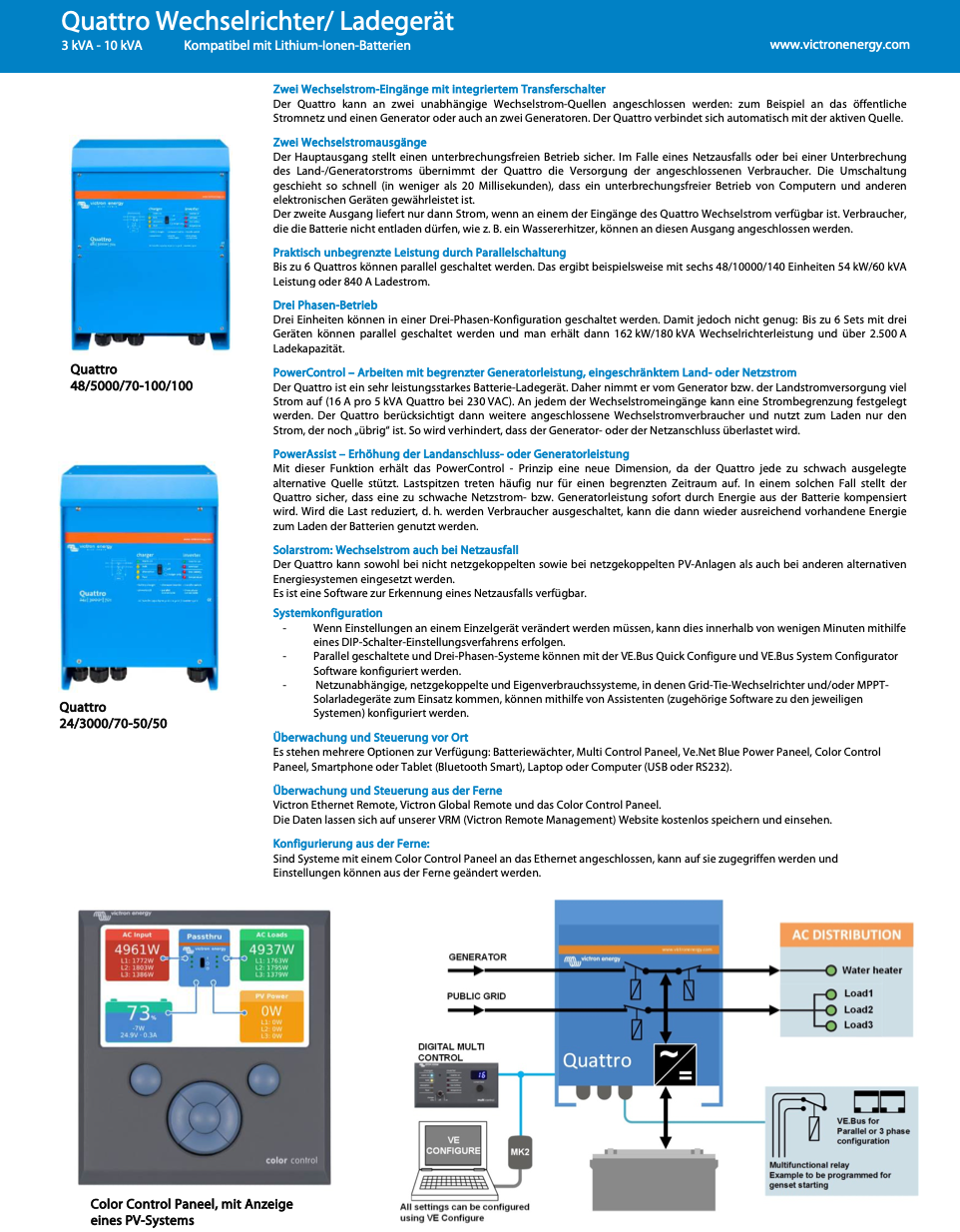

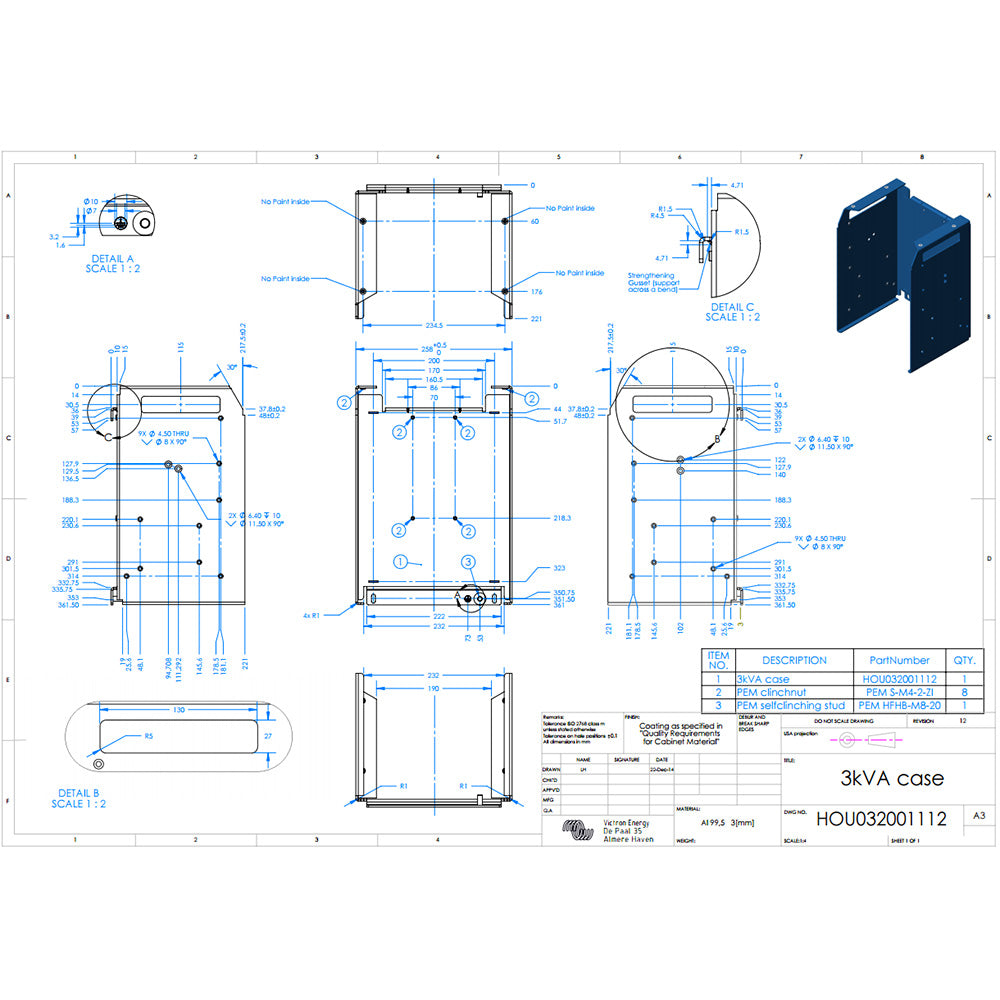

data sheet

Tension

24V DC / 230V AC

Transfer switch performance

2x 100a

Transfer switch integrated

Yes - 2 pieces

Battery outputs

Female

Battery voltage

24V

IP protection

IP21

Temperature range

-40 ° C to 65 ° C

Product

Device combination consisting of 24V to 230V sinus voltage converter, battery loader and transfer switch. Compared to the Multiplus series, all Quattros have 2 switchable AC inputs and 2 AC outputs.

Nominal output voltage

230V AC / AC

guarantee

5 years of manufacturer's guarantee

Self -consumption during idle

30W

Self -consumption in standby

10W

Frequency range

50Hz / +-0.1Hz

Permanent performance

4000W

Sinus wave

real sine wave

Manufacturer

Victron Energy

Weight

30 kg

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
