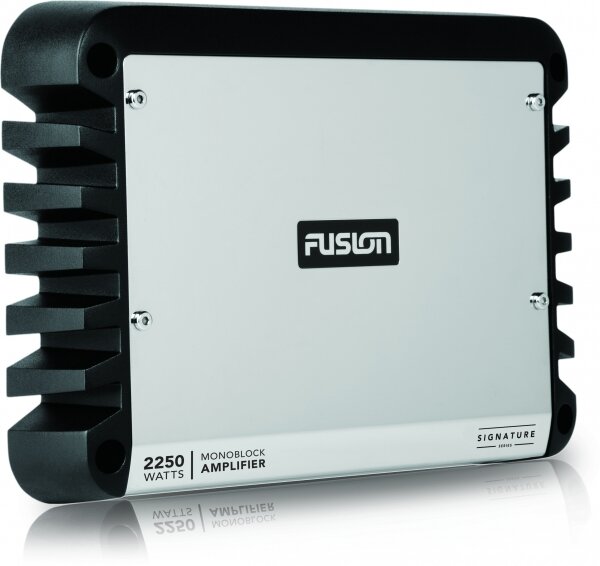

Introducing one of our most stunning and efficient marine amplifiers, the SG-DA12250. Its True-Marine design is corrosion-resistant, and the incredible peak power of 2250 watts can be configured for a 1-ohm impedance - delivering enough power to bring your Signature Series subwoofer components to life.

The SG-DA12250 features a highly efficient monoblock Class-D amplifier design. The main advantage of a Class-D amplifier is low battery consumption at high output, making it the perfect amplifier for the marine environment. The SG-DA12250 also features conformal coated circuit boards for maximum service life and performance, and the amplifier chassis acts as a heatsink to reduce core component temperature and increase efficiency.

The stunning stainless steel mirror-finish control panel cover conceals and protects all cable connections and adjustment controls, while providing an attractive finish that complements any installation.

Zone 1 and 2 outputs include four speaker channels and one subwoofer. RCA line inputs allow easy connection to new or existing systems.

Features:

Class-D Amplifier Technology- The highly efficient Class-D design delivers 2250 watts of peak power while drawing less current than a standard Class-AB amplifier. This design provides greater efficiency and power for your speakers and lets you enjoy your music for longer.

2250 Watts Peak Power- Bring your music to life with 2250 watts of peak power.

Marine-ready Design with Conformal Coated Circuit Boards- The Signature Series has been specifically designed for marine use with conformal coated circuit boards to provide additional protection against the marine elements.

Rigid Aluminum Alloy Heatsink- Cast into a unique die-cast housing, the fin layout is precision-engineered to increase the heatsink surface area and improve heat dissipation.

Stainless Steel Mirror Finish- The polished stainless steel control panel cover conceals and protects all cable connections and adjustment controls while providing an attractive finish that complements any installation.

Zone Designation- To align with the zone philosophy of the Fusion entertainment system, the input and output connections are designated as zones.

Product Specifications

Amplifier Class	Class-D
Subwoofer Frequency Response	10Hz - 320Hz
Peak Power	2250 Watts
Rated Power (4 Ohms)	500 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
Rated Power (2 Ohms)	850 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD
Rated Power (1 Ohm)	1100 Watts RMS x 1 @ 14.4V - 1 Ohm 1% THD

Mounting Dimensions

Length	300mm [11-13/16"]
Depth	210mm [8-1/4"]
Height	50mm [2"]

Fusion Signature Series marine amplifiers have been specifically designed for the marine environment. With some of the most impressive protection measures on the market, they deliver distinctive performance on the water like never before. Introducing one of our most stunning and efficient marine amplifiers, the SG-DA12250. Its True-Marine design is corrosion-resistant, and the incredible peak power of 2250 watts can be configured for a 1-ohm impedance - delivering enough power to bring your Signature Series subwoofer components to life.

10660,27 Kč

incl. 19% VAT ,

Net: 8958,21 Kč

Choose tax zone / country of delivery

Currently out of stock
Shipping in 1-3 business days (DE - int. shipments may differ)

Due to exceptionally high demand, we are currently experiencing shipping delays. We apologize for any inconvenience.

Notify me when this item is available

E-Mail

Ordered in Germany. Delivered to Switzerland.

Order from any online shop in Germany and receive your goods at your doorstep in Switzerland in just 2–3 days.

Description

Zone 1 and 2 outputs include four speaker channels and one subwoofer. RCA line inputs allow easy connection to new or existing systems.

Features:

2250 Watts Peak Power- Bring your music to life with 2250 watts of peak power.

Rigid Aluminum Alloy Heatsink- Cast into a unique die-cast housing, the fin layout is precision-engineered to increase the heatsink surface area and improve heat dissipation.

Zone Designation- To align with the zone philosophy of the Fusion entertainment system, the input and output connections are designated as zones.

Product Specifications

Amplifier Class	Class-D
Subwoofer Frequency Response	10Hz - 320Hz
Peak Power	2250 Watts
Rated Power (4 Ohms)	500 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
Rated Power (2 Ohms)	850 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD
Rated Power (1 Ohm)	1100 Watts RMS x 1 @ 14.4V - 1 Ohm 1% THD

Mounting Dimensions

Length	300mm [11-13/16"]
Depth	210mm [8-1/4"]
Height	50mm [2"]

Shipping weight:

4,00 kg
Item weight:

3,00 kg
