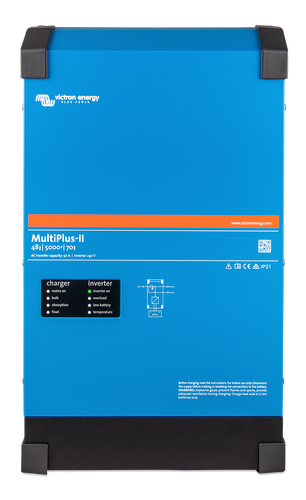

Victron MultiPlus-II 48/5000/70-50

Victron Energy |PMP482505010
GTIN: 8719076047599

JTL\Catalog\Product\Artikel Object ( [kArtikel] => 1396 [kHersteller] => 19 [kLieferstatus] => 1 [kSteuerklasse] => 1 [kEinheit] => 0 [kVersandklasse] => 1 [kStueckliste] => 0 [kMassEinheit] => 0 [kGrundpreisEinheit] => 0 [kWarengruppe] => 0 [nLiefertageWennAusverkauft] => 3 [nAutomatischeLiefertageberechnung] => 1 [nBearbeitungszeit] => 0 [fLagerbestand] => 42 [nNichtLieferbar] => 0 [fMindestbestellmenge] => 0 [fPackeinheit] => 1 [fAbnahmeintervall] => 0 [fGewicht] => 32 [fUVP] => 1057.91 [fUVPBrutto] => 1057.91 [fVPEWert] => 0 [fZulauf] => 0 [fMassMenge] => 0 [fGrundpreisMenge] => 0 [fBreite] => 0 [fHoehe] => 0 [fLaenge] => 0 [cName] => Victron MultiPlus-II 48/5000/70-50 [cSeo] => Victron-MultiPlus-II-48-5000-70-50_3 [cBeschreibung] =>

The Multiplus-II 48/5000/70-50 from Victron Energy is a high-end device combination that combines the classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 100 A and extends the potential range of use to ESS applications. The inverter module delivers a full 5000 W with a non-linear load and 4000 W with a linear continuous load. The 48 V battery charger is also very well proportioned with 70 A charging power and is supplemented by a 50 A transfer switch, which can be used to switch back and forth between the AC connections at lightning speed.

Important features
- PowerControl and PowerAssist - increase of mains or generator power
- built-in anti-islanding function and connection option for external current sensor (optional)
- can be used as a backup device in grid-connected systems
;for power supply in the event of mains failures
- can be used in various ESS (Energy Storage System) applications
- ideally suited for professional shipping, yachts, vehicles and land-based, off-grid applications
- VE.Bus interface for parallel and three-phase operation, remote monitoring and system integration
- virtually unlimited power through parallel and three-phase operation
- can be configured locally or remotely using VEConfigure software

technical features
- 5000 W power with non-linear load 4000 W continuous load and 9000 W peak power
- for 48 V battery voltage, 50 A transfer switch and 70 A battery charger
- output voltage: 230 VAC, frequency: 50 Hz
- max. efficiency is 95%, protection class IP22

always enough power thanks to PowerControl and PowerAssist
A maximum mains or generator current can be set on the Multiplus-II 48/5000/70-50. The MultiPlus-II then takes account of other connected AC consumers and only uses the current that is still "available" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The PowerAssist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such cases, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. If the load is reduced, i.e. consumers are switched off, the available energy can then be used to charge the batteries again.

Solar power: Alternating current even in the event of a grid failure
The device can be used for both off-grid and grid-connected PV systems as well as other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters.

Maximum flexibility thanks to two AC outputs
The main output ensures uninterrupted operation. In the event of a mains failure or an interruption in the shore/generator power, the MultiPlus-II takes over the supply to the connected loads. The switchover takes place so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power if alternating current is available at the input of the MultiPlus-II. Consumers that must not discharge the battery, such as a water heater, can be connected to this output.

Many options for system expansion
The settings can be changed within a few minutes using the VEConfigure software (requires a computer or laptop and an MK3 USB interface).Multiple monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart Dongle), battery monitor, Digital Multi control panel.

Remote configuration and monitoring
Install a Color Control GX or other GX products to connect to the Internet. The operating data can be stored and viewed free of charge on our VRM (Victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed.

[cAnmerkung] => [cArtNr] => PMP482505010 [cURL] => Victron-MultiPlus-II-48-5000-70-50_3 [cURLFull] => https://dev.frenchman-energy.eu/Victron-MultiPlus-II-48-5000-70-50_3 [cVPE] => N [cVPEEinheit] => [cSuchbegriffe] => [cTeilbar] => N [cBarcode] => 8719076047599 [cLagerBeachten] => Y [cLagerKleinerNull] => N [cLagerVariation] => N [cKurzBeschreibung] =>

The Multiplus-II 48/5000/70-50 from Victron Energyis a high-end device combination that combines the classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 100 A and extends the potential range of use to ESS applications. The inverter module delivers a full 5000 W with a non-linear load and 4000 W with a linear continuous load. The 48 V battery charger is also very well proportioned with 70 A charging power and is supplemented by a 50 A transfer switch, which can be used to switch back and forth between the AC connections at lightning speed.

The battery switch is intended for permanent current and is suitable for battery systems up to 48 V. It has a unique ergonomic and aesthetic button for easy operation.

use

With the battery switch, a battery of DC loads and/or DC load sources can be separated. It serves to maintain the battery charge for unattended systems, for system maintenance or in emergencies. With the battery switch, the house battery can also be switched in parallel to the starter battery to supplement a unloaded starter battery or a discharged house battery in an emergency.

installation

The battery switch offers both a surface and back wall assembly and is therefore flexible when installing. It has 4 easily removable side parts for cable access. It is supplied with 16 different label stickers for the individual design of the battery switch.

Security

The button is removable for insulation or security purposes. The battery switch corresponds to the ISO8846 Zuf protection standard and is suitable for use in a machine room.

Max. Permanent current 275 a

1-minute introduction 455 a

Nominal value Home 1250 a

Nominal voltage 48 V

Material of the clamps tinned copper

Material of the hexagon nut Tinned copper

Diameter of the clamp 3/8 inches / 9.53 mm

Recommended torque 70 LBF · Inch / 8 N · M

Base material glass fiber reinforced nylon

Weight 0.4 LB / 0.2 kg

Dimensions (L x W x H) 2.7 x 3.0 x 2.7 inches 69.5 x 76.3 x 69.5 mm

Assembly surface or back wall assembly

ISO8846 / SAE J1171
