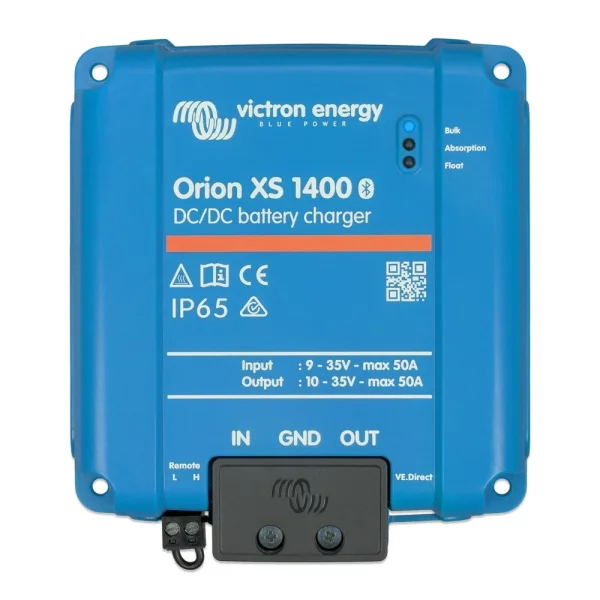

Victron Orion XS 1400 DC-DC Battery Charger 12V 24V

Victron Orion XS 1400 DC-DC Battery Charger 12V 24V

Victron Energy |ORI242417040
GTIN: 8719076064848

JTL\Catalog\Product\Artikel Object ( [kArtikel] => 5400 [kHersteller] => 19 [kLieferstatus] => 1 [kSteuerklasse] => 1 [kEinheit] => 0 [kVersandklasse] => 1 [kStueckliste] => 0 [kMassEinheit] => 0 [kGrundpreisEinheit] => 0 [kWarengruppe] => 0 [nLiefertageWennAusverkauft] => 3 [nAutomatischeLiefertageberechnung] => 1 [nBearbeitungszeit] => 0 [fLagerbestand] => 14 [nNichtLieferbar] => 0 [fMindestbestellmenge] => 0 [fPackeinheit] => 1 [fAbnahmeintervall] => 0 [fGewicht] => 0.68 [fUVP] => 452.2 [fUVPBrutto] => 452.2 [fVPEWert] => 0 [fZulauf] => 0 [fMassMenge] => 0 [fGrundpreisMenge] => 0 [fBreite] => 14 [fHoehe] => 7 [fLaenge] => 15 [cName] => Victron Orion XS 1400 DC-DC Battery Charger 12V 24V [cSeo] => Victron-Orion-XS-1400-DC-DC-Battery-Charger-12V-24V [cBeschreibung] =>

The Orion XS 1400 from Victron Energy is a state-of-the-art DC-DC battery charger for 12V, 24V or both, specially designed for dual battery systems with intelligent alternators. It also serves as a power source and offers a wide input and output voltage range at full power up to a temperature of 40°C. Its ability to ensure precise and controlled charging makes it ideal for vehicles, boats and motorhomes operating in conditions with low charging voltages or long cables. With a wide input and output voltage range, the Orion XS ensures that your service battery is always optimally charged and the starter battery remains protected from discharge. Thanks to the adaptive 4-stage charging algorithm, the device adapts intelligently to the battery's state of charge. The Bluetooth Smart function enables simple monitoring and adjustment via the VictronConnect app. With comprehensive safety functions such as overload, short-circuit and temperature monitoring, the Orion XS ensures the protection of your system. Its IP65 certification also makes it robust against dust and rain. With the Orion XS you get a powerful and reliable solution with a 5 times higher efficiency than its predecessors for your battery charging system.

Product highlights of the Orion XS 1400

Configurable voltage and current

Adaptive 4-stage charging algorithm

Efficient cooling

Efficiency of 98.5%

Motor switch-off detection

Full electronic protection

Switch-off at low temperature

Remote on/off control

Compatibility with intelligent alternators

Parallel connection of any number of devices

IP65 protection class (dust and waterproof)

User-friendly VictronConnect app

VE.Direct connection

Adaptive 4-stage charging algorithm

With lead batteries, it is crucial to keep the constant voltage phase short during shallow discharges in order to avoid overcharging the battery. However, after a deep discharge, the constant voltage phase is automatically extended to ensure that the battery is fully charged. The Orion XS offers you fully programmable charging algorithms and eight pre-programmed battery settings. This ensures that your battery is always charged optimally and efficiently, adapted to your specific needs.

Configurable charging

Input and output currents and voltages can be precisely adjusted using user-friendly controls. This prevents overloading of the alternators and ensures that 12V or 24V supply batteries are charged correctly, especially when using intelligent alternators.

Intelligent alternator compatibility

The Orion XS is equipped with intelligent engine run detection, which ensures that the charger only draws current when the engine is running. This contributes to the efficient use and protection of your battery. In addition, the Orion XS helps to utilize the optimal charging current of intelligent alternators, such as those used in Euro 5 and Euro 6 engines. This means your system is always charged reliably and efficiently.

Switch-off at low temperature

The charger ensures optimum protection of your lithium batteries by automatically switching off at low temperatures. It also deactivates itself if the input voltage falls below a limit value set by you, thus preventing deep discharge of the starter battery. This keeps your system safe and efficiently protected at all times.

Comprehensive electronic protection

The protection functions include overload, short circuit and overtemperature. The charger is protected against overheating by reducing the output power when the maximum device temperature is reached. The highly efficient components and the aluminum circuit board technology also ensure less heat generation.

App usage and monitoring

The charger is equipped with integrated Bluetooth, which allows you to set it up quickly and easily. With the VictronConnect app, you can make advanced settings via your cell phone or tablet, monitor your devices comprehensively and carry out firmware updates effortlessly. The charging current is also adjustable with a minimum step size of 0.1 A. The Orion XS can be switched on and off remotely via the connector or via the app.

Technical data

Input voltage range: 9-35V

Adjustable output voltage range: 10-35V

Output voltage tolerance: +/- 0.25%

Output voltage noise: 10mV rms

Max. constant short-circuit current: 50A

Continuous output power up to 40°C: 1400W

Max. Efficiency: 98.5%

Current consumption without load: <100mA

Current consumption in standby mode: <1.5mA

Temperature range: -20°C to +60°C

Humidity: max. 95% non-condensing

Protection class: IP65

Weight: 0.52 kg

Dimensions: 138.1 x 124.4 x 53 mm

Scope of delivery

1x Victron Orion XS 1400 DC-DC battery charger

The MIDI-FUSE fuse holder of Victron Energy (MPN CIP000050001) with a lid is used to secure DC MIDI-Fuse patrol fuses. The housing offers solid protection of the fuse. Midi-Fuse fuses include the patrol fuses and are screwed to the holder. Corresponding nuts and sprinkling rings are already pre -assembled on the holder.

Important article features at a glance:

200a maximum electricity at max. 58V DC

For fuses of the MIDI-FUSE

High -strength plastic housing, complete with fuse rings and nuts to install your fuse

Corresponds to the standard IEC 60947-3: 1999 + A1: 2001 + A2: 2005 in connection with IEC 60947-1: 2004

Hints:

Only the holder is included in the scope of delivery, the fuses must be purchased separately.

Scope of delivery:

1x Victron CIP000050001 MIDI-FUSE Fuse holder
