CS 300AH 12.8V lithium lifepo4-caravan battery with 500a Bluetooth-Mess-Shunt

CS-BatteriesSKU: CSX12300-BMS200CBS

Price:
Sale price€2.021,81 EUR Regular price€3.050,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Special action as long as the stock lasts or until March 31, 2024

Now with 7 years of manufacturer's guarantee!

300AH Lithium battery as a full-fledged lead battery replacement for your motorhome

The CS batteries Deepc-Power Lifepo4 Battery is designed for motorhomes. With the new lithium iron technology, you can replace your previous lead or AGM battery for the first time quickly and easily.

The ultra-light deepc power battery can be used as a pure supply battery and can be briefly loaded up to 400A. The much lower weight, the long operating safety, the long service life and the long service life are decisive advantages over hermarfly batteries of old technology.

Features:

  • High -powered
  • Replaces a 600Ah lead battery
  • Built -in BMS
  • Very low weight
  • Fast -charging
  • High self -security
  • Can be used in all layers
  • Temperature -stable
  • Frost-cell control
  • Over 4000 cycles at 80% discharge
  • Lifespan up to 10 - 20 years
  • 100% maintenance -free
  • Environmentally friendly, no lead, no acid
  • Recyclable!


The lithium-iron phosphate battery (LIFEPO4) is the safest from the family of lithium-ion battery types. It is high -powered, universally usable and has a low weight towards lead, gel or AGM batteries. In addition, the latest lithium iron technology offers a high degree of self-security, so that a risk of explosion is excluded even under the most extreme conditions. A 12.8V LIFEPO4 battery consists of 4 individual cells connected in series with 3.2V nominal voltage. A built-in battery management system (BMS) also safely protects the battery cells from damage.


Advantages of our LIFEPO4 Deepc-Power battery against lead batteries:

  • High discharge flows possible up to the specified capacity
  • Due to the weight of up to 60% less, more loading is possible
  • Due to the lower space requirement, more capacity can be carried on the same place
  • Up to 10 times longer lifespan due to the high number of cycles of the LIFEPO4 technology
  • Extremely fast charging of the cells possible
  • Complete discharge of the specified nominal capacity possible
  • The battery is protected by a battery management (BMS)
  • The cargo in the motorhome takes place via common lead, or acid chargers with a loading tension of 14.6V
  • The battery is winterproof and does not have to be expanded to -20 ° C
  • Is delivered fully charged, install and drive off
  • By default, the battery M8 has screw connections, which can optionally be equipped with our extra light poladapters
  • No change in the motorhome or additional electronics is required to use the battery
  • Due to the low self -discharge, a locked battery can be stored without any problems for up to 6 months
  • For more capacity you can switch any number of batteries in parallel
  • For more voltage you can switch up to 4 batteries (maximum 48V) in series


Battery management system (BMS)

A battery management system monitors and controls the individual cells of a battery and protects them from damage. Important functions of a battery management system:

  • Overload protection
  • Deep discharge
  • Overvoltage protection
  • Active cell balancing
  • Cycling and control
  • Temperature protection of the cells
  • Temperature protection of the BMS
  • Automatic intelligent charging control from 0 ° C cell temperature
  • Short -circuit

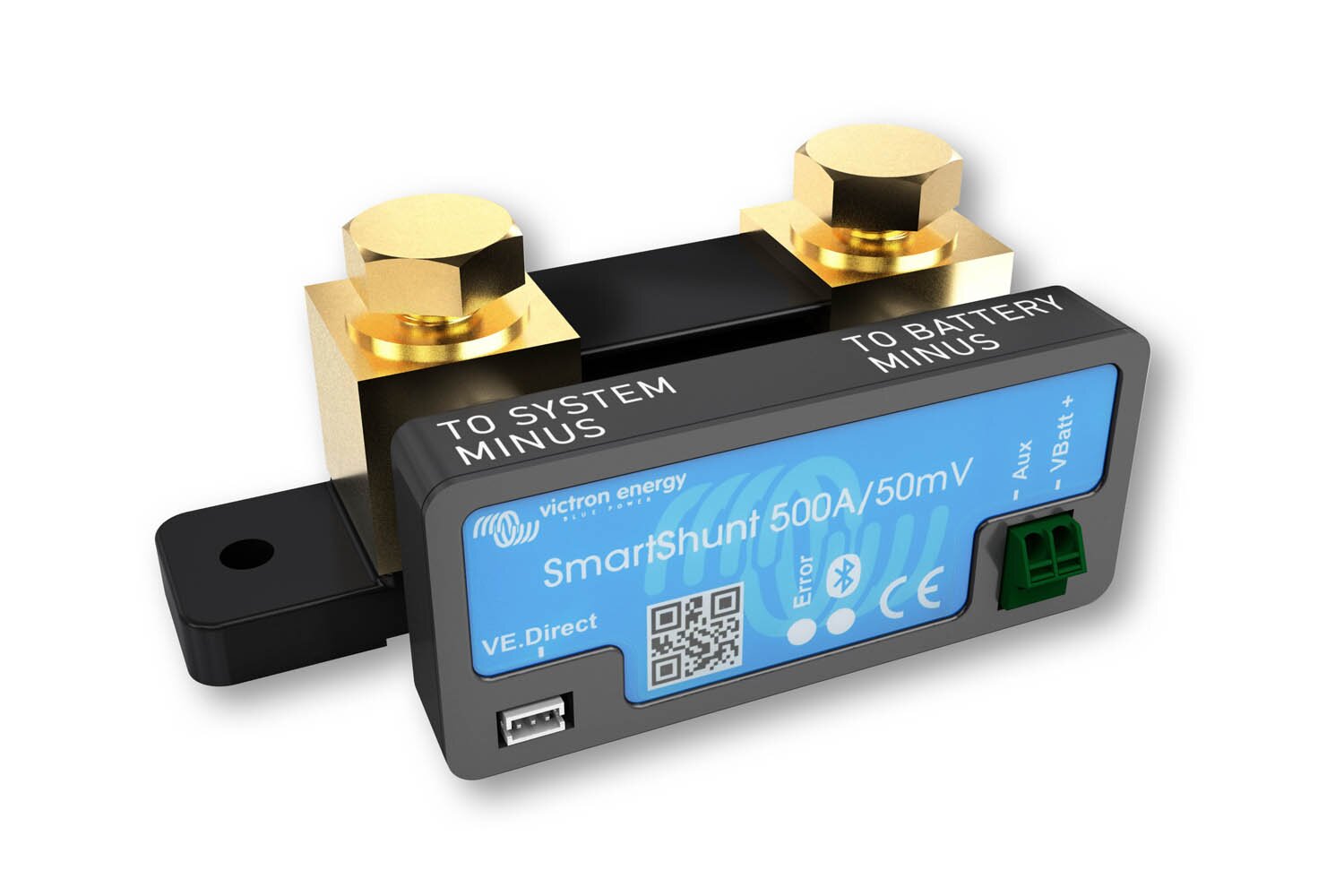

500A-Bluetooth Smartshunt

The Smartshunt is a battery lesser. It measures battery voltage and current. On the basis of these measurements, it calculates the loading status, the remaining term and pursues progress data, such as the lowest discharge, the average discharge and the number of cycles. The Smartshunt connects to the VictronConnect app via Bluetooth. The VictronConnect app is used to read all monitored battery parameters and is also used to make or change settings.

Certificates:
CE: General operational safety
Unt38.3: Certified transport security in traffic
Rohs: Certified material security
GUARANTEE: 7 years of manufacturer's guarantee

You can find suitable polabapter here


Technical data:

Model: CSX12300-BMS200C
Type: Supply battery
Nominal capacity: 300Ah
Energy content: 3840 Wh
Cell technology: Lithium-iron nanophosphate lifepo4
Cell type: BIG-CAPACITY-PRISMATICCELLS (BCC)
Replaces one: 600Ah lead gel battery
Application: 12V installations
Application in parallel circuit: Yes, any number of the same type possible
Application Series circuit: Yes, 24V, 36V and a maximum of 48V possible
Operating voltage: 10.5 - 14.4V
Nominal voltage: 12.8V
Lifespan: = 10 years
Cycling time at 50% DOD: = 6000
Cycling time at 80% DOD: = 4000
Cycling time at 90% DOD: = 3500
Loading programs: CCCV / iu / iuou
Load closing voltage: 14.2 - 14.6V
Maximum charging current: 200a / 1c
Maximum permanent charging current: 100a / 0.5c
Charging current for max. Lifespan: 66a / 0.33c
Permanent enthusiasm: 200a
Topping charging current (3-5 sec.): 400a
Maximum inver power: 5000W Peak | 2500W continuous performance
Discharge tension: 10.5V
Temperature range (discharge): -20 ° C to +65 ° C
Temperature range (charge): 0 ° C to +50 ° C | Automatically reduces below 0 ° C!
Temperature range (storage): -20 ° C to +65 ° C
Battery management system (BMS): Yes, installed
Balancer: Yes, active balancer
Self -discharge: 1-2% / month
Installation position: any
Connection: M8 screw
Protection class: IP65 water & dust protected
Weight: 31kg
Dimensions (BXTXH): 520 x 268 x 220 mm
NEW: Manufacturer guarantee: 7 years



Recommendation for:
Motorhomes


Scope of delivery:
1 x lifepo4 deepc-power battery
1 x Victron Smart 500a Mess-Shunt
1 x operating instructions



Replaces 6 pieces of old 100Ah AGM batteries
High reliability and long service life
Exact state display via the app via measuring shunt system
