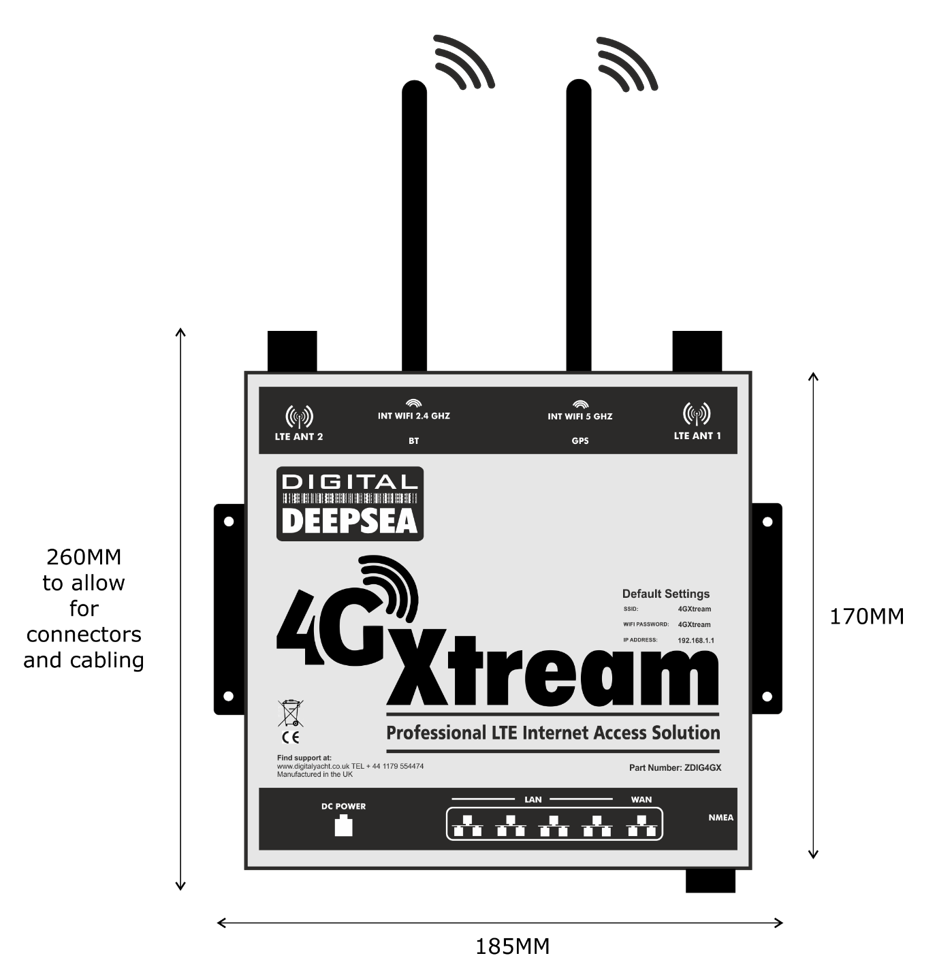

Digital Yacht 4G Xtream

Digital YachtSKU: ZDIG4GX

Price:
Sale price€1.549,00 EUR Regular price€1.636,25 EUR

Tax included Shipping calculated at checkout

Wird beim Hersteller für Sie bestellt - Lieferzeit 20-24 Werktage

Description

"High-quality product for LTE Internet on board with MIMO technology and dual-band WLAN router. A complete package suitable for connecting to mobile devices.”

4G Xtream is our latest high-quality product for LTE Internet access (cellular). You get it as a complete package with two external antennas, mounting material and cabling. Alternative antenna mounts are optionally available.

With MIMO technology and two external broadband LTE antennas, it offers a fast connection with up to 300 MBs (network dependent). It has an integrated dual-band WiFi router that supports multiple connections, as well as two SIM card trays (with automatic failover if necessary) and integrated GPS (for IoT and tracking applications). There is also an NMEA 2000 interface for navigation and device data connectivity and wireless pairing. There is also a Bluetooth interface for future connectivity applications. It is therefore ideal for connecting to mobile devices so that you can use the boat's navigation and instrument data on various apps.

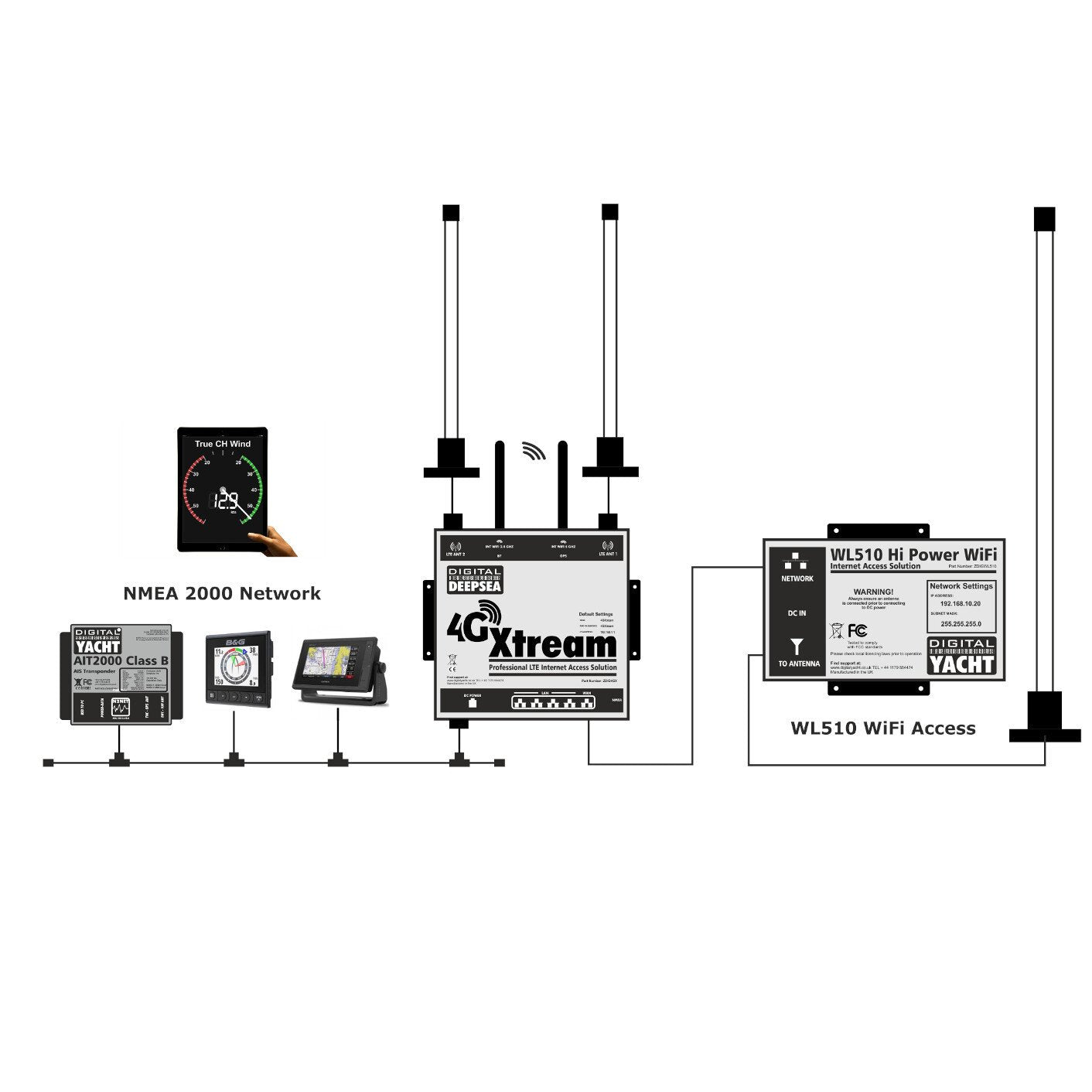

For external high performance WiFi (for accessing hotspots on land) our WL510 is recommended to be connected to the WAN port. The 4G Xtream can then act as a router for that connection, allowing the user to switch from WiFi to LTE.

Deployed alongside our existing 4G Connect Pro as a premium product, it is ideal for use on large yachts, workboats, tugboats and commercial vessels where a reliable and cost-effective internet connection is required on shore and in port.

For more information about the setup and all functions of the 4G Xtream, please refer to our 4G Xtream product presentation by clicking on the hyperlink.

PROPERTIES
  • LTE internet access on board your yacht
  • Latest Cat 6 LTE MIMO technology with a range of up to 25NM offshore (network dependent)
  • Two SIM slots with automatic failover or manual selection
  • Two external high-gain antennas with wide bandwidth
  • Integrated dual-band WiFi router (2.4 & 5 GHz) - independent configuration
  • Built-in NMEA 2000 interface to transmit NMEA 2000 data to compatible apps over the wireless and wired network
  • Built-in GPS with external patch antenna for IoT and tracking applications
  • Built-in Bluetooth with antenna for future applications

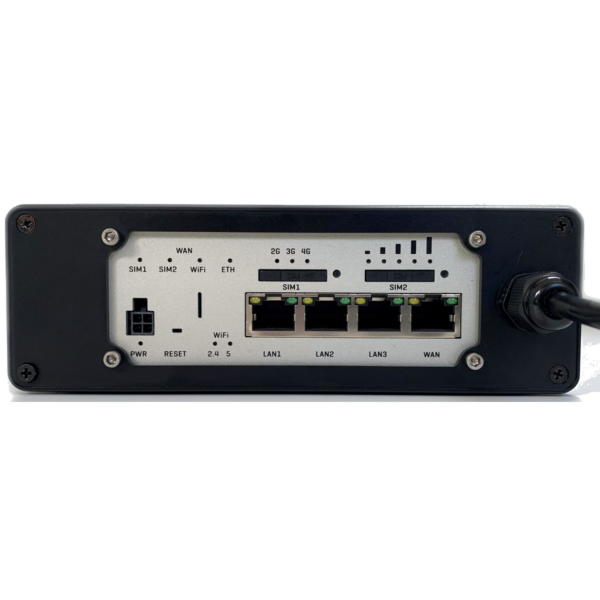

  • 3 x LAN ports
  • 1 x WAN connection for additional internet connection – e.g. B. WL510 High Performance Wifi System
  • Digital input/output connection for IoT/control applications (available from Q3 2021)
  • SMS reception
TECHNICAL SPECIFICATIONS
temperature

Dimensions

•-40 to +75°C

• Dimensions: 68 x 26 x 11 cm
•Weight: 3.8kg
•Protection IPX4

technology

4G/LTE

2G/3G

•4G(LTE) CAT 6 up to 300MB/s
•Modem class 3 (up to 25 dBm)

•Supports LTE FDD bands: B1, B3, B5, B7, B8, B20, B28, B32

•Supports TDD bands: B38, B40, B41
•Dual MIMO antennas
•Single band independent 2.4 & 5 GHz

interfaces •3 x Ethernet port LAN 10/100
•1 x Ethernet port WAN 10/100

• WiFi 802.11b/g/n/ac
