Digital Yacht GPS160 USB

Digital YachtSKU: ZDIGGPS160USB

Price:
Sale price€249,00 EUR Regular price€267,75 EUR

Tax included Shipping calculated at checkout

Wird beim Hersteller für Sie bestellt - Lieferzeit 20-24 Werktage

Description

“The GPS160 USB variant comes with a 5m USB cable. It is self-powered from the USB source (PC, MAC or Linux).”

DESCRIPTION

We are proud to present the GPS160, a new high-performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracy and redundancies.

TriNav technology allows all three systems to be used simultaneously for navigation. The device can also be field programmed for a variety of modes such as individual GNSS operations (e.g. Galileo) as well as output configurations such as update rate, NMEA sentence structure, etc.

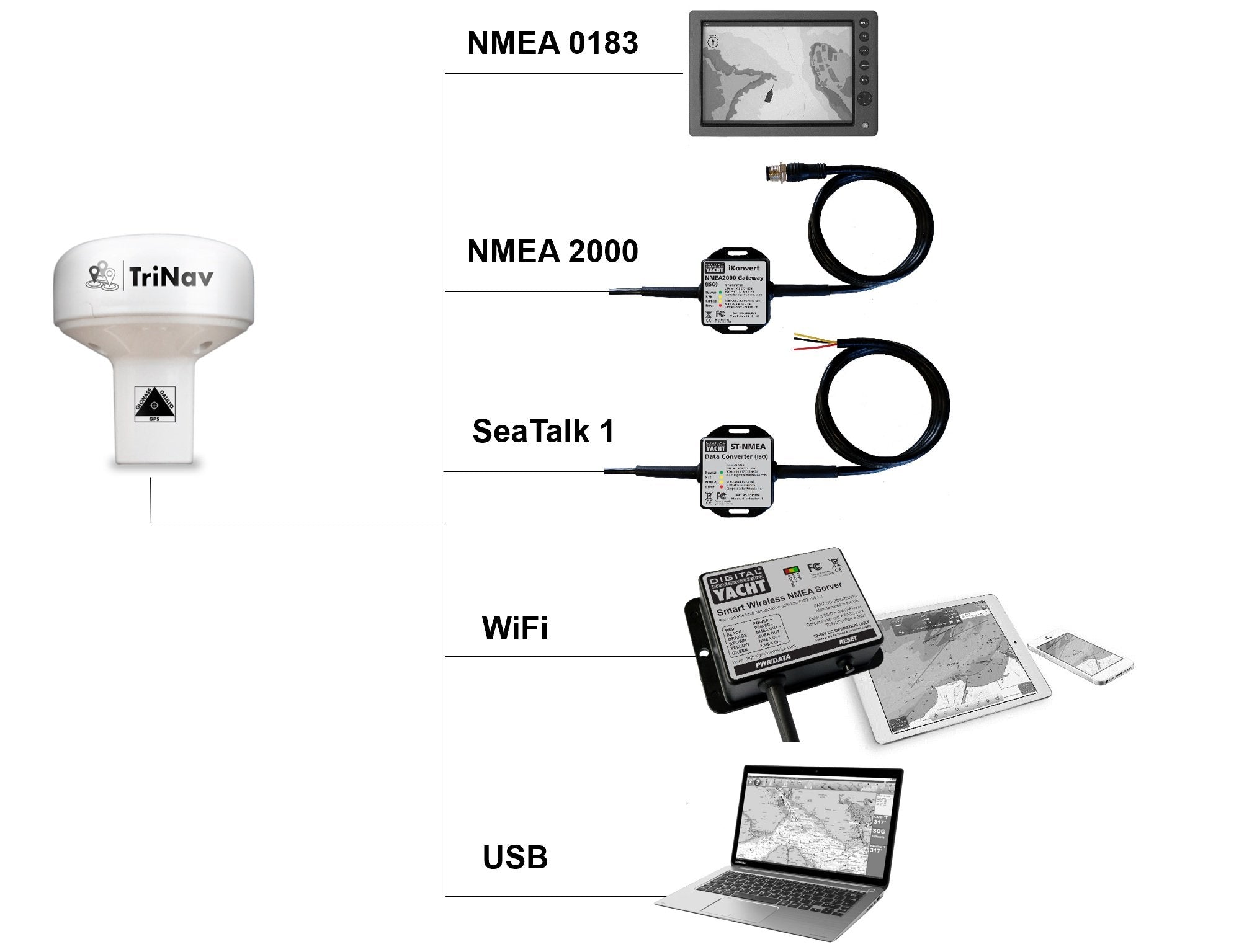

The GPS160 USB variant comes with a 5m USB cable. It is self-powered from the USB source (PC, MAC or Linux). During installation, a virtual COM port is created on the host PC so that navigation programs can receive position data. If a longer cable or the MOB function is required, it is best to use the GPS160 (Standard NMEA Version) with our USB-NMEA adapter cable .

The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to calculate the best possible fix accuracy and reliability.

Galileo is the new Global Navigation Satellite System (GNSS) developed over the last two decades. It connects the GPS and GLONASS systems, providing seafarers with a third reliable source of positioning. It should be fully operational by 2020.

Download the complete information pack by clicking here.

PROPERTIES
  • 72 channel GPS and GnSS position receiver
  • Typically less than 1m accuracy thanks to TriNav technology - combines all satellite data for optimal accuracy
  • Can be configured as a dedicated GPS, Glonass or Galileo device
  • Equipped with a 5M USB cable
  • Compatible with PC/Mac/Linux
  • Up to 18Hz refresh rate (user selectable)
  • Ultra low power consumption at 12V DC
  • Professional system support (ECDIS) with reference record structure (DTM/GBS/GNS/GRS/GSA/GST)
  • Puck installation or fit 3rd party industry standard 1 x 14TPI threaded mount
