Digital Yacht GPS160 Wireless

Digital YachtSKU: ZDIGGPS160WL

Price:
Sale price€309,00 EUR Regular price€351,05 EUR

Tax included Shipping calculated at checkout

Wird beim Hersteller für Sie bestellt - Lieferzeit 20-24 Werktage

Description

"The GPS160 wireless GPS antenna version comes with Digital Yacht NMEA to WiFi gateway for wireless navigation with tablets and iPads."

DESCRIPTION

We are proud to present the GPS160, a new high-performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracy and redundancies.

TriNav technology allows all three systems to be used simultaneously for navigation. The device can also be field programmed for a variety of modes such as individual GNSS operations (e.g. Galileo) as well as output configurations such as update rate, NMEA sentence structure, etc.

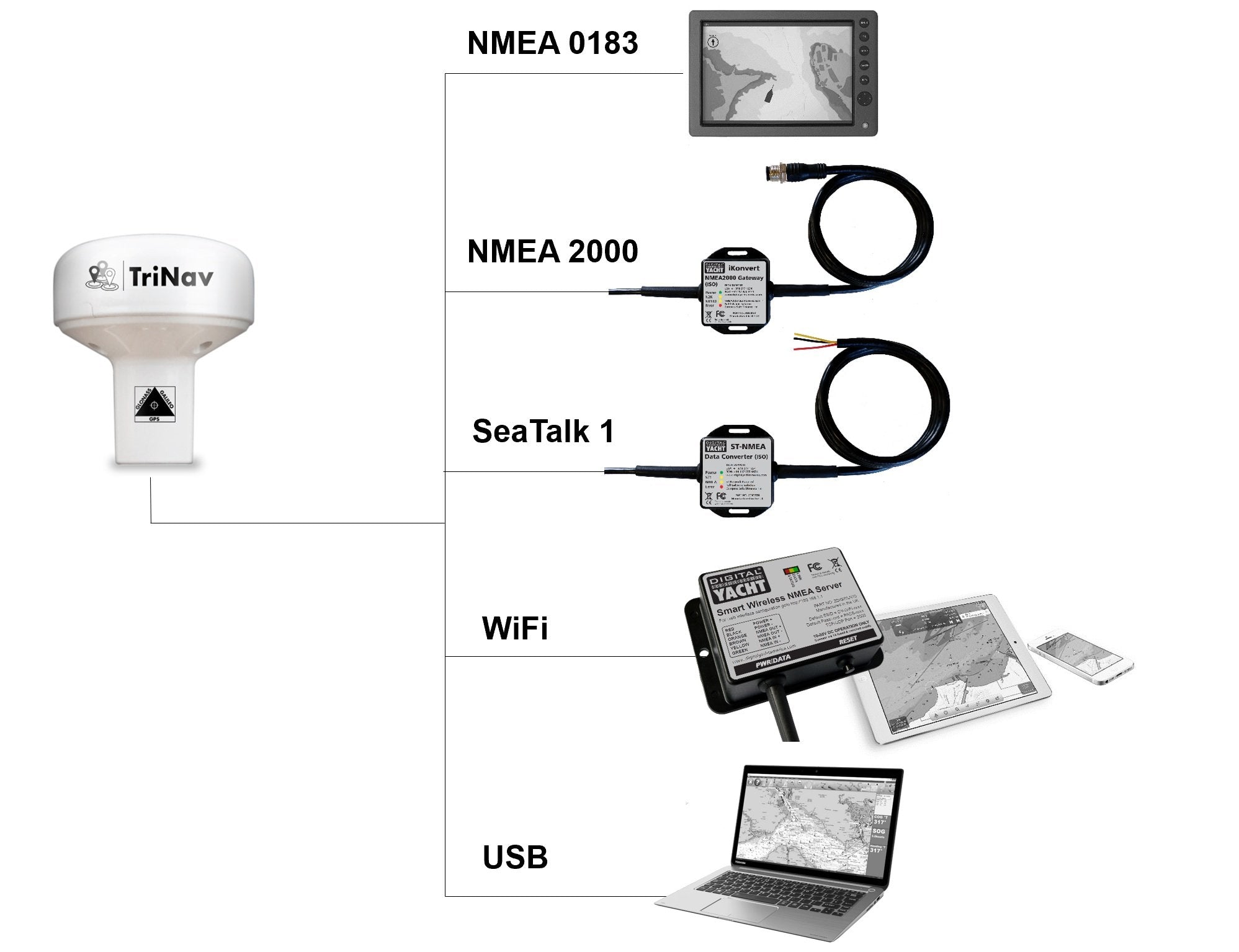

The GPS160 wireless GPS antenna version comes with Digital Yacht NMEA to WiFi gateway for wireless navigation with tablets and iPads. The NMEA to WiFi Gateway creates a secure, password-protected onboard WiFi network to enliven the boat with data. It supports both UDP (for multiple connections) and TCP/IP interfaces for maximum compatibility with apps, allowing you to use a PC at the chart table with an iPad on deck.

The GPS160 also supports an external MOB switch or device. When activated, a 'synthesized' AIS SART MOB message is created on the NMEA output, with MOB identification using a local plotter.

The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to calculate the best possible fix accuracy and reliability.

Galileo is the new Global Navigation Satellite System (GNSS) developed over the last two decades. It connects the GPS and GLONASS systems, providing seafarers with a third reliable source of positioning. It should be fully operational by 2020.

Download the complete information pack by clicking here.

PROPERTIES
  • 72 channel GPS and GnSS position receiver
  • Typically less than 1m accuracy thanks to TriNav technology - combines all satellite data for optimal accuracy
  • Can be configured as a dedicated GPS, Glonass or Galileo device
  • Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection
  • Supplied with Digital Yacht Smart WLN10 NMEA to WiFi gateway for tablet navigation
  • Supports both UDP (for multiple connections) and TCP/IP interfaces
  • Set baud rate, SSID and password via Smart WLN10 web interface
  • Up to 18Hz refresh rate (user selectable)
  • 10m cable
  • Ultra low power consumption at 12V DC
  • MOB switch/system input – when activated, synthetic AIS MOB generates NMEA output to activate MOB position on chartplotter
  • Professional system support (ECDIS) with reference record structure (DTM/GBS/GNS/GRS/GSA/GST)
  • Puck installation or fit 3rd party industry standard 1? x 14TPI threaded mount
