Digital Yacht iKonvert – NMEA2000 to USB Converter

Digital YachtSKU: ZDIGIKVTUSB

Price:
Sale price€189,00 EUR Regular price€232,05 EUR

Tax included Shipping calculated at checkout

Wird beim Hersteller für Sie bestellt - Lieferzeit 20-24 Werktage

Description

"One NMEA2000 converter for all your data needs."

DESCRIPTION

The iKonvert NMEA2000-0183 converter is an intelligent and flexible gateway that allows software applications to read or write NMEA2000 data. This is done either as RAW binary PGN data for ultimate analysis and control, or converted to the older and more widely supported NMEA0183 data.

Any popular marine navigation application running on PC/MAC/LINUX computers can read NMEA0183 data. For all of these programs, iKonvert offers a simple, reliable and cost-effective way to access the navigation data on a NMEA2000 network. Simply set the DIP switches in iKonvert to the desired data mode and iKonvert will extract the selected data from the NMEA2000 network. These are then made available to your ship application in a format and baud rate they support.

For developers developing new applications or who know how to decode NMEA2000 PGNs, iKonvert can easily be switched to "RAW mode". This allows the data to be read and written in a simple serial data format. We publish this data format on our iKonvert Github page . No special libraries or proprietary code are required to integrate iKonvert. This very fact has piqued the interest of a number of developers, so it is already compatible with CanBoat and the popular Signal K Node Server.

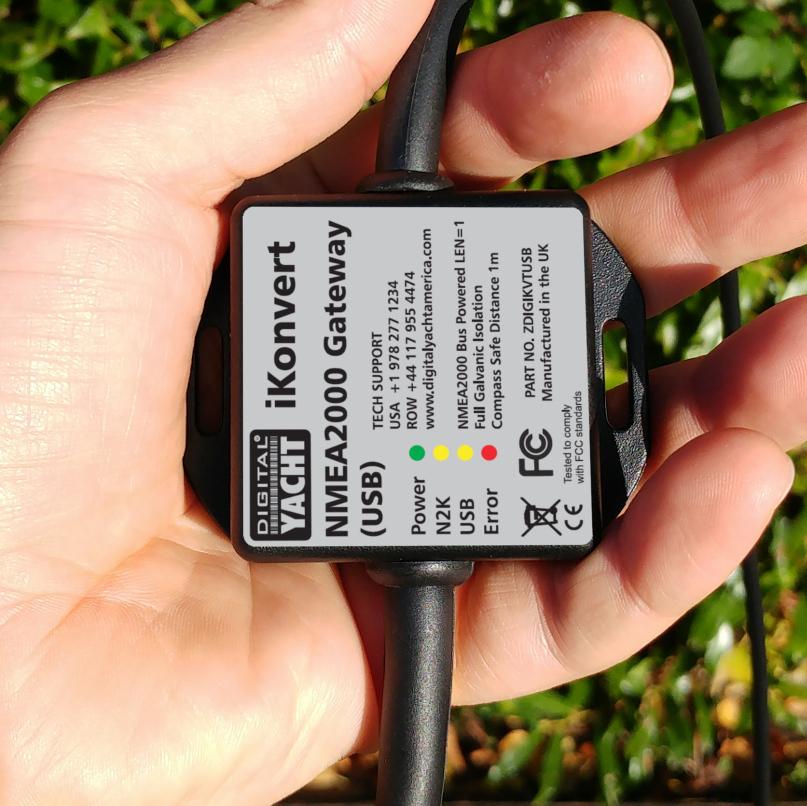

Digital Yacht's iKonvert converter is housed in a compact and easy to assemble housing, with an integrated USB cable and a standard NMEA2000 micro drop cable (male). iKonvert works with a baud rate of 230KB in "RAW mode" and 4.8KB, 38.4KB or 115KB in NMEA0183 conversion mode and offers a complete galvanic isolation between USB interface and NMEA2000 network. All modes can be easily selected via the internal DIP switches without the need for special configuration software or firmware changes.

iKonvert's USB interface features an FTDI chip with the most reliable and compatible USB drivers for all major operating systems (Windows/Mac/LINUX/Android), while an ISO version of iKonvert will be available shortly for direct connection between NMEA2000 and NMEA0183 systems it is released.

PROPERTIES
  • Small but powerful bidirectional NMEA2000 converter
  • Power supply from the NMEA2000 network
  • High speed USB 2.0 USB interface (FTDI)
  • Compatible with Windows, OSX, LINUX and Android
  • Can be configured to operate in "Raw Mode" (Binary PGN data).
  • Converts all important navigation data.
  • Integrated USB (Type A) and NMEA2000 micro (male) cables
  • Easy configuration of data modes via DIP switches
  • Full galvanic isolation
