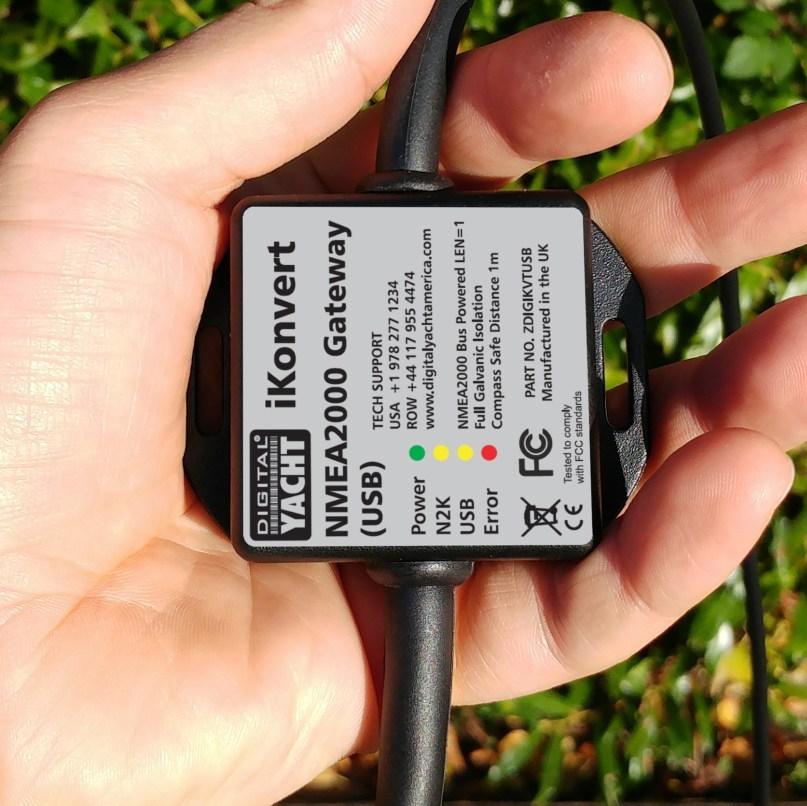

Digital Yacht iKonvert – NMEA2000 to NMEA0183 converter

Digital YachtSKU: ZDIGIKVT

Price:
Sale price€189,00 EUR Regular price€232,05 EUR

Tax included Shipping calculated at checkout

Wird beim Hersteller für Sie bestellt - Lieferzeit 20-24 Werktage

Description

"One NMEA2000 to NMEA0183 gateway/converter for all your data"

DESCRIPTION

The iKonvert NMEA2000-0183 converter is a smart and flexible gateway to enable new NMEA2000 devices to communicate with old NMEA0183 devices. The converters are bi-directional for both adding data from legacy NMEA0183 sensors to your NMEA2000 network and adding a new single NMEA2000 MFD. This allows GPS and navigation data to be sent and converted to your legacy NMEA0183 VHF and autopilot. The necessary data conversions happen precisely and intelligently.

There are many applications for NMEA2000 to NMEA0183, with a plethora of different makes and models of equipment that may need to be interconnected. We developed iKonvert to solve as many unsolved situations of the kind as possible. To do this, we have built a simple but effective mode selection method into iKonvert via a set of DIP switches. Just remove two screws, open the iKonvert box and use a small screwdriver. After that, choose the mode you need. The next time iKonvert takes over the conversions you selected, it will automatically do the conversions you selected.

A number of modes have already been defined including: Heading, Sounder, AIS, GPS, Wind, Instruments and a Data Gateway mode that automatically sets the necessary conversions and the baud rate that iKonvert uses. In addition, if you need a mode that we haven't defined yet, let us know. We might consider including this one.

Digital Yacht's iKonvert Gateway is housed in a compact and easy to assemble housing. Supplied with an integrated NMEA0183 cable and a standard NMEA2000 micro drop cable (masc.). With its power from the NMEA2000 network and full galvanic isolation between the NMEA0183 and NMEA2000 networks, iKonvert is the perfect solution for all NMEA conversions.

For customers who want to take this converted data to a computer, the iKonvert USB Converter comes with a built-in USB cable that works with all major operating systems.

FUNCTIONS
  • Small but powerful bi-directional NMEA2000 to NMEA0183 converter
  • Powered by the NMEA2000 network
  • Opto-isolated NMEA0183 interface
  • Converts AIS, GPS, Navigation, Instrument and XDR data
  • "Real Life" data modes for most common installations
  • Easy configuration of data modes with DIP switches
  • Integral NMEA0183 cables and NMEA2000 Micro (Masc.) cables
  • Full galvanic isolation
