Victron Easysolalar-II 48/5000/70-50 mpt 250/100 GX

Victron EnergySKU: PMP482507010

Price:
Sale price€1.533,78 EUR Regular price€2.377,62 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

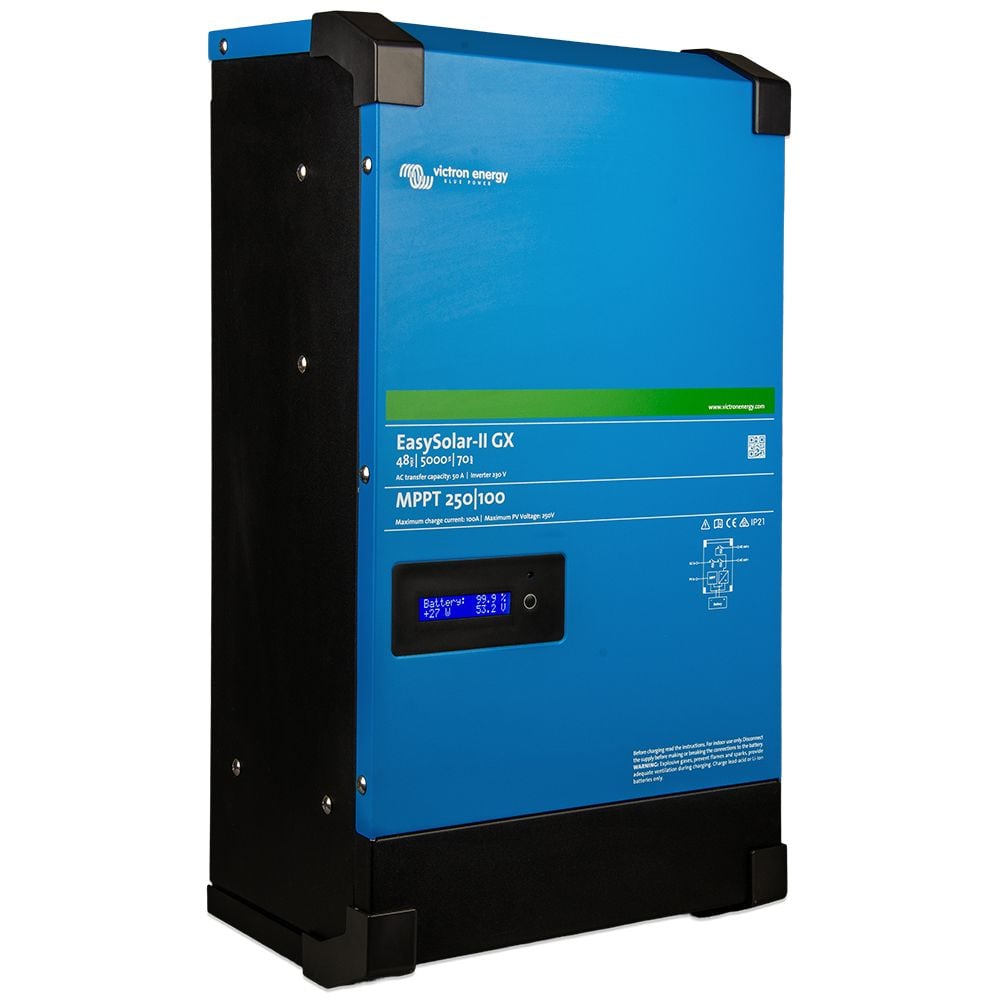

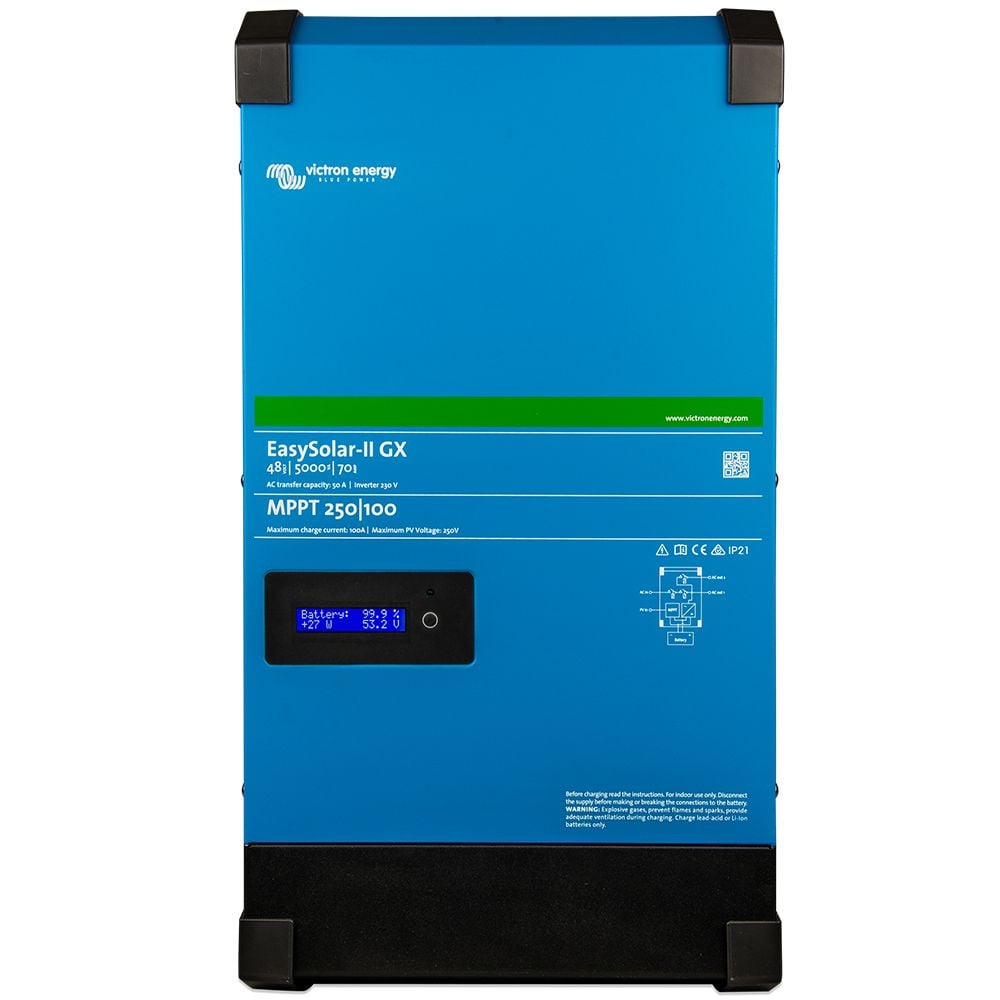

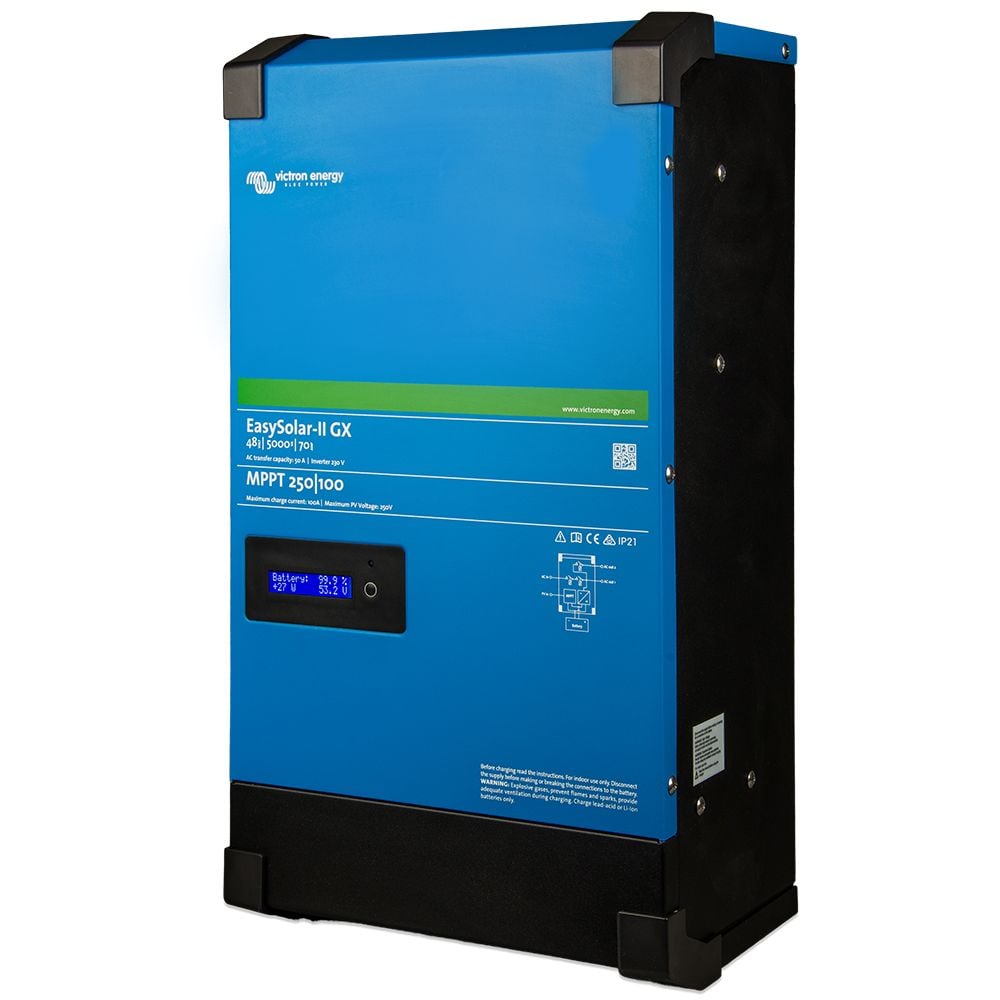

The Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX from Victron Energy combines an inverter/charger, a solar charge controller, and a GX device. The elements are pre-wired and integrated into a single unit. This significantly simplifies most installations and saves time and money.

Components
- MultiPlus II inverter/charger
- SmartSolar MPPT 250/100-Tr solar charge controller
- GX device with 2x 16 character display


Solar charging controller: SmartSolar MPPT 250/100-Tr
The integrated charge controller is part of Victron's SmartSolar series and guarantees maximum yields with its ultrafast MPPT technology. Especially under overcast skies, when light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Critical partial shading of the solar modules is detected by the MPPT controller and a new operating point is sought, ensuring high yields can still be achieved even under the most adverse conditions. The DC output of the SmartSolar MPPT is connected in parallel with the DC connection of the MultiPlus-II inverter/charger. The MultiPlus-II's on/off mechanism also controls the SmartSolar.

MultiPlus II 48/5000/70-50 inverter and battery charger

The Multiplus-II 48/5000/70-50 from Victron is a combination of a 4000 W sine wave inverter and battery charger. The smart integrated battery charger delivers an impressive 70 A, allowing batteries to be charged extremely quickly when shore/grid power is available. The Multiplus's integrated sine wave voltage converter transforms the 48 V direct current from the battery into 230 V alternating current. Thanks to the true sine wave, the voltage quality is perfect even for sensitive electronic devices.

GX device
The integrated GX device includes:
- A BMS CAN interface. This can be used to connect to a compatible battery managed via the CANbus. Please note that this is not a VE.CAN compatible connector.
- a USB port
- an Ethernet port
- a VE.Direct connection
The GX device controls the MultiPlus-II and the SmartSolar MPPT with one VE.Bus and one VE.Direct connection each.

Display and WiFi
The display shows parameters for the battery, inverter, and solar charge controller. The parameters can be accessed using a smartphone or other Wi-Fi-enabled device. Wi-Fi can also be used to set up the system and change settings.

The following features characterize the high-end device:
- 4000 W continuous AC power, 9000 W peak power
- 48 V battery system voltage
- Pure sine wave inverter, suitable as UPS
- max. 5800 W PV power
- Main battery charging with up to 70 A
- Transfer switch with 50 A
- Color Control Display for settings and display of system information

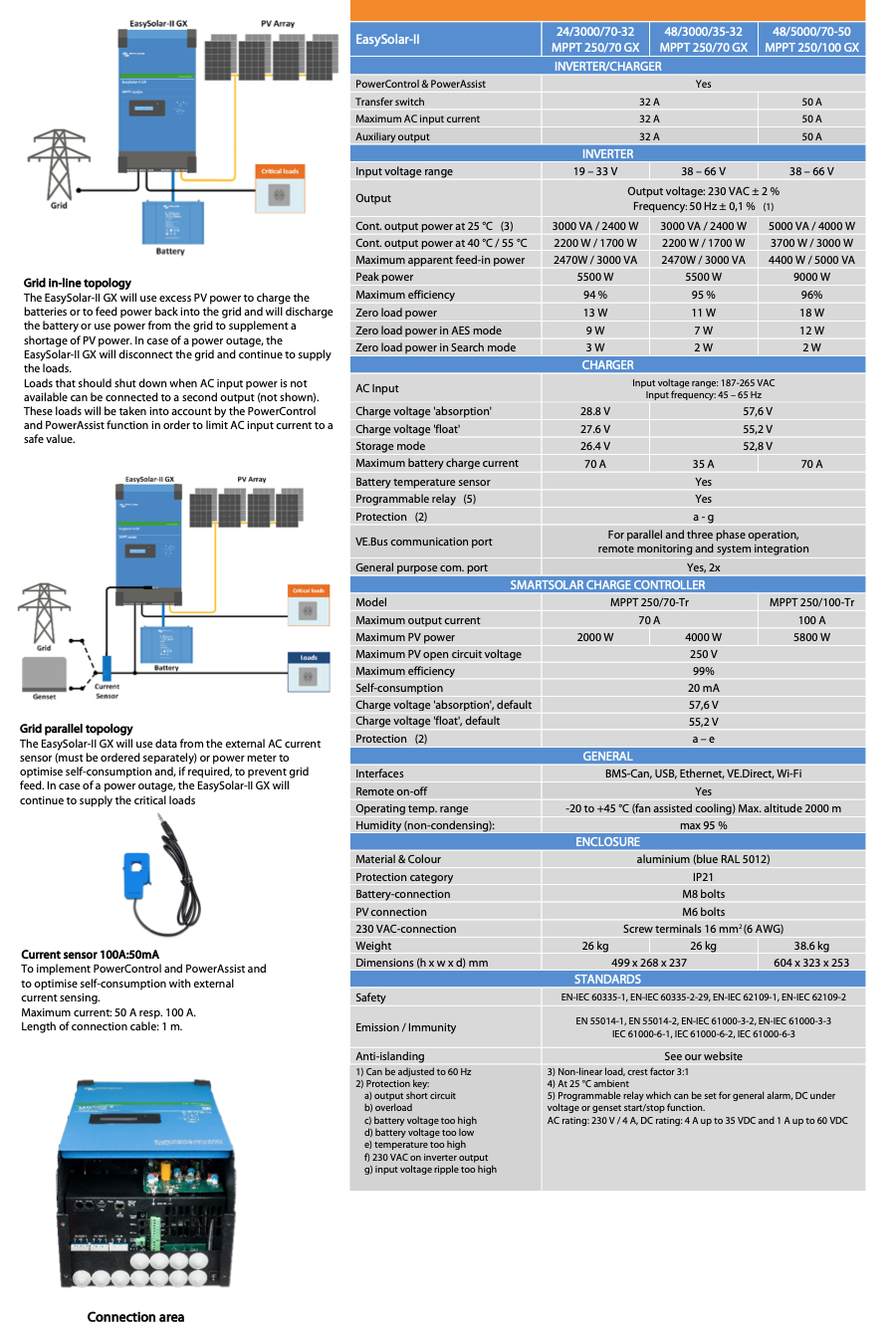

Technical data:
Inverter:
- Input voltage 38-66V
- Output voltage 230 VAC
- continuous output power 4000W
- Peak power 10000W
- Transfer switch 100A
- Max. efficiency 95%

Charger:
- Input voltage: 187-265 VAC
- Input frequency 45-65 Hz
- Constant charging voltage 57.6V
- Charging current 70A
Solar charge controller:
- MPPT 150/100-MC4
- Max. output current 100A
- Max. PV power 5800W
- Max. efficiency 98%
- Constant charging voltage 57.6V
Operating temperature range: -40°C - +65°C
Protection class: IP21
Dimensions: 604 x 323 x 253mm
Weight: 39 kg
