FORSTER 100Ah 12.8V LiFePO4 Premium Lithium Battery | 200A-BMS-2.0 | IP67


Price:
Sale price€903,21 EUR Regular price€1.090,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

 Now with an 8-year warranty!

The highest quality and reliability for virtually all applications, whether caravan, marine, or energy storage. The latest cell technology and optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of measurement and consumption values ​​is possible thanks to a measuring shunt and Bluetooth.

TOP features

100% usable capacity
Our premium battery series can be used at 100% of its stated capacity without causing damage. Conventional lithium batteries can often only be discharged to 92-95%.

Multi-Charge Mode (MCM)
With Multi-Charge Mode (MCM), you can continue using 99% of devices such as boosters, shore chargers, or solar controllers. This saves you additional costs and preserves the manufacturer's warranty on new vehicles.

Bluetooth measuring shunt
All of our X-Series batteries are optionally available with a 500A Bluetooth measuring shunt to display the exact fill level via APP.

Built-in complete protection / Safety first
The integrated, intelligent battery management system (BMS) protects the battery and ensures completely safe use.

Big Power Prismatic Cells (BPC)
Unlike conventional batteries, which consist of many small, interconnected cells, FORSTER relies on a few, larger battery cells. The reduced complexity results in increased performance, durability, and safety.

  • Maximum space utilization
  • Few cell connectors
  • Lower weight
  • Quick assembly
  • High safety and durability
  • High reliability

200A high-load power battery management system (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.

Important functions of the BMS:

  • Overload protection
  • Deep discharge protection
  • Surge protection
  • Active cell balancing
  • Complete charging control
  • Multi-Charge Mode (MCM)
  • BMS temperature protection
  • Short-circuit protection

Protection class IP67
The housing of the premium battery is completely glued to enable flexible use even under damp or wet conditions.

Best warranty processing 8-year warranty
FORSTER INDIVIDUAL BATTERIES offers an 8-year warranty on its batteries. Even after the warranty period, our service department is available to test and repair your battery. Our modular design and the use of large cells make this easy, quick, and cost-effective.

  • 8-year manufacturer's warranty
  • Fast warranty processing
  • Fast and efficient
  • Affordable even after the warranty period
  • You can find suitable pole adapters here.

    Technical data

    Data / Order No.: F12-100X
    EAN 4251847300051
    capacity 100Ah
    Replaces lead-gel-AGM battery 12V/200Ah
    Nominal voltage 12.8V
    Energy content 1280Wh
    Operating voltage 10.5V - 14.6V
    Application parallel circuit Yes, any number of the same type can be used in parallel!
    Application series circuit Yes, serial up to 24V, 36V and maximum 48V possible!
    Cell technology Lithium LiFePO4
    Cell type BPC Big-Prismatic-Power high-load cells- GradeAA
    Charging programs CCCV / IU / IUoU / Lead-acid
    Final charging voltage 14.2V - 14.6V
    Trickle charging 13.3 - 13.8V
    Maximum charging current 100A
    Recommended charging current 50A
    Max. discharge current / 5 sec. 400A
    Continuous discharge current 200A
    Battery shutdown 10.5V
    BMS Battery Management System integrated
    Remote monitoring optional optionally available with 500A Bluetooth measuring shunt and free APP
    Remote monitoring/measuring shunt integrated F12-100XB
    Protection class IP67
    Cycles / lifetime at 50% DoD >8000
    Cycles / lifetime at 80% DoD >6000
    Cycles / lifetime at 90% DoD >5000
    Temperature when charging 0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS
    Temperature at discharge -20°C to +60°C
    Recommended storage temperature -10°C to 30°C
    storage 80 - 100% charged / when not in use, charge battery every 6 months
    Self-discharge 1 - 2% / month
    Connection M8
    Positive pole arrangement front left
    End polarity M8 internal thread
    Preparation for shunt assembly n/a
    Emergency stop switch installed n/a

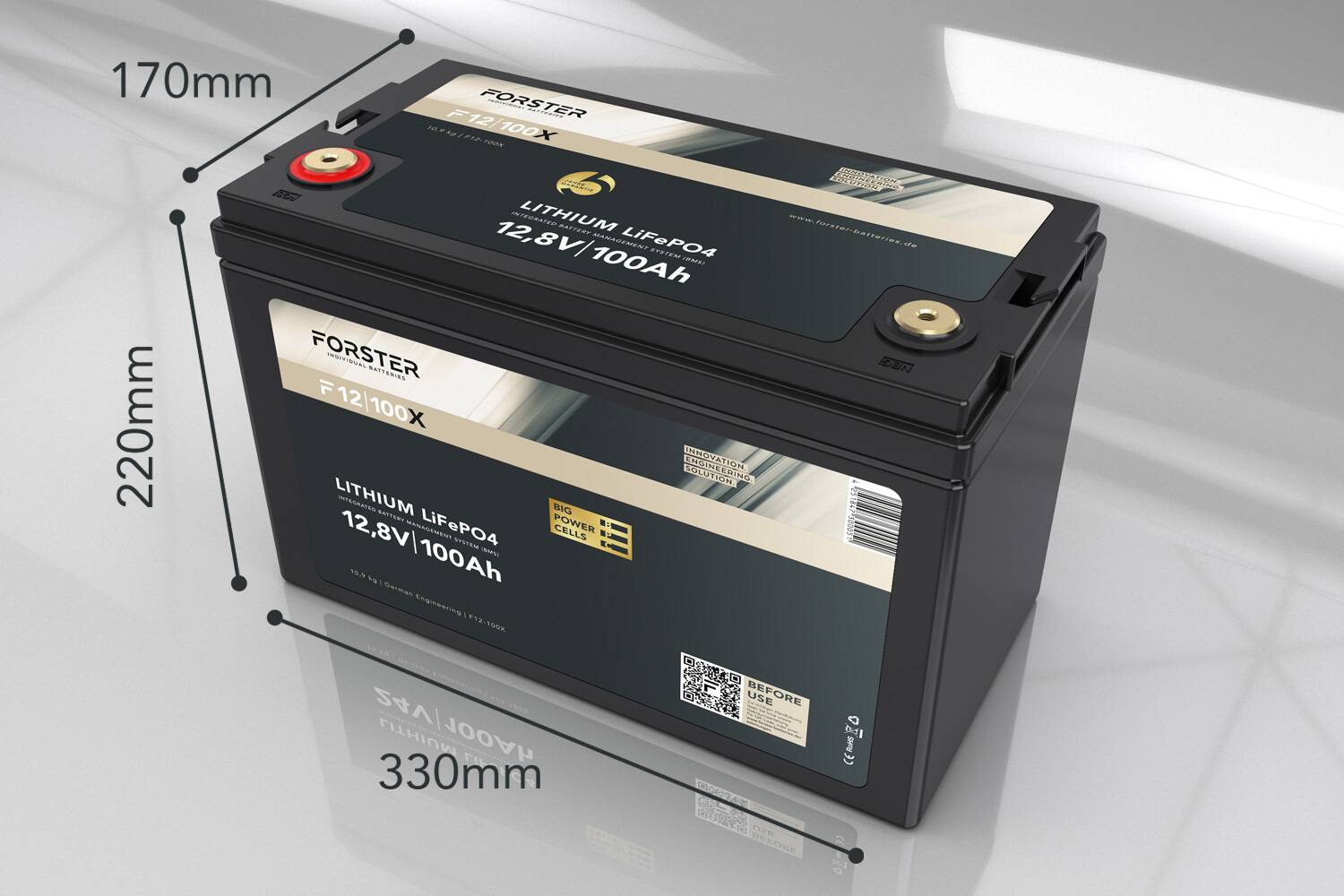

    length 330mm
    Width 170mm
    Height 220mm
    Installation position any position, standing, lying, sideways, upright, upside down
    CANbus interface n/a
    Weight 10.9kg
    guarantee 8 years
    Certification UN38.3 | MSDS | CE | RoHS
