FORSTER 100Ah 25.6V LiFePO4 premium battery | 200A-BMS-2.0 | 2560Wh | IP67


Price:
Sale price€1.581,51 EUR Regular price€1.890,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

 Now with an 8-year warranty!

The highest quality and reliability for virtually all applications, whether caravan, marine, or energy storage. The latest cell technology and optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of measurement and consumption values ​​is possible thanks to a measuring shunt and Bluetooth.

TOP features

100% usable capacity
Our premium battery series can be used at 100% of its stated capacity without causing damage. Conventional lithium batteries can often only be discharged to 92-95%.

Multi-Charge Mode (MCM)
With Multi-Charge Mode (MCM), you can continue using 99% of devices such as boosters, shore chargers, or solar controllers. This saves you additional costs and preserves the manufacturer's warranty on new vehicles.

Bluetooth measuring shunt
All of our X-Series batteries are optionally available with a 500A Bluetooth measuring shunt to display the exact fill level via APP.

Built-in complete protection / Safety first
The integrated, intelligent battery management system (BMS) protects the battery and ensures completely safe use.

Big Power Prismatic Cells (BPC)
Unlike conventional batteries, which consist of many small, interconnected cells, FORSTER relies on a few, larger battery cells. The reduced complexity results in increased performance, durability, and safety.

  • Maximum space utilization
  • Few cell connectors
  • Lower weight
  • Quick assembly
  • High safety and durability
  • High reliability

200A high-load power battery management system (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.

Important functions of the BMS:

  • Overload protection
  • Deep discharge protection
  • Surge protection
  • Active cell balancing
  • Complete charging control
  • Multi-Charge Mode (MCM)
  • BMS temperature protection
  • Short-circuit protection

Protection class IP67
The housing of the premium battery is completely glued to enable flexible use even under damp or wet conditions.

Best warranty processing 8-year warranty

FORSTER INDIVIDUAL BATTERIES offers an 8-year warranty on its batteries. Even after the warranty period, our service department is available to test and repair your battery. Our modular design and the use of large cells make this easy, quick, and cost-effective.

  • 8-year manufacturer's warranty
  • Fast warranty processing
  • Fast and efficient
  • Affordable even after the warranty period
You can find suitable pole adapters here.

Technical data

Data / Order No.: F24-100X
EAN 4251847300129
capacity 100Ah
Replaces lead-gel-AGM battery 24V/200Ah
Nominal voltage 25.6V
Energy content 2560Wh
Operating voltage 21.0V - 29.2V
Application parallel circuit Yes, any number of the same type can be used in parallel!
Application series circuit yes, max. 48V
Cell technology Lithium LiFePO4
Cell type BPC Big-Prismatic-Power high-load cells- GradeAA
Charging programs CCCV / IU / IUoU / Lead-acid
Final charging voltage 28.4 - 29.2V
Trickle charging 26.6 - 27.6V
Maximum charging current 100A
Recommended charging current 50A
Max. discharge current / 5 sec. 200A
Continuous discharge current 100A
Battery shutdown 21.0V
BMS Battery Management System integrated
Remote monitoring optional optionally available with 500A Bluetooth measuring shunt and free APP
Remote monitoring/measuring shunt integrated F24-100XB
Protection class IP67
Cycles / lifetime at 50% DoD >6000
Cycles / lifetime at 80% DoD >4000
Cycles / lifetime at 90% DoD >3000
Temperature when charging 0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS
Temperature at discharge -20°C to +60°C
Recommended storage temperature -10°C to 30°C
storage 80 - 100% charged / when not in use, charge battery every 6 months
Self-discharge 1 - 2% / month
Connection M8
Positive pole arrangement front left
End polarity M8 internal thread
Preparation for shunt assembly n/a
Emergency stop switch installed n/a

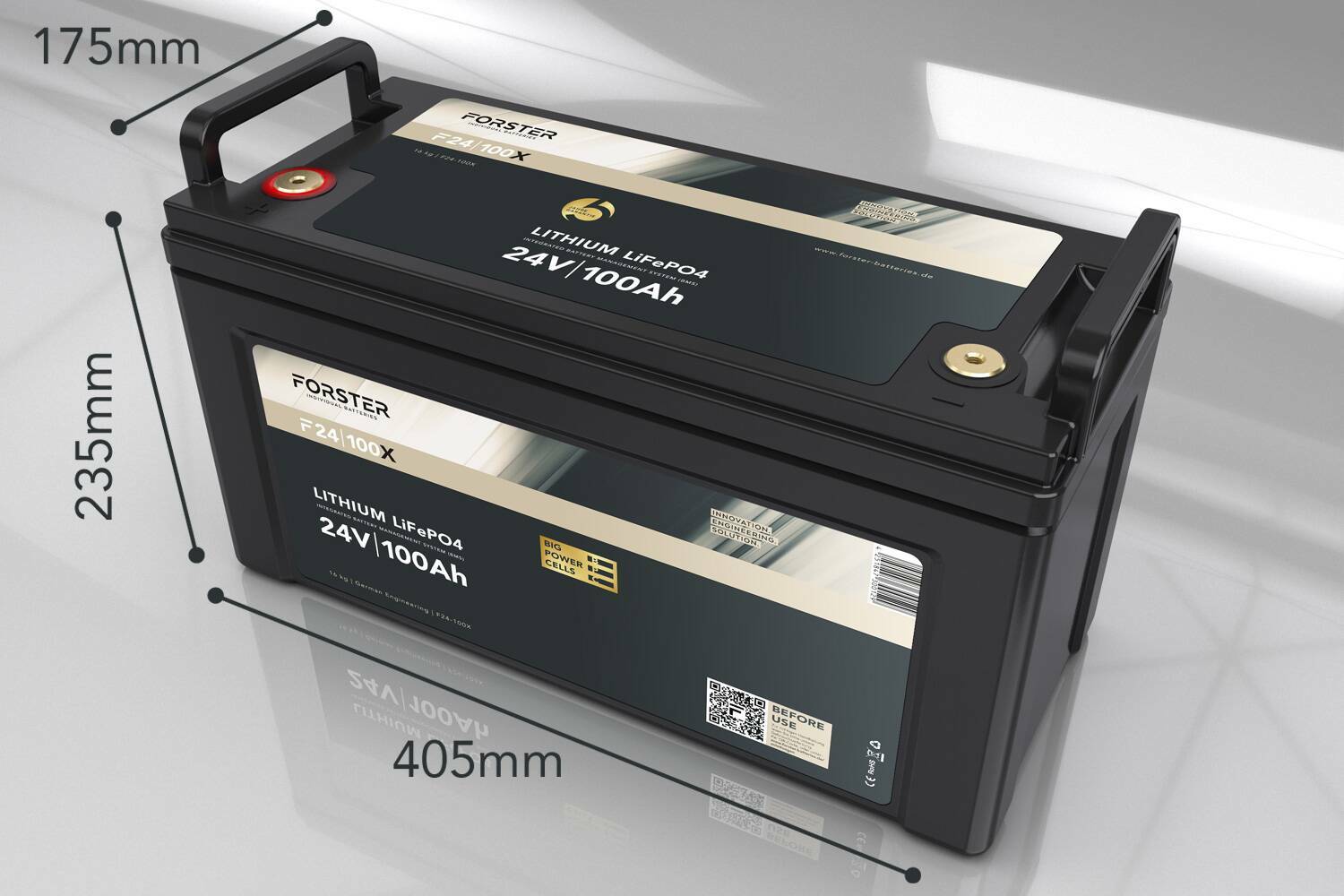

length 405mm
Width 175mm
Height 235mm
Installation position any position, standing, lying, sideways, upright, upside down
CANbus interface n/a
Weight 16.0kg
guarantee 8 years
Certification UN38.3 | MSDS | CE | RoHS

GPSR Information

Hersteller
Name: FORSTER INDIVIDUAL BATTERIES
Anschrift: Commercial Street 11
PLZ, Ort: 85652, Pliening
Land: Germany
Email: info@forster-batteries.de
Web: https://www.forster-batteries.de/
