FORSTER 100Ah 38.4V Lithium LiFePO4 Fishing Battery BMS Smart Bluetooth IP67


Price:
Sale price€1.724,31 EUR Regular price€1.990,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Technical data

Data / Order No.: F36-100FB
EAN 4251847300617
capacity 100Ah
Replaces lead-gel-AGM battery 36V/200Ah
Nominal voltage 38.4V
Energy content 3840Wh
Operating voltage 33.0V - 43.8V
Application parallel circuit yes, max. 4 pieces of the same type possible
Application series circuit no
Cell technology Lithium LiFePO4
Cell type PPC Prismatic Power Cells
Charging programs CCCV / IU / IUoU / Lead-acid
Final charging voltage 42.6 - 43.8V
Trickle charging 42.6 - 43.8V
Max. charging current / charging time 100A / 60min
Recommended charging current 50A
Max. discharge current / 3 sec. 300A
Continuous discharge current 100A
Battery shutdown 30.0V
BMS Battery Management System integrated
Remote monitoring integrated with APP Yes
Bluetooth Yes, built-in
Protection class IP67 / waterproof
Cycles / lifetime at 50% DoD >5000
Cycles / lifetime at 80% DoD >3500
Cycles / lifetime at 90% DoD >3000
Temperature when charging 0°C to 50°C
Temperature at discharge -20°C to +60°C
Recommended storage temperature -5°C to 25°C
storage 60 - 80% charged / when not in use, charge battery every 6 months
Self-discharge 2-3% / month
Connection M8 internal thread
Positive pole arrangement front left
End polarity M8 internal thread

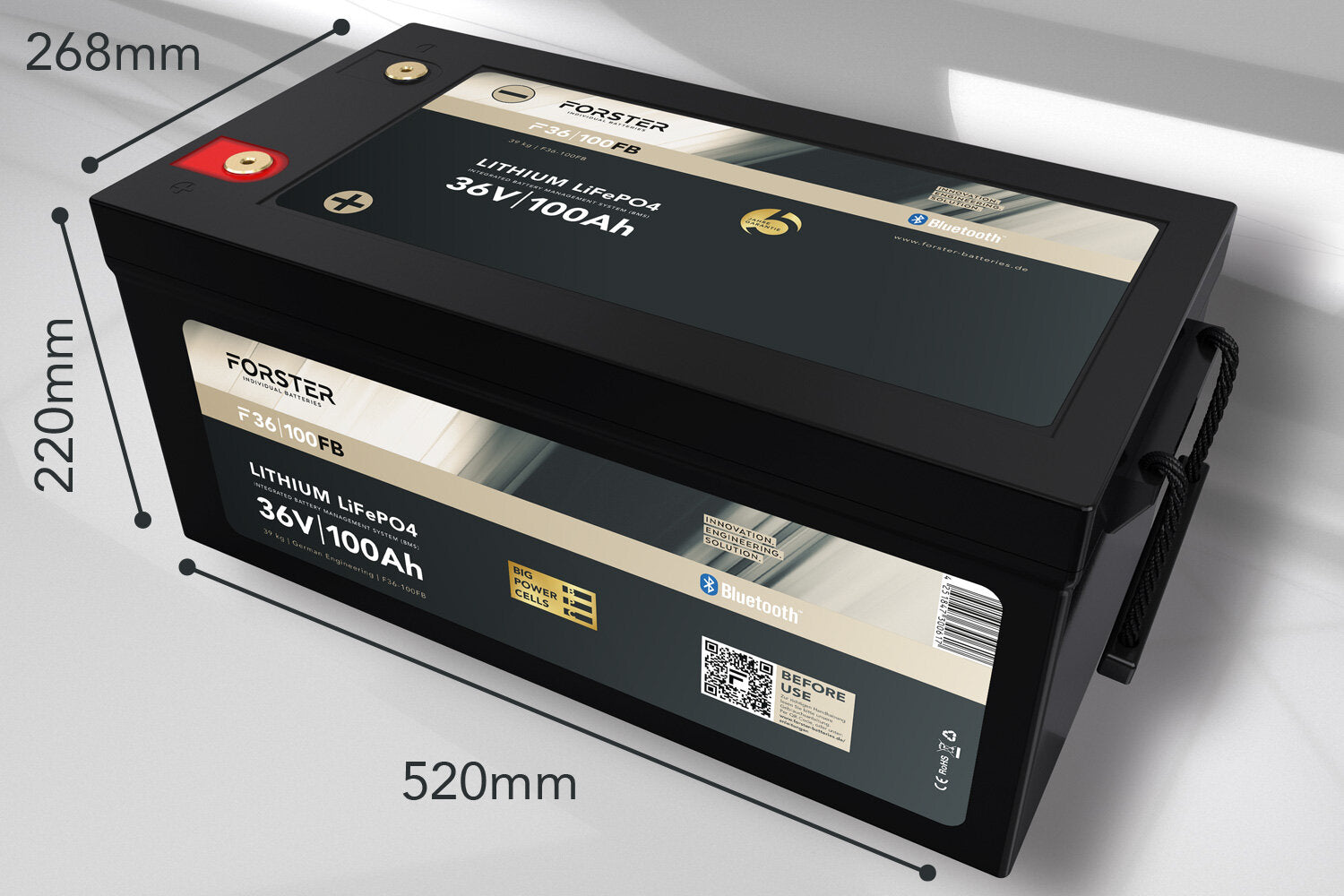

length 520mm
Width 268mm
Height 220mm
Installation position any position, standing, lying, sideways, upright, upside down
Weight 39.0kg
guarantee 3 years
Certification UN38.3 | MSDS | CE | RoHS
