FORSTER 100Ah 38.4V Lithium LiFePO4 Premium Battery 200A-BMS-2.0 3840Wh IP67

Now with an 8-year warranty!

You can find suitable pole adapters here

You can find all further information here.

Technical data

Data / Order No.:	F36-100X
EAN

4251847300143

capacity

100Ah

Replaces lead-gel-AGM battery

36V/200Ah

Nominal voltage

38.4V

Energy content

3840Wh

Operating voltage

31.5V - 43.8V

Application parallel circuit

Yes, any number of the same type can be used in parallel!

Application series circuit

no

Cell technology

Lithium LiFePO4

Cell type

BPC Big-Prismatic-Power high-load cells- GradeAA

Charging programs

CCCV / IU / IUoU / Lead-acid

Final charging voltage

42.6 - 43.8V

Trickle charging

39.9 - 41.4V

Maximum charging current

100A

Recommended charging current

50A

Max. discharge current / 5 sec.

200A

Continuous discharge current

100A

Battery shutdown

31.5V

BMS Battery Management System

integrated

Remote monitoring optional

optionally available with 500A Bluetooth measuring shunt and free APP

Remote monitoring/measuring shunt integrated

F36-100XB

Protection class

IP67

Cycles / lifetime at 50% DoD

>6000

Cycles / lifetime at 80% DoD

>4000

Cycles / lifetime at 90% DoD

>3000

Temperature when charging

0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS

Temperature at discharge

-20°C to +60°C

Recommended storage temperature

-10°C to 30°C

storage

80 - 100% charged / when not in use, charge battery every 6 months

Self-discharge

1 - 2% / month

Connection

M8

Positive pole arrangement

Front right

End polarity

M8 internal thread

Preparation for shunt assembly

n/a

Emergency stop switch installed

n/a

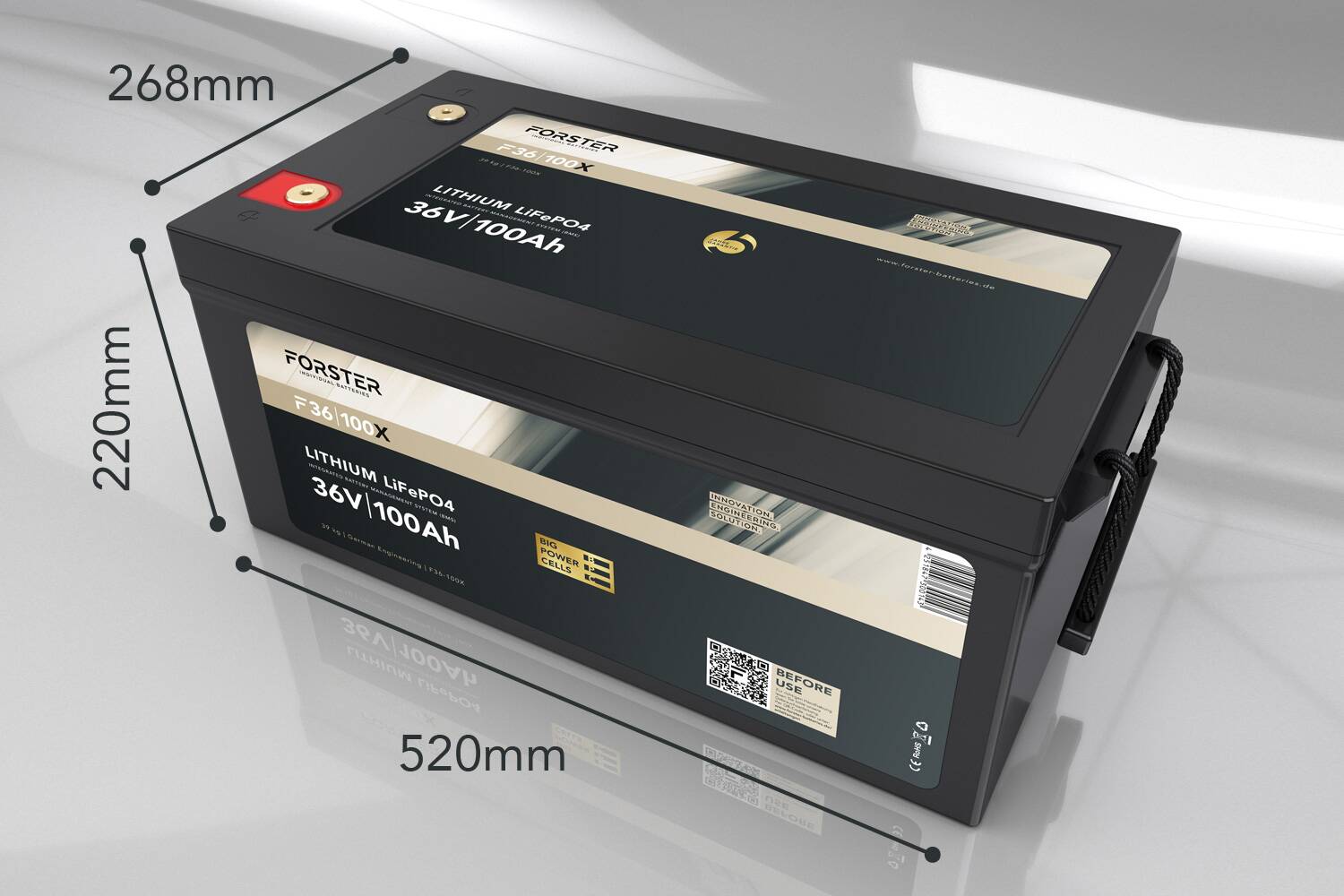

length

520mm

Width

268mm

Height

220mm

Installation position

any position, standing, lying, sideways, upright, upside down

CANbus interface

n/a

Weight

30.0kg

guarantee

8 years

Certification

UN38.3 | MSDS | CE | RoHS
