Description
NOVELTY!
Forster Lifepo4 Smart Bluetooth 12.8V 200AH with heating
High-quality lead battery replacement with longer lifespan!
With the lithium-iron phosphate technology, previous lead, gel and AGM batteries can be replaced quickly and easily. The specified capacity is almost fully usable and the weight is up to 75% lower than with a comparable lead battery.
Another great advantage is the low self-discharge, which simplifies and extends the warehouse or standing time. Even if the available capacity is almost fully removed, the lithium technology with 3000 cycles enables a 7-time lifespan than previous batteries.
The standard battery series for 12V, 24V and 36V installations is offered. Both the parallel circuit for the increase in capacity and the series circuit for voltage increase up to max. 48V is possible.Multi-Charge fashion (MCM) / compatible with common chargers
So far, lithium batteries have only been loaded with lithium chargers. This also requires a change of chargers when replacing the regular batteries to lithium. With the Forster Multi-Charge-Mode software (MCM) you can continue to use 99% of the devices such as booster, land charger or solar controller. This saves you additional costs and receives the manufacturer's guarantee for new vehicles.
Bluetooth monitoring / charging state display (SoC)
Batteries with integrated Bluetooth monitoring enable you to display the most important battery data on your smartphone or tablet. The free "Forster Smart Connect" app shows you the following data in real time:
- Calculation of the battery
- Remaining term with current consumption
- Tension of the battery
- Nominal capacity of the battery
- Charging and unloading flow
- Temperature of the battery
- Cycling and unloading cycles
- Warning notification of limit values
The latest lithium-iron phosphate technology offers a high degree of self-safety, so that a risk of explosion is excluded even under the most extreme conditions. A LIFEPO4 battery consists of individual cells connected in series and a battery management system (BMS). The BMS safely monitors and protects the battery cells when charging and unloading. The standard BMS from Forster takes over the following safety functions:
Product quality
The independent German development of the battery management system is the basis for our quality standards. In addition, Forster individual batteries not only checks and documents in the production but also all batteries on the shipping day again before delivery.
5 year guarantee
As a manufacturer, Forster Individual Batteries grants a 5 -year guarantee on the battery advertised with the promise of guarantee.
You can find suitable polabapter here and more information here.
Technical specifications
Data / order no.:
F12-200FBSH
EAN
4251847301065
capacity
200Ah
Replaced lead-gel-agm battery
12V/400AH
nominal voltage
12.8V
Energy content
2560Wh
Operating voltage
11.0V - 14.6V
Application in parallel circuit
Yes, max. 4 pieces of the same type possible
Application of series circuit
Yes, 24V, 36V and a maximum of 48V possible
Cell technology
Lithium lifepo4
Cell type
PPC Prismatic-Power cells
Loading programs
CCCV / iu / iuou / lead acid
Laddling tension
14.0V - 14.6V
Preservation
13.3 - 13.8V
Max. Charging current / loading time
150a / 80min
Recommended charging current
80a
Max.entladestrom / 3 sec.
400a
Permanent entertainment current
150a
Battery shutdown
10.0V
BMS Battery Management System
integrated
Remote monitoring integrated with app
Yes
Bluetooth
Yes, installed
Protection class
IP54
Cycles / lifespan at 50% DOD
>5000
Cycles / lifespan at 80% DOD
>3500
Cycles / lifespan at 90% DOD
>3000
Temperature when charging
Minus 30 ° C to 50 ° C
Thermo Control (TC)
built-in
Temporariness in the event of discharge
Minus 20 ° C to plus 60 ° C
Recommended storage temperature
Minus 5 ° C to plus 25 ° C
storage
60 - 80% loaded / Load the battery every 6 months in non -use, battery
Self -discharge
2-3%/month

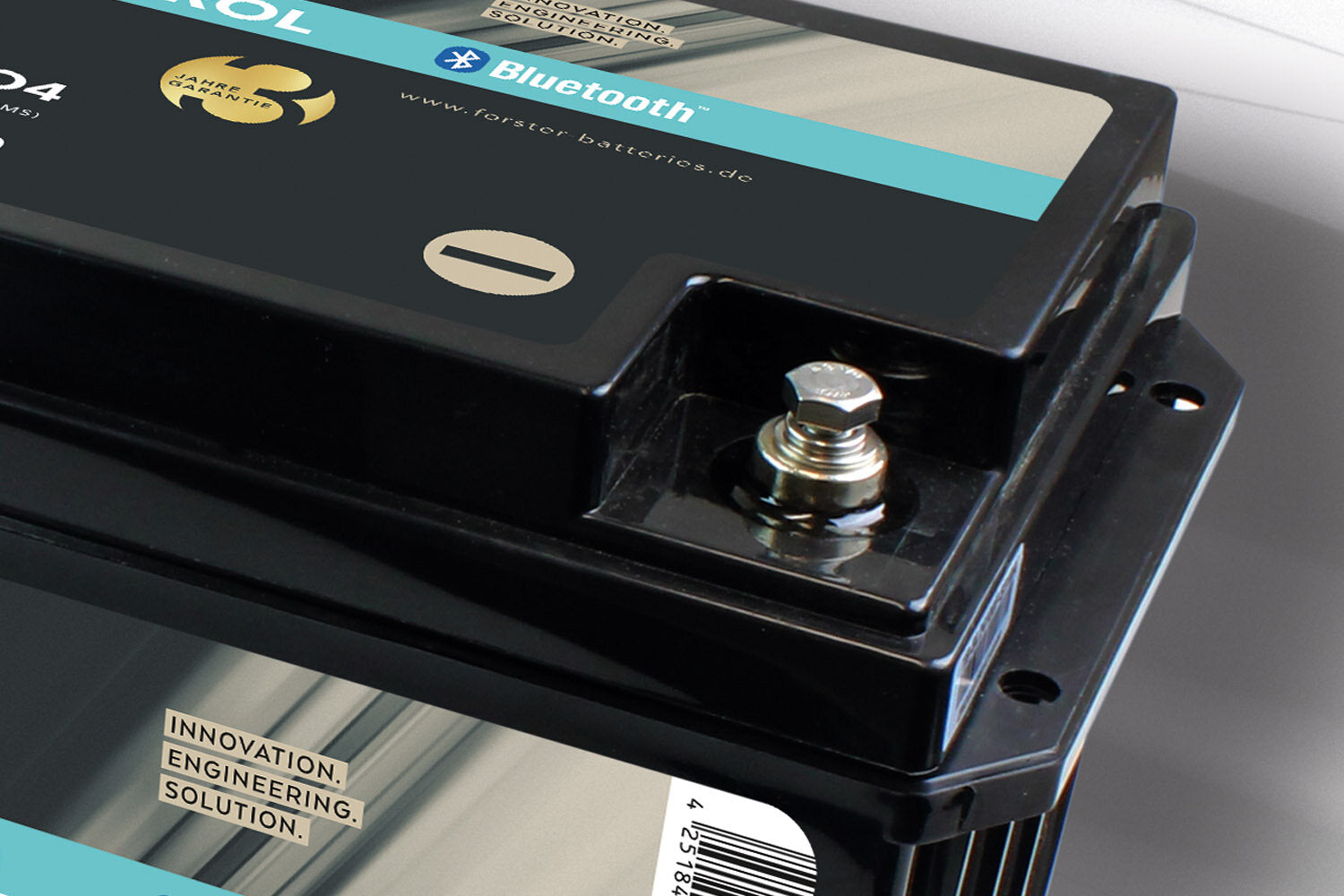

Connection
M8 interior thread
Pluspol arrangement
front left
Final pole
M8 interior thread

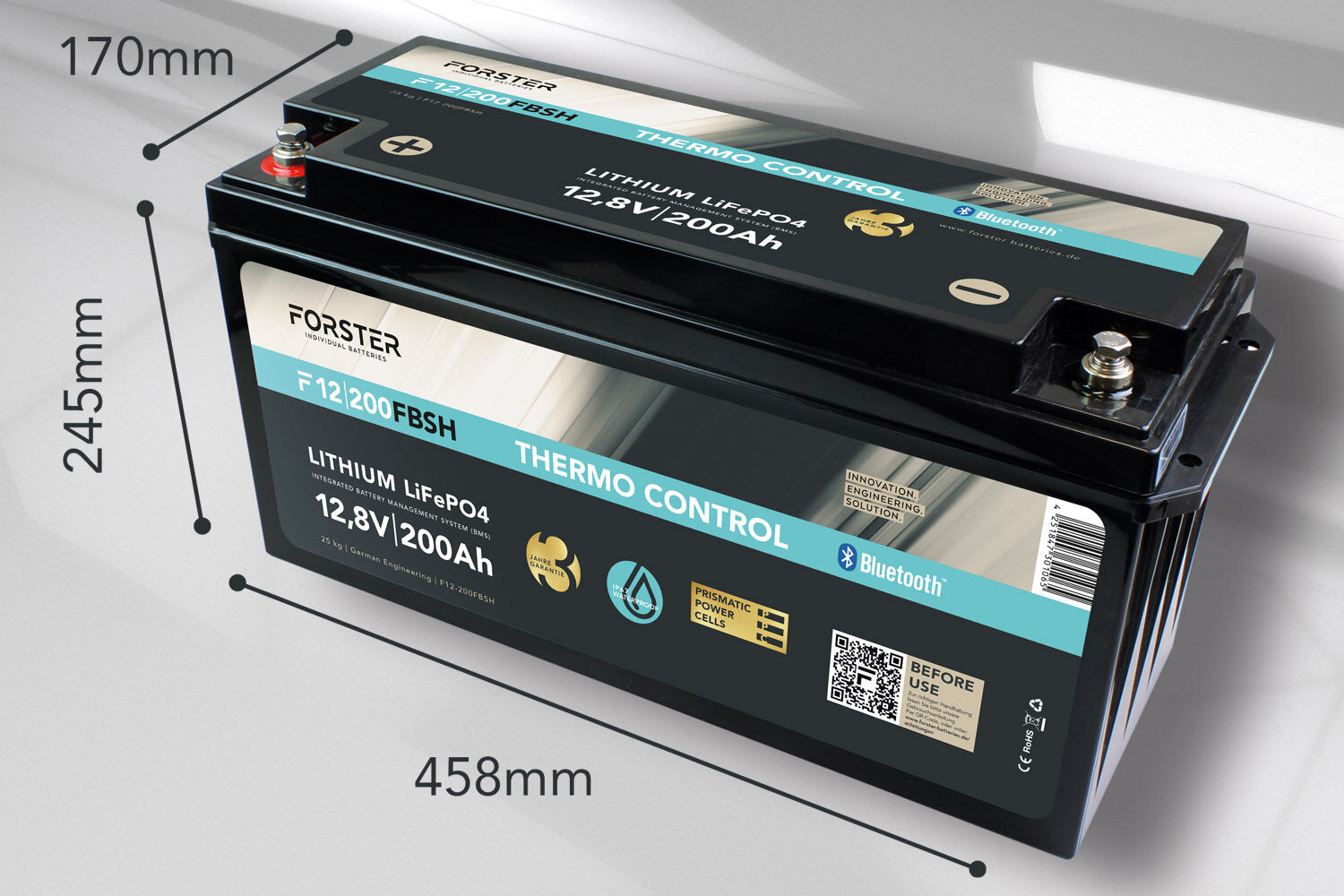

length
485mm
Broad
170mm
Height
245mm
Installation position
arbitrarily, standing, lying, side, upright, head over
Weight
25.0kg
guarantee
3 years
Certification
UN38.3 | MSDS | CE | Raw
