Forster 80AH 12.8V LIFEPO4 Heavy Duty Automotive Lithium Battery 1800a 352 x 174 x 190mm ~ 10.8kg PB-EQ 160AH


Price:
Sale price€809,00 EUR Regular price€990,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

12.8V | 80AH | Lithium starter battery | replaced 160Ah lead

Start clear with the latest lithium technology for your start
For the first time Euro 6 Autos) 1zu1 for a Lifepo4 starter battery. We offer you the latest lithium batteries technology ready for installation in a standard battery housing.

Top features:
-Multi-dynamic BMS
-Start-stop function
-Unique & strong function / high current starting output
-very long service life & simple installation
-High cold resistance
-Super light weight
-certified

Multi-dynamic battery management system:
The absolute highlight is the multi-dynamic BMS. This function was originally developed for racing and adapts permanently to the vehicle electronics. It controls all protective functions and ensures maximum security. This BMS protects your battery from overvoltage, over temperature, compensates for the cells when charging and prevents a deep discharge of the battery. This function is unique & always learns.

Start-stop function:
Our LIFEPO4 starter batteries support all vehicle models with the start-stop function. There is also a reliable energy supply here.

Further advantages at an overview:
-Double usable capacity compared to lead batteries
-High quality materials & parts
-Plug & Play
-Suitable battery poles
-Improvement of fuel efficiency
-Higher brightness of the vehicle lighting
-High reliability even with minus degrees


Product quality
The independent German development of the battery management system is the basis for our quality standards. In addition, Forster individual batteries not only checks and documents in production, but also all batteries again on the shipping day before delivery. Our premium starter batteries come fully charged and start your vehicle immediately after installation.

2 year guarantee
As a manufacturer, Forster individual batteries grants a 2 -year guarantee on the battery advertised with the promise of guarantee.

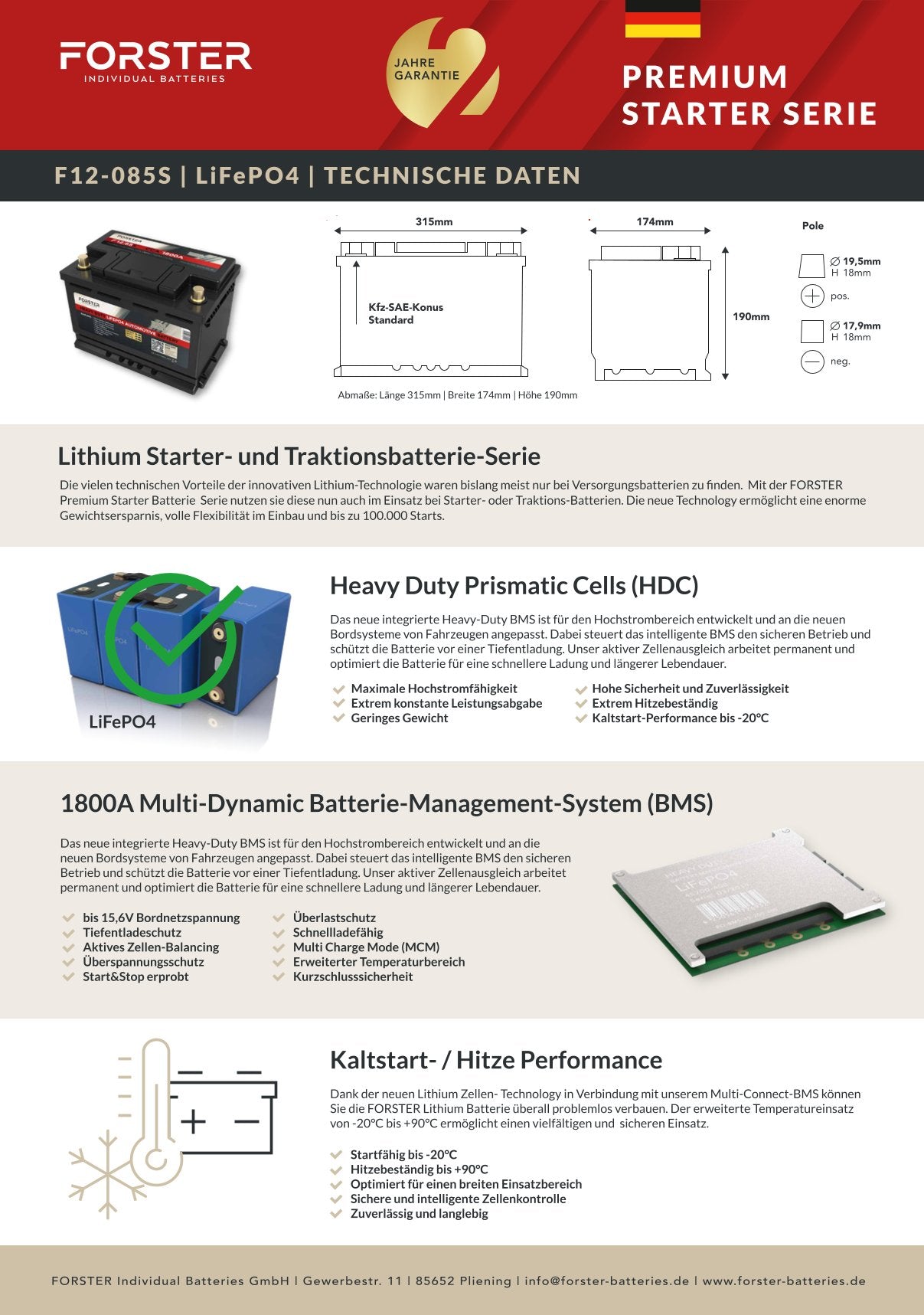

Technical data

Data / order no.: F12-080S
EAN 4251847301324
nominal voltage 12.8V
technology Lithium lifepo4
Cold test current CCA 1800A
Operating voltage 11.0V - 14.6V
Final pole Motor car standard / plus right at the right
circuit 0 (plus pole front right)
End polar type for data sheet Pole

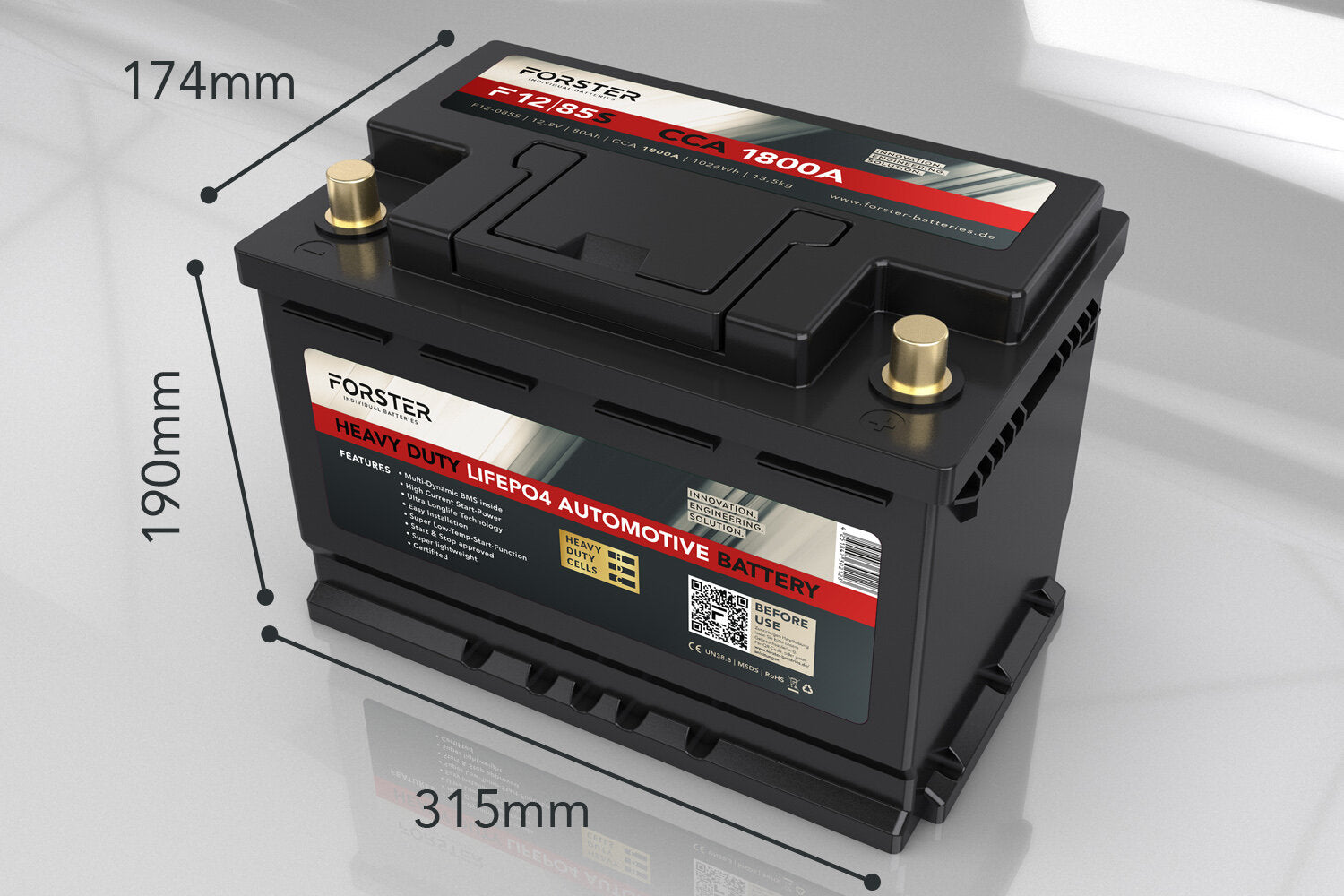

Dimensions 355 x 174 x 190mm (including connection pole)
Installation position arbitrary, standing, lying, side, upright
Weight 10.8kg
Reference to lead, -Gel, -GM batteries 65D31L, 75D31L, 95D31L, N40L, N70ZL, NX120L, Exide W249BX
guarantee 2 years
Cell type HDP Heavy Duty Pouch cells
Application in parallel circuit Yes, max. 4 pieces of the same type possible
Application of series circuit Yes, 2 batteries in series on 24V
CAPACITY
Capacity @25 ° C 80Ah
Capacity @0 ° C 64ah
Capacity @-25 ° C 40Ah
Energy content @25 ° C 1024Wh
LIFESPAN
Start cycles > 100,000 (<3Sec.)
Cycles / lifespan at 50% DOD >5000
Cycles / lifespan at 70% DOD >3000
Cycles / lifespan at 80% DOD >2500
Topping charging current / 3 seconds. 1800a
Permanent entertainment current 160a
Recommended long -term exposure current > 80a
Recommended battery shutdown / system 11.0V
LOAD
Laddling tension 14.2V - 14.6V
Preservation 13.3 - 13.5V
Max. Charging current / loading time / not Lima 80Ah / 1 hour.
Recommended charging current / not Lima 40Ah
Operating temporature in the event of unloading Minus 20 ° C to plus 90 ° C
Recommended storage temperature -45 ° C to 70 ° C / max 95% humidity
Protection class IP56
storage 60 - 80% / load every 6 months when storing
Self -discharge 1.5 - 3% / month
Battery management system
BMS installed Multi-dynamic BMS
Maximum discharge flow / peak 1800a
Loading programs CCCV / iu / iuou / lead acid
Charging protection / control Yes,
Deep discharge 8.0V
Discharge stream limit (duration) 300a
Overvoltage protection 15.6V
Balancing Active balancing in every state of charge
Short -circuit -resistant Yes
Temperature monitoring / protection Yes
Remote monitoring integrated with app n/a
Bluetooth n/a
Conformity specifications
Certification UN38.3 | MSDS | CE | Raw
Transport classification UN3480
