Description
Now with an 8-year warranty!
The highest quality and reliability for virtually all applications, whether caravan, marine, or energy storage. The latest cell technology and optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of measurement and consumption values is possible thanks to a measuring shunt and Bluetooth.
TOP features
100% usable capacity
Our premium battery series can be used at 100% of its stated capacity without causing damage. Conventional lithium batteries can often only be discharged to 92-95%.
Multi-Charge Mode (MCM)
With Multi-Charge Mode (MCM), you can continue using 99% of devices such as boosters, shore chargers, or solar controllers. This saves you additional costs and preserves the manufacturer's warranty on new vehicles.
Bluetooth measuring shunt
All of our X-Series batteries are optionally available with a 500A Bluetooth measuring shunt to display the exact fill level via APP.
Built-in complete protection / Safety first
The integrated, intelligent battery management system (BMS) protects the battery and ensures completely safe use.
Unlike conventional batteries, which consist of many small, interconnected cells, FORSTER relies on a few, larger battery cells. The reduced complexity results in increased performance, durability, and safety.
- Maximum space utilization
- Few cell connectors
- Lower weight
- Quick assembly
- High safety and durability
- High reliability
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of the BMS:
- Overload protection
- Deep discharge protection
- Surge protection
- Active cell balancing
- Complete charging control
- Multi-Charge Mode (MCM)
- BMS temperature protection
- Short-circuit protection
The Smart Meter Shunt is a battery monitor. It measures battery voltage and current. Based on these measurements, it calculates the state of charge, remaining runtime, and tracks historical data such as the deepest discharge, average discharge, and number of cycles. The Smart Meter Shunt connects via Bluetooth to the VictronConnect app. This app is used to read all monitored battery parameters and can also be used to configure or change settings.
- Most accurate charge status display
- One display for multiple batteries
- Can be switched off
- No power consumption during winter storage
Protection class IP67
The housing of the premium battery is completely glued to enable flexible use even under damp or wet conditions. Best warranty processing 8-year warranty
FORSTER INDIVIDUAL BATTERIES offers an 8-year warranty on its batteries. Even after the warranty period, our service department is available to test and repair your battery. Our modular design and the use of large cells make this easy, quick, and cost-effective.
- 8-year manufacturer's warranty
- Fast warranty processing
- Fast and efficient
- Affordable even after the warranty period
You can find the appropriate pole adapters here.
Technical data

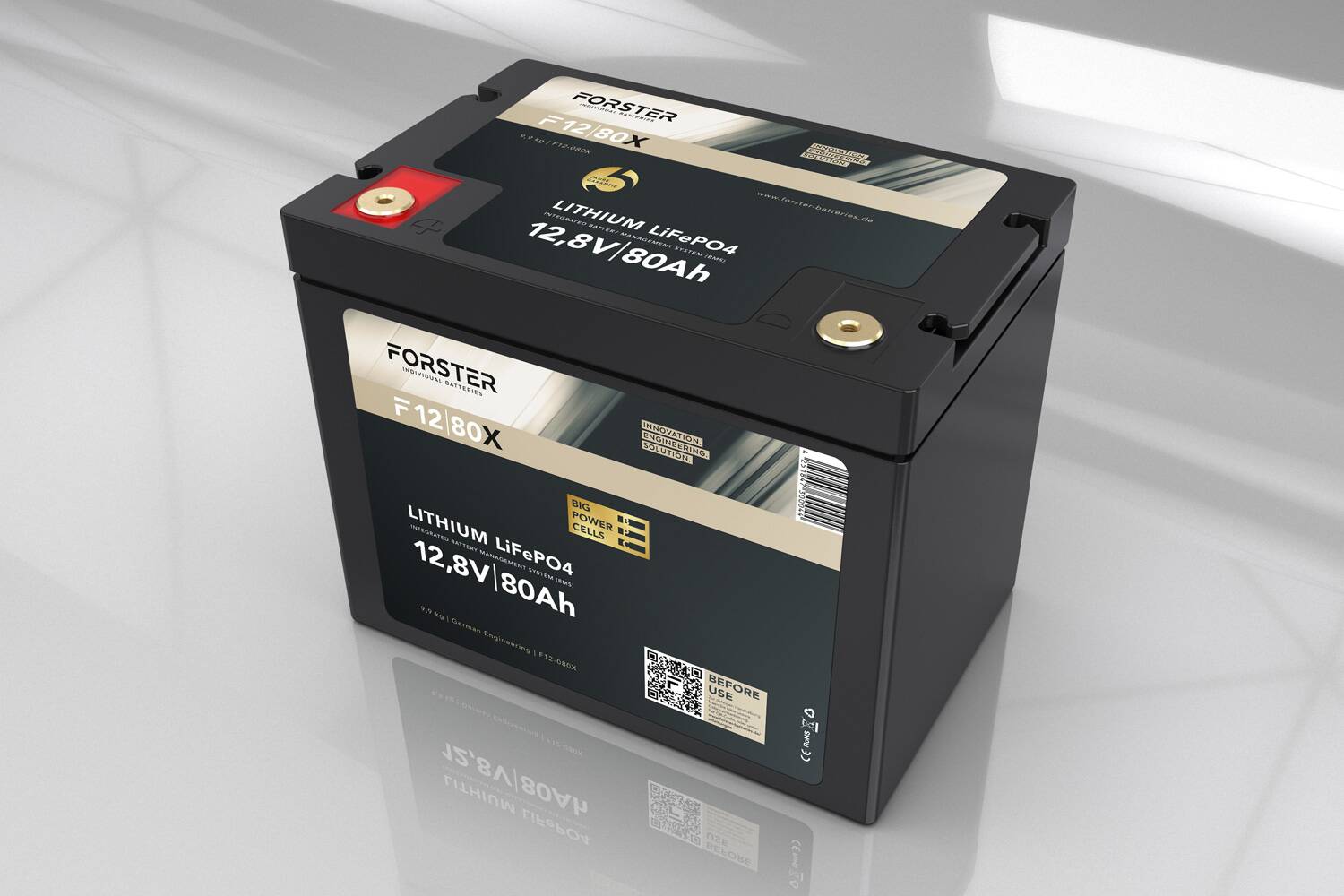

| Data / Order No.: | F12-080XB |
| EAN | 4251847300044 |
| capacity | 80Ah |
| Replaces lead-gel-AGM battery | 12V/160Ah |
| Nominal voltage | 12.8V |
| Energy content | 1024Wh |
| Operating voltage | 10.5V - 14.6V |
| Application parallel circuit | Yes, any number of the same type can be used in parallel! |
| Application series circuit | Yes, serial up to 24V, 36V and maximum 48V possible! |
| Cell technology | Lithium LiFePO4 |
| Cell type | BPC Big-Prismatic-Power high-load cells- GradeAA |
| Charging programs | CCCV / IU / IUoU / Lead-acid |
| Final charging voltage | 14.2V - 14.6V |
| Trickle charging | 13.3 - 13.8V |
| Maximum charging current | 80A |
| Recommended charging current | 40A |
| Max. discharge current / 5 sec. | 400A |
| Continuous discharge current | 200A |
| Battery shutdown | 10.5V |
| BMS Battery Management System | integrated |
| Remote monitoring | integrated 500A Bluetooth measuring shunt with free APP |
| Protection class | IP67 |
| Cycles / lifetime at 50% DoD | >6000 |
| Cycles / lifetime at 80% DoD | >4000 |
| Cycles / lifetime at 90% DoD | >3000 |
| Temperature when charging | 0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS |
| Temperature at discharge | -20°C to +60°C |
| Recommended storage temperature | -10°C to 30°C |
| storage | 80 - 100% charged / when not in use, charge battery every 6 months |
| Self-discharge | 1 - 2% / month |
| Connection | M8 |
| Positive pole arrangement | front left |
| End polarity | M8 internal thread |
| Preparation for shunt assembly | n/a |
| Emergency stop switch installed | n/a |
| length | 260mm |
| Width | 170mm |
| Height | 220mm |
| Installation position | any position, standing, lying, sideways, upright, upside down |
| CANbus interface | n/a |
| Weight | 10.4kg |
| guarantee | 8 years |
| Certification | UN38.3 | MSDS | CE | RoHS |
