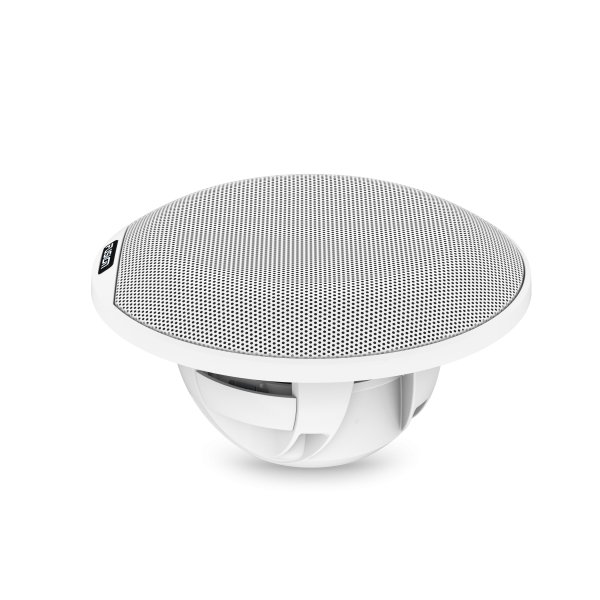

Fusion SG-F653W-6.5 inch coaxial marinel speakers, white, classical grill, 230 watts (couple)

FusionSKU: 010-02773-00

Price:
Sale price€415,40 EUR Regular price€469,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Overview

Size (diameter x depth)

200 x 103 mm (7.87 x 4.06 inches)

Weight (individual loudspeakers)

1.35 kg (3 lbs)

Water and dust resistance

IP65

configuration

Coaxial

Top performance (watts)

230 watts

Effective performance (watts)

75 watts

Sensitivity (1 watts at 1 meter)

90 dB

Frequency response

70 Hz up to 22 kHz

Nominal impedance

4 ohms

Recommended amplifier performance (Watt Eff.)

30 to 90 watts/channel

LED lighting

No

operating temperatur

0 ° C to 50 ° C (32 ° F to 122 ° F)

Diameter of the vibration coil

30.5 mm (1.2 inches)

Cone material

Curv® Konus technology with rubber seed

Type of the tweeter

Silk scale

Safety distance from the compass

310 cm (122 inches)

Loudspeaker connection

Connection cable with water-resistant double plug, 150 mm (5.9 inches)

LED connection (only sports grill models with LED)

Connection cable with water-resistant 6-fold connector, 150 mm (5.9 inches)

guarantee

3 years

Assembly sizes

Mounting diameter (freedom)

136 mm (5.35 inches)

Assembly depth (freedom)

79 mm (3.11 inches)

Recommendations for an optimal housing

Volume of the closed housing (with complete lining with absorbing material)

18 l (0.64 cubic foot)

Volume of a bass reflex housing (with complete lining with absorbing material)

25 l (0.88 cubic foot)

Diameter of the opening

76 mm (3 inches)

Length of the opening

162 mm (6.4 inches)




scope of delivery

  • A few loudspeakers
  • 12 Cross slot fastening screws made of stainless steel, 4.2 x 40 mm (AWG 8 x 1.6 inches)
  • 2 connection cable with water-resistant double plug (150 mm (5.9 inches)))
  • documentation

GPSR Information

Hersteller
Name: Garmin Würzburg GmbH
Anschrift: Beethovenstrasse 1a
PLZ, Ort: 97080, Würzburg
Land: Germany
Email: support.garmin.com/de-DE/
