ISOTHERM 3701 cooling/freezer ITC+ 12/24V

IsothermSKU: U150X050A17161AA

Price:
Sale price€1.379,00 EUR Regular price€1.777,86 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

ISOTHERM 3251 SP cooling/freezer system ITC+ with SP-See water cooling, memory plate and ITC control
The ISOTHERM ITC+ systems were developed for installation in existing cooling boxes. They are primarily intended for use on sailing boats, where the battery current is particularly valuable. The ITC+ system allows maximum cooling capacity with minimal loading of the batteries. It recognizes when excess energy is available from the generator of the boat engine and increases the speed of the compressor so that the cold storage is quickly cooled down. If excess energy is no longer available, the system reduces consumption accordingly. The NIRO cold storage can be installed at any angle high in the cool box before it is connected to the compressor unit. The connection is made with the help of 3 m long, 6 mm thick flexible copper pipes with quick couplings. The compressor unit is so small that it can be accommodated in a storage space or in another unused place within the connection distance for cold storage. After connecting the power cable to the battery, the pre -filled cooling system is ready for operation.

Third cold compressor generation with refined ITC+ system. The new Danfoss compressor is not only more compact, but also considerably lighter and more effective. In a system without ASU, energy savings are up to 20 %compared to older compressor types. With ITC+ and other refinements, energy consumption could be reduced by up to 50 % compared to previous models. The compressor runs so quietly that we have now integrated a separate speed control for the blower, as it was better heard than the compressor. The new ITC+ system regulates compressor and blower to the smallest possible speed if they only run with battery flow.

The ITC+ system is regulated with the help of a special switching board. When switching to normal/car, this unique system works in fully automatic mode, which keeps the correct temperature at the lowest battery load. If no battery flow is used-for example when connecting to the country current or a solar panel-the man-temp mode can be selected and the temperature is set manually on the rotary button on the switching board. 12/24 volts.

The practical "click-on" bracket for the horizontal and vertical assembly is included

Note: For the water connection, we recommend replacing an existing on -board through the supplied. If there is no on -board on board yet, a 1 1/4 "Kugelhahn, a spout and hose are required for the connection. These components are not included in the scope of delivery.

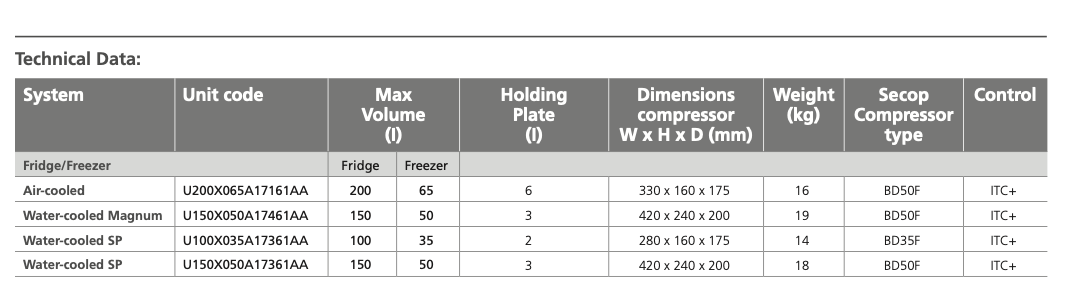

12/24 V
Cold memory (width x height x depth) 300 x 210 x 60 mm
Weight 14 kg
Electricity consumption /24h
Sea water -cooled Danfosskompressor BD35F, 280 x 160 x 175mm
100l cooling volume/ 35l freezer volume

GPSR Information

Hersteller
Name: Indel Webasto Marine Srl
Anschrift: Loc. Secchiano 10
PLZ, Ort: 47863, Novafeltria (RN)
Land: Italy
Email: flavia.santoni@indelwebastomarine.com
Web: https://www.indelwebastomarine.com
