10m 4mm² professional connection cable solar module to solar charge controller

OffgridtecSKU: 8-01-007430

Price:
Sale price€44,03 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

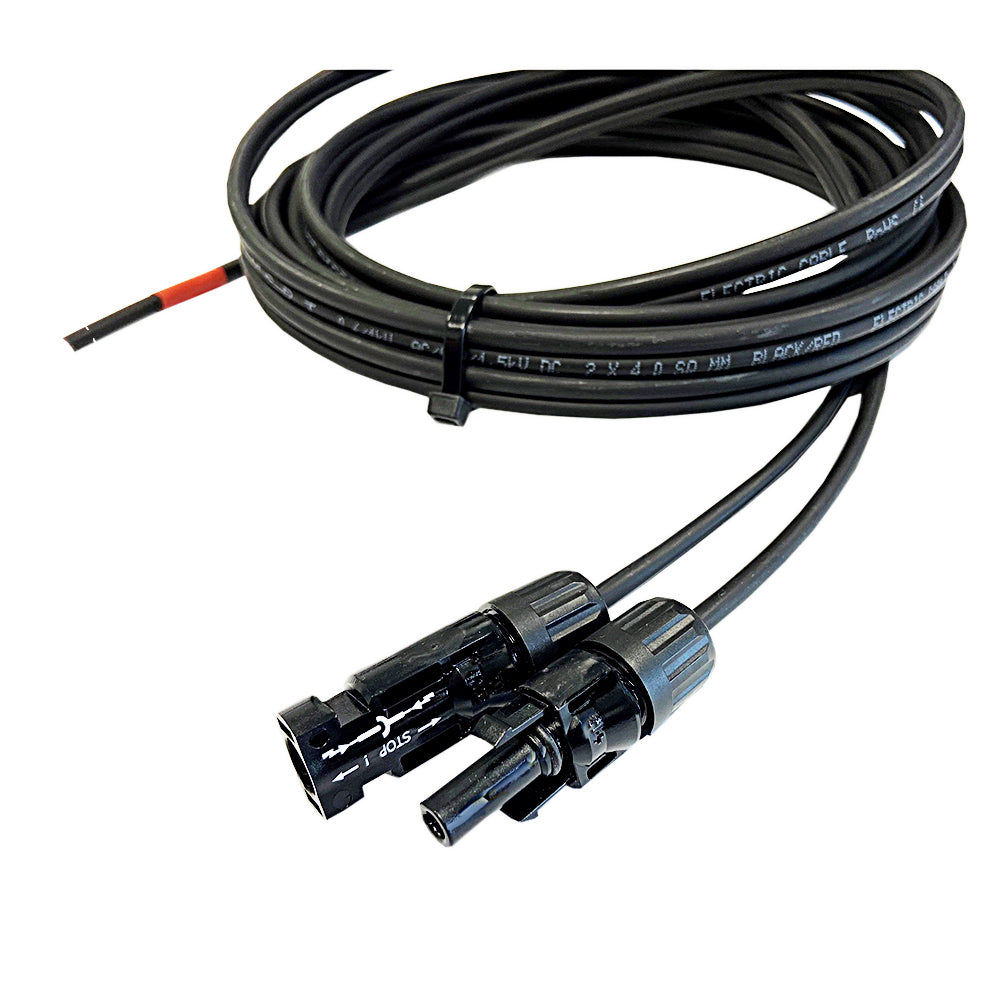

This 2-wire solar cable professionally connects the solar charge controller to the solar modules in a solar system. On the module side, the cable has original Multi-Contact MC4 connectors and on the charge controller side, the cable ends are cut for easy removal of the sheath and exposure of the bare wire. The cable can be connected to any charge controller with the appropriate receptacle (min. 4mm²). Most 12V modules have MC-4 connectors. If your module has other plugs, you will find the right adapter in our shop.

All components were crimped with specialist tools and have an optimal connection quality. The processed solar cable from the manufacturer Lapp-Kabel and is a top branded product.

Due to the cross-section, cables with 4mm² from a length of 5m are only suitable for 24V systems and upwards. For 12V you should use at least 6mm².

Features solar cable

suitable from 24V system
Length: 10m
MC-4 connector
4mm cable cross-section
double insulated
resistant to: UV, ozone, weather, water
very flexible
Manufacturer: Lapp-Kabel

Features MC-4 male & female


- Touch protection, unplugged IP2X
- Degree of protection, IP67 when plugged in
- Operating temperature range -40° ...90° C
- Insulation material PA
- Snap-in locking system
- Cable strain relief according to IEC 61984
- Contact system MC contact lamellae
- Contact material copper, tinned
- Flame class UL94-V0

- Protection class II
- System voltage up to 1000V
- Material: copper / tin

GPSR Information

Hersteller
Name: off-grid tec
Anschrift: In the industrial park 11
PLZ, Ort: 84307, Eggenfelden
Land: Germany
Email: info@offgridtec.com
