Now with an 8-year warranty!
Highest quality and reliability for virtually all applications, whether caravan, marine, or energy storage. State-of-the-art cell technology and optimized BMS-2.0 control and monitoring set the standard for maximum performance and lifespan. Optimal monitoring and control of measured and consumption values are possible via a measuring shunt and Bluetooth.
Top Features
100% usable capacity
Our premium battery series can be used to 100% of its stated capacity without any risk of damage. Conventional lithium batteries can often only be discharged to 92-95%.
Multi-Charge Mode (MCM)
With Multi-Charge Mode (MCM), you can continue using 99% of devices such as boosters, shore power chargers, or solar charge controllers. This saves you additional costs and preserves the manufacturer's warranty on new vehicles.
Bluetooth measuring shunt
Optionally, all our X-series batteries are available with a 500A Bluetooth measuring shunt to display the truly exact fill level via app.
Built-in complete protection / Safety first
The integrated, intelligent Battery Management System (BMS) protects the battery and ensures completely safe use.

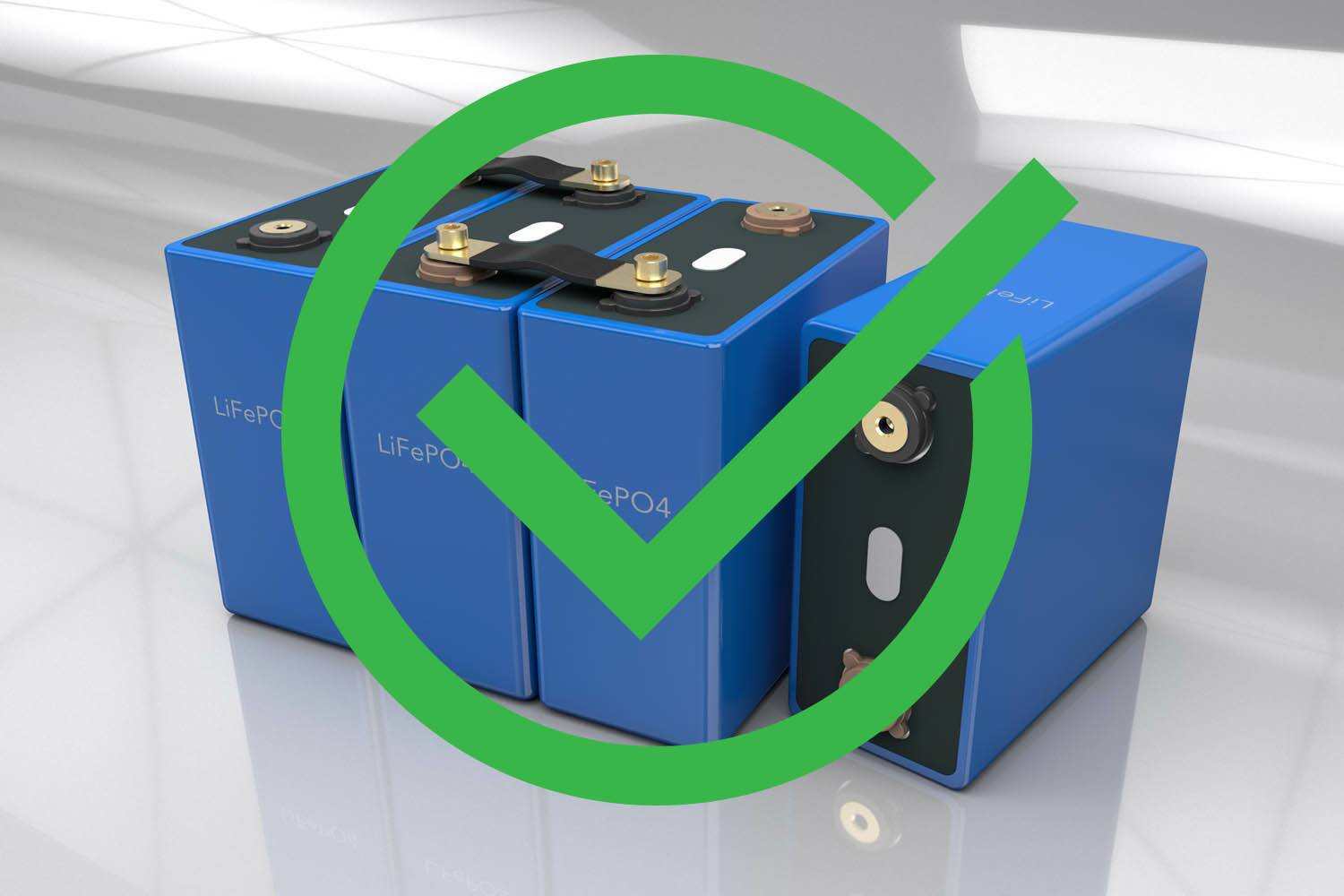

Big Power Prismatic Cells (BPC)

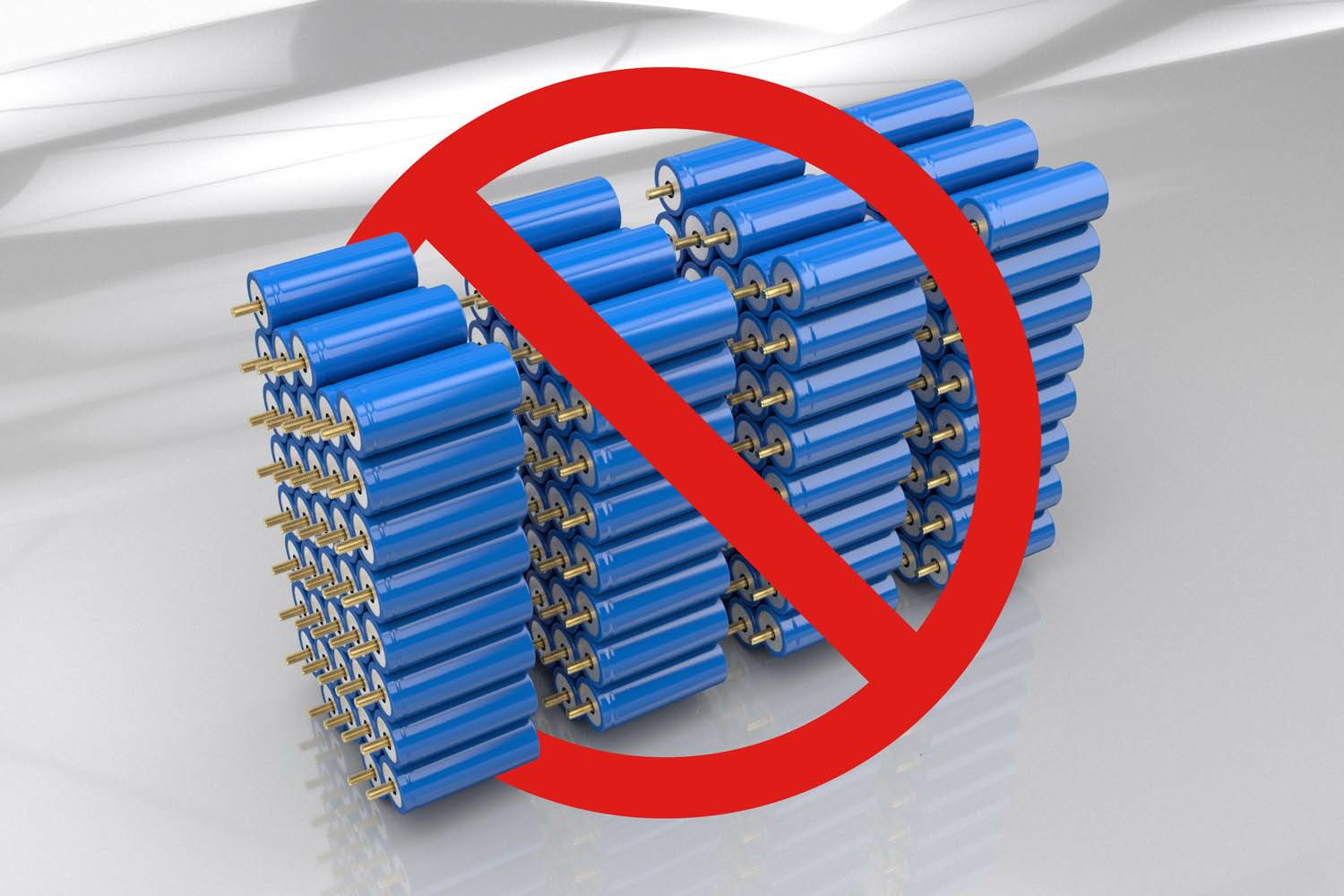

Unlike conventional batteries, which consist of many small, interconnected cells, FORSTER uses a few, larger battery cells. This reduced complexity results in increased performance, lifespan, and safety.
- Maximum space utilization
- Few cell connectors
- Lighter weight
- Quick assembly
- High safety and longevity
- High reliability
200A High-Load Power Battery Management System (BMS) A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Key functions of the BMS:
- Overload protection
- Deep discharge protection
- Surge protection
- Active cell balancing
- Complete charging control
- Multi-Charge Mode (MCM)
- BMS temperature protection
- Short-circuit protection
Protection class IP67
The casing of the premium battery is completely glued to allow flexible use even under damp or wet conditions.
Best warranty handling, 8-year warranty FORSTER INDIVIDUAL BATTERIES offers an 8-year warranty on its batteries. Even after the warranty period, our service team is available to inspect and repair your battery. Thanks to our modular design and the use of large cells, this is a simple, quick, and cost-effective process.
- 8-year manufacturer's warranty
- Fast warranty processing
- Fast and efficient
- Affordable even after the warranty period
F48-100X
|
|
EAN
|
4251847302482
|
|
capacity
|
100Ah
|
|
Replaces lead-acid gel AGM battery
|
200Ah
|
|
Nominal voltage
|
51.2V
|
|
Energy content
|
5120Wh
|
|
Operating voltage
|
42.0V - 58.4V
|
|
Application: Parallel circuit
|
Yes, any number of the same type can be done in parallel!
|
|
Application: Series circuit
|
no
|
|
Cell Technology
|
Lithium LiFePO4
|
|
Cell type
|
BPC Big-Prismatic-Power high-load cells- GradeAA
|
|
Loading programs
|
CCCV / IU / IUoU / Lead-acid
|
|
Final charging voltage
|
56.8 - 58.4V
|
|
Trickle charge
|
53.2 - 55.2V
|
|
Maximum charging current
|
100A
|
|
Recommended charging current
|
50A
|
|
Max. discharge current / 5 sec.
|
400A
|
|
Continuous discharge current
|
200A
|
|
Battery shutdown
|
42.0V
|
|
BMS Battery Management System
|
integrated
|
|
Remote monitoring optional
|
Optionally available with 500A Bluetooth measuring shunt and free app
|
|
Integrated remote monitoring/measuring shunt
|
F48-100XB
|
|
Protection class
|
IP67
|
|
Cycles / Lifetime at 50% DoD
|
>6000
|
|
Cycles / Lifetime at 80% DoD
|
>4000
|
|
Cycles / Lifetime at 90% DoD
|
>3000
|
|
Temperature during charging
|
0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS.
|
|
Temperature during discharge
|
-20°C to +60°C
|
|
Recommended storage temperature
|
-10°C to 30°C
|
|
storage
|
80-100% charged / when not in use, charge battery every 6 months
|
|
self-discharge
|
1-2% per month
|
|
Connection
|
M8
|
|
Positive terminal arrangement
|
Front right
|
|
End polarity
|
M8 internal thread
|
|
Preparation for shunt installation
|
n/a
|
|
Built-in emergency stop switch
|
n/a
|
|
Mass
|

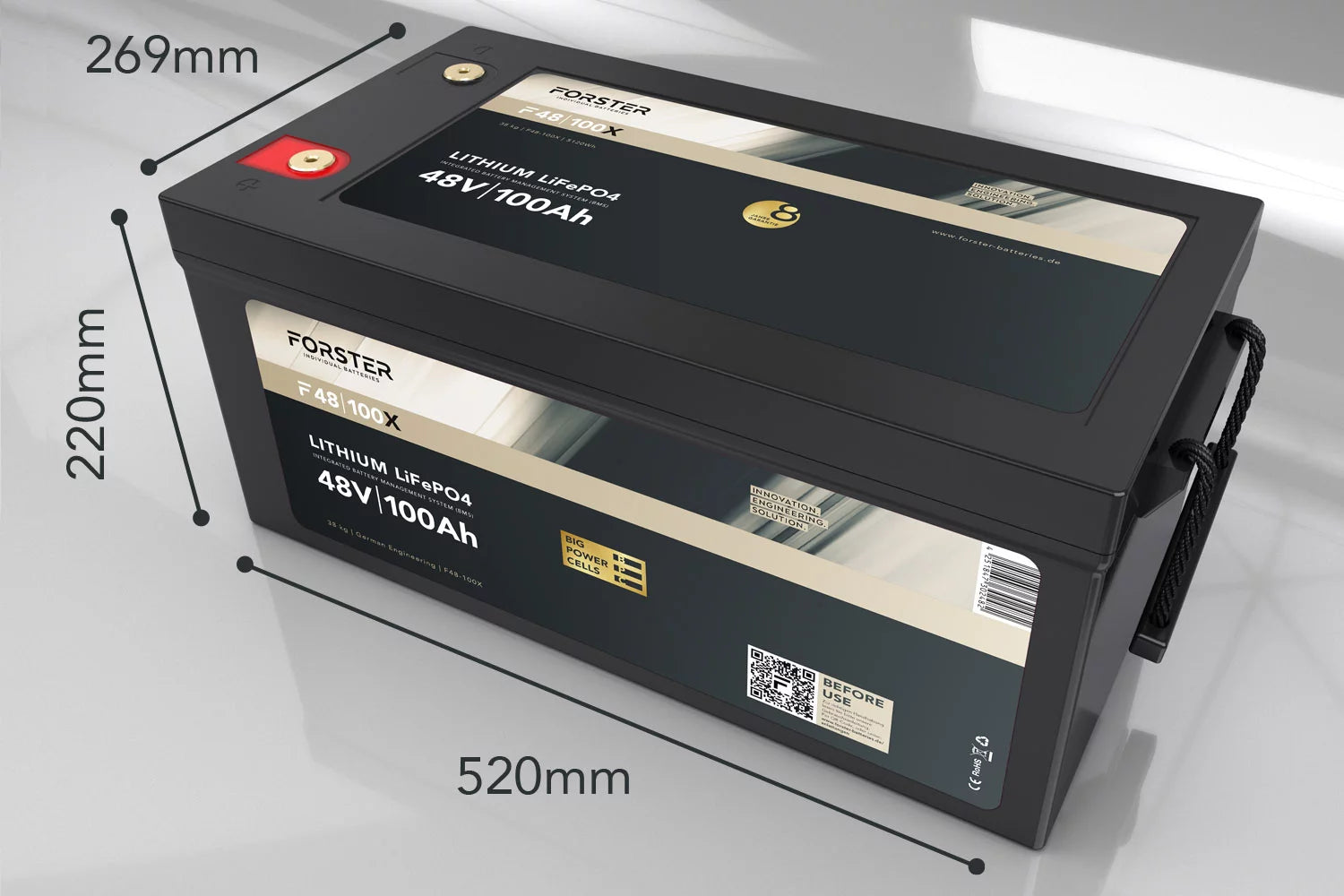

520 x 268 x 220 mm
|
|
Installation position
|
any position, standing, lying down, sideways, upright, upside down
|
|
CANbus interface
|
n/a
|
|
Weight
|
38.0 kg
|
|
guarantee
|
8 years
|
|
Certification
|
UN38.3 | MSDS | CE | RoHS | ECE-R10
|
