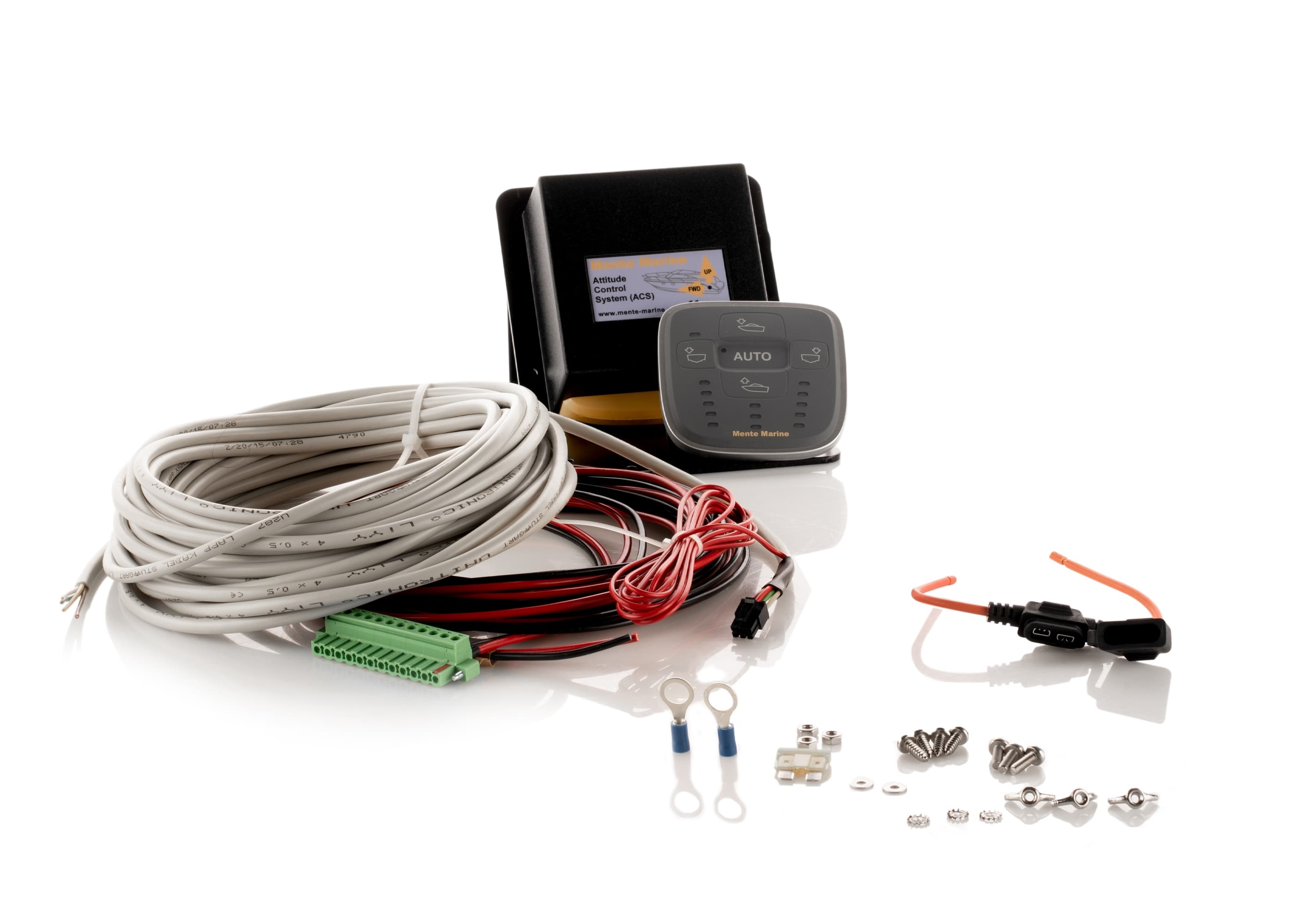

Mente Marine ACS A fully automatic trim flap control for Flybridge

Mente MarineSKU: ACS A

Price:
Sale price€839,00 EUR Regular price€979,95 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Mente Marine ACS A fully automatic trim flap control for flybridge for existing trim flaps relieves you of the work of trimming in course and wind changes as well as changed seating positions from passengers.

  • Compatibility (hydraulic trim flaps): Bennett, Instatrim, Trimmaster, TFX Teleflex, TX Controls
  • Compatibility (electromechanical trim flaps): Bennett, Lectrotab, Lenco, Eltrim, Ultraflex

Mente Marine ACS A Fully automatic trim flap control for Flybridge are excellent for gliders and semi-glider with wave drive, Z drive, IPS or exterior bidder with trim flaps to be connected in the machine room.

The deep Vaums of the modern sports boats are designed to enable them in the rough water. The more the tea, the more there is the need to maintain a straight run with trim flaps. Rolling and the side inclination depends on the wind and the position of the passengers. The longitudinal slope, also called a trim position, depends on the speed and load. When changing the course, the wind direction also changes and the boat must be trimmed again. If passengers change their location, they must also be trimmed again. This necessity to constantly adapt the trim position to the changed load conditions unnecessarily distracts the boat guide and therefore represents a security risk at high speeds.



Curve recognition

With curve maneuvers, the boat leans to the inside of the corner. A roundabout is installed in the system that recognizes such curve maneuvers. Therefore, trimmen corrections are not carried out during a cornering. Unnecessary trimming systems are therefore automatically prevented by the system and the boat leaves the curve with an optimal trim position. The LED display car flashes when the system detects a cornering and does not change the trim position. If a stable course is currently on, the new trim position is measured and the mente marine ACS system corrects the trim position due to the changed conditions.

Adaptive system

The mente Marine ACS system is preparing for boats of all sizes. Thanks to the adaptive system, the boat can drive with an optimal trim position, with the differences in the size and operation of the trim flap into account.

Different sea is also recognized by the system. In calm water, the system corrects faster than in Rauer See. This enables a quick reaction if necessary and prevents unnecessary trim flaps in tall waves.

Displacement trip

When the gliding speed is falling below, the trim flaps lose their effect. The mente Marine ACS recognizes this driving condition and does not try to correct in displacement. During the acceleration phase, the mente Marine ACS system automatically switches and corrects the trim position even before the boat is "over the mountain".

The car display flashes during the displacement trip. The flashing indicates that automatic mode is active, but is not used temporarily because of the slow speed.

Automatic/manual mode

The automatic button is used to adjust the operating mode of the mente Marine ACS system. A short press of the automatic button can be switched to automatic or manual mode.

In automatic mode, the trim position of the boat is automatically set, provided the display lights up. When the display flashes, the automatic mode is blocked while the boat takes a sharp curve and during the displacement trip.

Of course, the automatic can be switched off and the panel can be used as a manual control panel, which, for example, makes sense on rough water ride in order to trim the bug even deeper and thereby make the journey more comfortable.

TECHNICAL DETAILS

  • Compatibility (hydraulic trim flaps): Bennett, Instatrim, Trimmaster, TFX Teleflex, TX Controls
  • Compatibility (electromechanical trim flaps): Bennett, Lectrotab, Lenco, Eltrim, Ultraflex

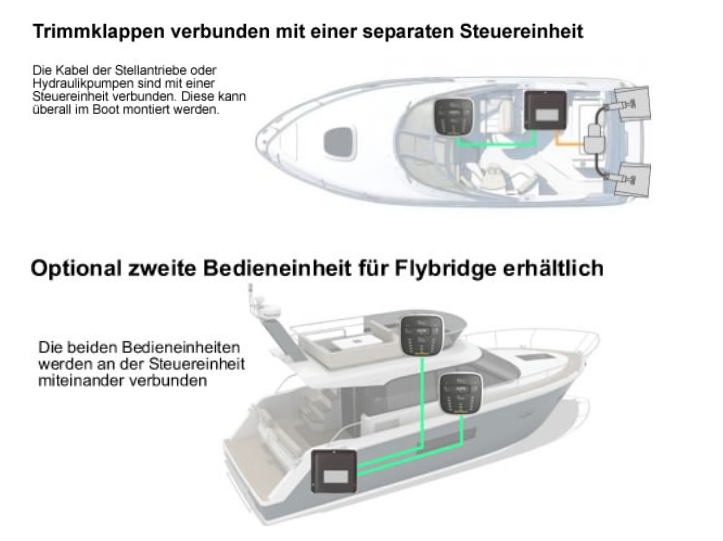

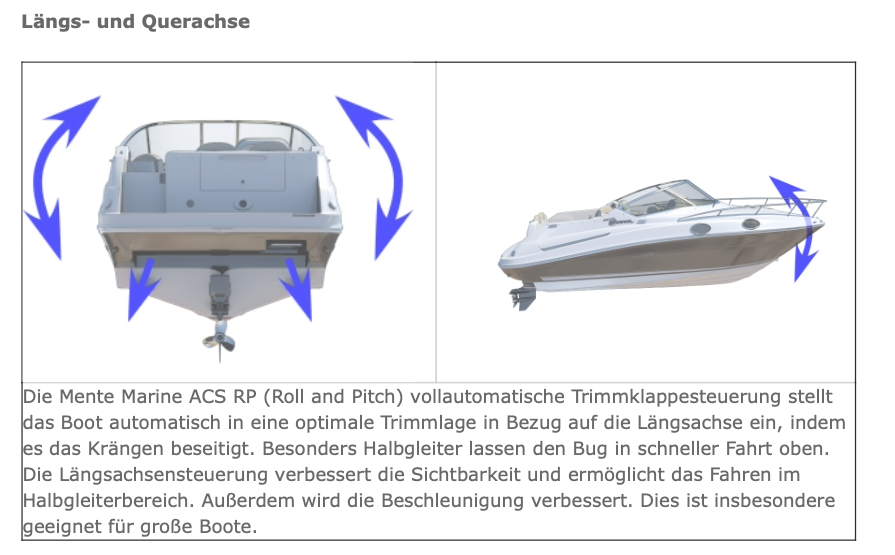

  • ACS A: Control of the cross and longitudinal axes with a separate control unit
  • Boat length: 4.5 - 12 m
  • Trim flaps-type detection: automatic
  • Sensitivity: automatic, adaptive to boot type
  • Size control unit: W 80 x H 77.5 x D 10 mm
  • Size control unit: W 120 x H 112 x D 40 mm
  • Waterproof: according to IP68
  • Operating temperature: -10 - +85 ° C
  • Storage temperature: -40 - +85 ° C
  • Power of voltage: 10 - 30 V DC
  • Maximum current recording: 18 A (if trim flaps activated)
  • Electricity recording: 0.02 A (in idle)
  • Admission: CE (agreement with the EMC guidelines)
  • Menten Marine FCP is needed - optional

GPSR Information

Hersteller
Name: Oy Mente Marine AB
Anschrift: Wolffintie 36
PLZ, Ort: F11, 65200 Vaasa
Land: Finland
