Copy of Victron 50a Buck-Boost DC/DC Converter #1

Victron EnergySKU: ORI303100000

Price:
Sale price€1.065,05 EUR Regular price€1.494,64 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

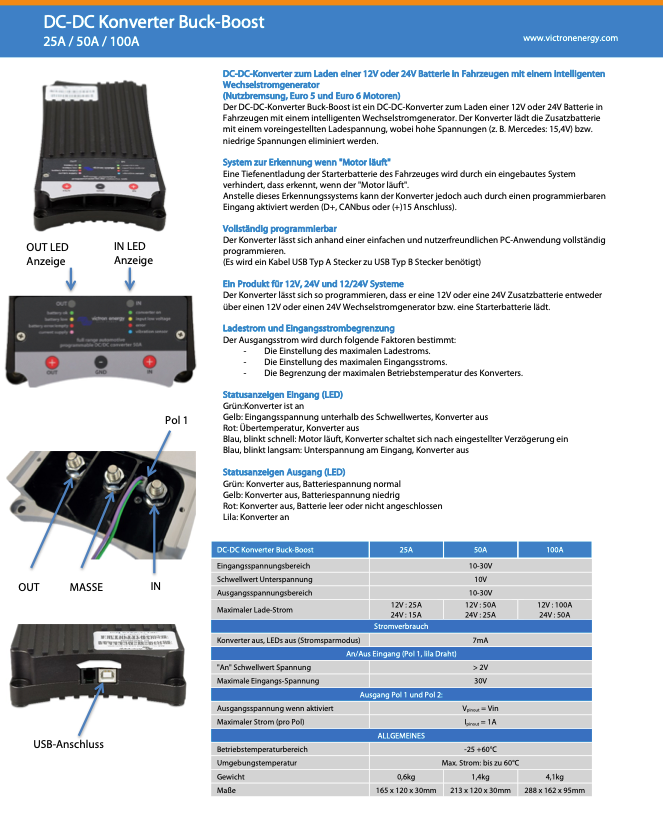

The 50a Buck-Boost DC-DC voltage converter from Victron Energy  is a converter for charging a 12V/24V service battery in vehicles with an intelligent alternator. Since these alternators (operated by the on-board electronics of the Euro 5 and 6 engines) do not always spend the correct charging current, a DC-DC converter is crucial for the correct charging of the service battery. The converter loads the additional battery with a preset charging voltage, with high voltages or low voltages being eliminated.

Characteristics:
- System for detection when "engine is running"
- fully programmable
- A product for 12V, 24V and 12/24V systems
- charging current and input current limitation
- LED status ads for entrance and output

    System for detection when "engine is running":
    A deep discharge of the starter battery of the vehicle is prevented by a built -in system that recognizes when the "engine runs". Instead of this detection system, the converter can also be activated by a programmable input (D+, CANBUS or (+) 15 connection).

    Fully programmable:
    The converter can be completely programmed using a simple and user-friendly PC application (a cable USB type a connector to USB type B plug is required) The converter can be programmed so that it can be programmed a 12V or a 24V additional battery either via a 12V or a 24V AC generator or a starter battery loads.

    Charging current and input current limitation:
    The starting current is determined by the following factors:
    - the setting of the maximum charging current
    - the setting of the maximum input current
    - limitation of the maximum operating temperature of the converter

    Technical data:
    - Input voltage area: 10-30V
    - Output voltage area: 10-30V
    - Max. Charging current: 12V: 50A - 24V: 25A
    - Operating temperature range: -25 ° C - +60 ° C
    - Weight: 1.1 kg
    - Dimensions: 213 x 120 x 30 mm

    Scope of delivery:
    1x Victron Buck-Boost 50a DC-DC Konverter
    1x operating instructions

    GPSR Information

    Hersteller
    Name: Victron Energy BV
    Anschrift: The Palm 35
    PLZ, Ort: 1351, JG Almere
    Land: Netherlands
    Email: sales@victronenergy.com
    Web: https://www.victronenergy.com
