Copy of Victron BlueSolar MPPT 150/60-Tr #1

Victron EnergySKU: SCC010060300

Price:
Sale price€281,49 EUR Regular price€404,60 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

TheVictron MPPT 150/60-TR belongs to the large family of BlueSolar MPPT charge controllerswithout Bluetooth and a wide range of services for the demanding user. Ultra-fast power tracking and automatic adjustment of the MPP voltage in partial shading are just 2 of the many highlights of this device class. The devices in classes 150/45Tr to 150/100Tr are also available as a version with MC4 connections on the solar side of the charge controller instead of screw terminals. This model also supports parallel operation with other controllers of the same type.

VE-Direct options for programming, real-time data and history viewing
Apple and Android smartphones, tablets, Macbooks and other devices can be connected to the Bluetooth Smart Dongles and the MPPT app or the GX Color Control via VE.Direct, for example.
Please note that Bluetooth Smart Dongles and GX Color Control are separate items that are not included in the scope of delivery of the charge controller but can be purchased from us as an option.

Advanced maximum power point detection in partial shading
In the case of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Traditional MPPTs tend to tune to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize energy yield by adjusting to the optimal MPP.

Characteristics of the BlueSolar 150/60tr 60A 12V 24V 36V 48V MPPT
Ultra-fast MPP tracker of the latest generation ensures the best possible yield even when the sky is overcast
Automatic detection of the MPP voltage in partial shading ensures a further improvement in yield compared to "simple" MPPT charge controllers
Integrated VE.Direct data communication port for connection For communication with additional devices such as Bluetooth Smart Dongle or the GX Color Control Panel
high maximum efficiency of 98%
Parallel operation with other 150/60 controllers possible
adjustable constant charging voltage
adjustable trickle charging voltage
Suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
Tr version = connection of the solar modules via screw terminals (max. 35mm²)
fully programmable charging algorithms that are later activated and switched manually using a switch on the housing
Rated charging current 60A, 150V maximum PV open circuit voltage
Maximum PV power: 12V = 850W 24V = 1720W 48V = 3440W
Integrated protection against battery polarity reversal
multi-stage and adaptive loading algorithm
Degree of protection IP 43 for the electronic components and degree of protection IP 22 for the connection area of ​​the controller
Integrated temperature sensor balances maintenance and constant charging voltage according to temperature
Day/night time control and light dimming option
200x250x95

The latest generation of high-speed MPP trackers
Especially when the sky is overcast, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charging controllers and by up to 10% compared to slower MPPT controllers.

extensive electronic protection
- Protection against reverse polarity battery connection
- PV reverse current barrier
- Protection against overheating of the device
- Protection against short circuits
- Protection against reverse polarity PV connection

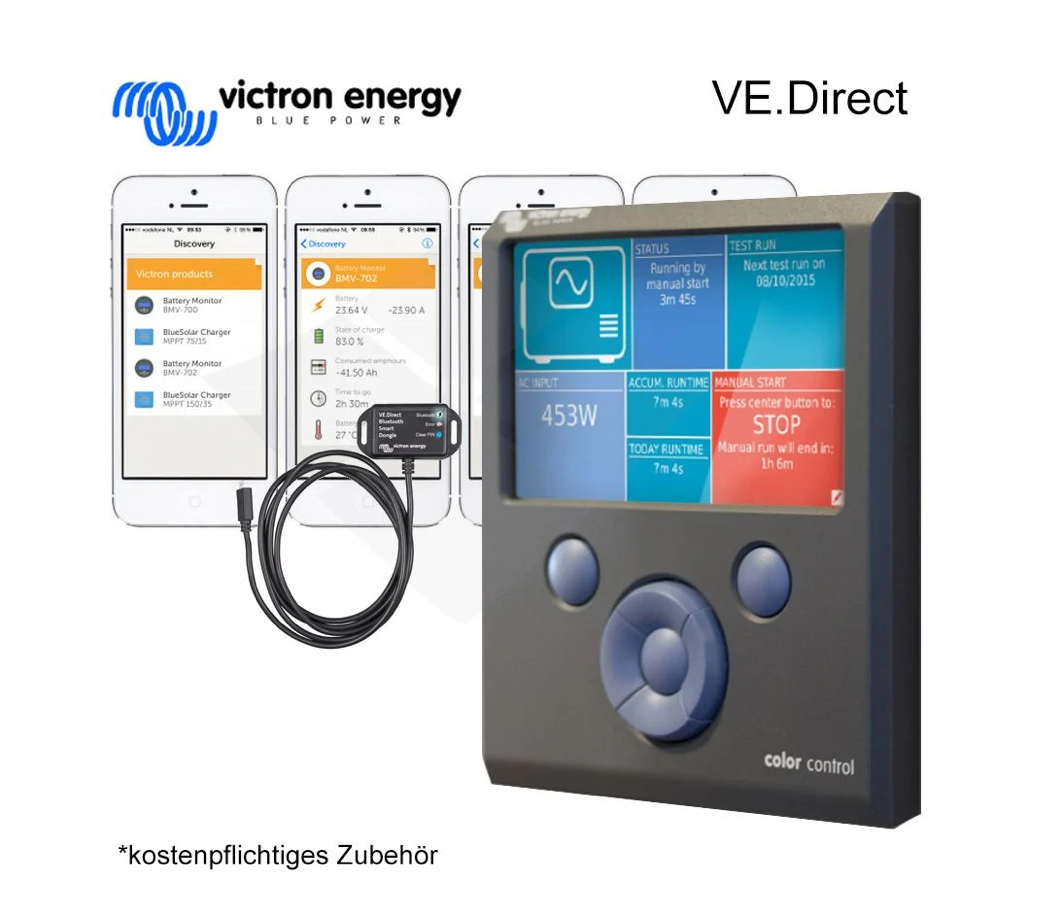

VE.Direct data communication port
VE.Direct in text mode transmits all important parameters every second to other devices that are linked to the charge controller, thus offering the possibility of communication with additional devices such as the Bluetooth Smart Dongle or the GX Color Control Panel from Victron. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would cost too much. You can find more information about VE.Direct on the Victron homepage.

scope of delivery
1x Victron BlueSolar MPPT 150/60-Tr charge controller
operation manual
