Victron LiFePO4 12.8V/100Ah NG battery

Victron EnergySKU: BAT512110620

Price:
Sale price€653,31 EUR Regular price€824,67 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

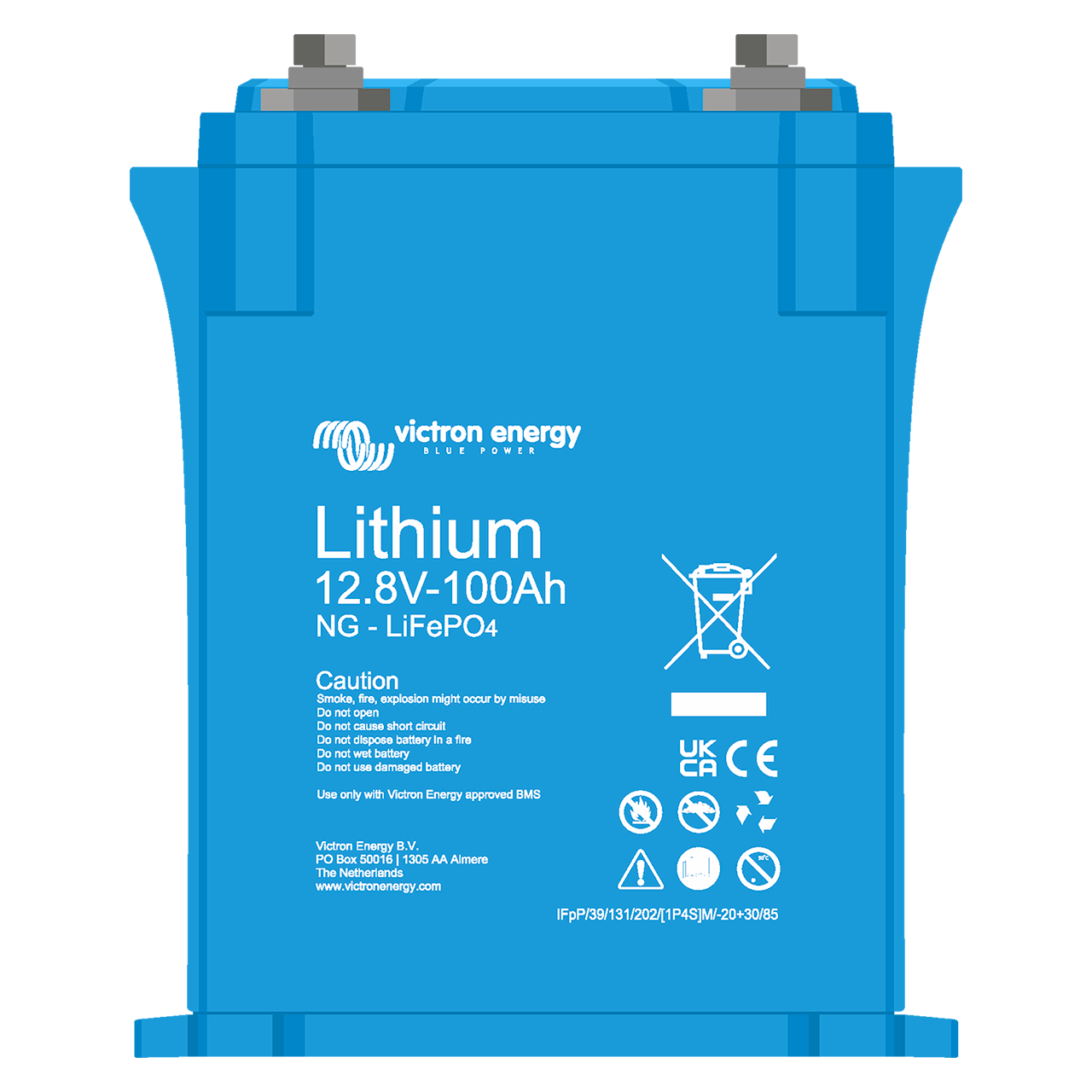

Victron LiFePO4 battery - 12.8V/100Ah NG

Integrated shunt | Automatic setup, monitoring and control | Low self-discharge rate

Victron Energy's new Lithium NG (Next Generation) battery is a lithium iron phosphate (LiFePO4 or LFP) battery with a nominal voltage of 12.8V and a capacity of 100Ah. It is the safest and most widely used lithium battery type and the preferred choice for demanding applications. It can be connected in series or parallel, allowing for the creation of large battery banks. The maximum number of batteries in a system is 50, resulting in a maximum energy storage capacity of up to 192kWh in a 12V system. The battery features an integrated balancing, temperature, and voltage control (BTV) system, which must be connected to an external Victron battery management system (currently the Lynx Smart BMS NG 500A/1000A, with more models to follow) and is sold separately.

Victron lithium batteries are characterized by their high energy density, long lifespan, and low weight, making them an efficient and reliable energy source. They are therefore ideal for use on boats, in expedition vehicles, in mobile workshops, and as home energy storage for solar power systems. They can also be used in industrial applications to ensure a reliable power supply, protecting critical technical equipment such as computers or monitoring systems from power outages.

Key features in brief

  • Integrated system for controlling cell balance, temperature and voltage
  • Integrated shunt
  • Automatic setup, monitoring and control via VictronConnect or a GX device and the VRM Portal
  • Easy bracket mounting
  • Increased ingress protection (IP 65 classification)
  • Low self-discharge rate
  • High efficiency
  • High energy density
  • High charging and discharging currents

Integrated cell balancing, temperature and voltage control system (BTV)

The BTV monitors each individual battery cell, balances the cell voltages, and communicates with the downstream battery management system. By controlling and monitoring each individual cell, the battery's efficiency is optimized in the most precise way.

Integrated shunt

The battery data (battery voltage, current and temperature) are transmitted to the BMS and evaluated there, e.g. to calculate the state of charge, which can then be read via VictronConnect or a Victron GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring and control via VictronConnect or a Victron GX device and the VRM Portal

The BMS automatically manages all battery parameters. It detects the system voltage and the number of batteries in parallel, series, and series/parallel configurations. The BMS is mandatory and must be purchased separately. Currently, the following is available:

The Lynx Smart BMS NG 500A and the Lynx Smart BMS NG 1000A are available. Monitoring and control are performed via VictronConnect (each BMS model has Bluetooth), a Victron GX communication center, or the VRM portal. This allows you to check battery parameters such as cell status, battery voltages, current, and temperatures in real time. The Victron NG battery firmware is automatically updated by the BMS.



Easy bracket mounting

Mounting brackets simplify installation and ensure that the battery is optimally secured against slipping and tipping over. Optionally, the batteries can also be secured with straps.

Increased ingress protection (IP65 classification)

Victron Lithium NG batteries are effectively sealed against dust and can withstand a low-pressure water jet, making them suitable for environments where dust and water could be a problem.

Low self-discharge rate

The self-discharge rate of the new Victron NG batteries has been significantly improved and is now a maximum of 2% of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Additional features

  • high efficiency during charging and discharging
  • High charging and discharging currents enable fast charging and discharging.
  • high energy density, resulting in greater capacity with lower weight and volume

  • Scope of delivery

    • 100Ah/12.8V NG Victron Lithium (LiFePO4) battery | BAT512130620 | with integrated shunt
    •

        Victron manufacturer's warranty

        • Lithium batteries: 3-year manufacturer's warranty
        • Lead/Gel/AGM batteries: 2-year manufacturer's warranty

          All other products: 5-year manufacturer's warranty, extendable to 10 years

      GPSR Information

      Hersteller
      Name: Victron Energy BV
      Anschrift: The Palm 35
      PLZ, Ort: 1351, JG Almere
      Land: Netherlands
      Email: sales@victronenergy.com
      Web: https://www.victronenergy.com
