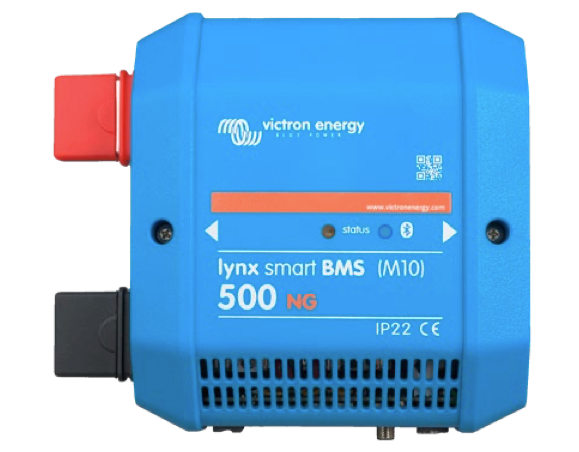

Victron Lynx Smart BMS 500 NG (M10) battery management system

VictronSKU: LYN034160310

Price:
Sale price€737,67 EUR Regular price€1.019,83 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Lynx Smart BMS NG is a dedicated battery management system (BMS) for Victron Lithium NG batteries. These batteries are lithium iron phosphate (LiFePO4) batteries available in 12.8 V, 25.6 V, and 51.2 V versions with varying capacities.

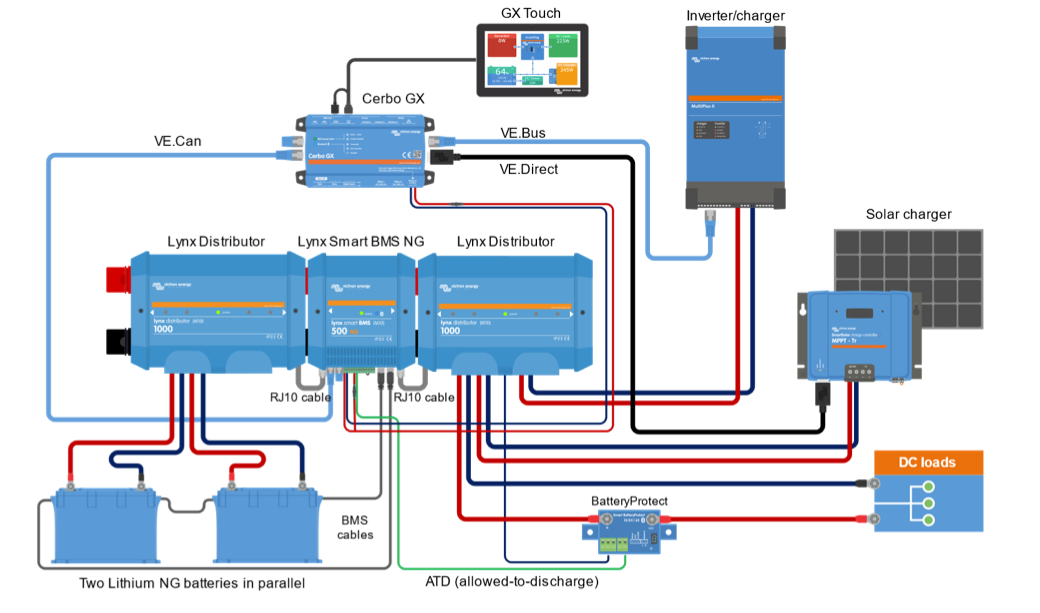

These batteries are available and can be configured in series, parallel, and series/parallel configurations, allowing the creation of battery banks with system voltages of 12 V, 24 V, or 48 V. The maximum number of batteries in a single system is 50, enabling a maximum energy storage capacity of 192 kWh in a 12 V system and up to 384 kWh in 24 V and 48 V systems. The maximum energy storage capacity can be multiplied by connecting multiple Lynx Smart BMS units in parallel, which also provides redundancy in case a battery bank fails. Comprehensive information on these batteries can be found on the Victron Lithium NG battery product page.
Among the various BMS available for the new Lithium NG batteries, the Lynx Smart BMS NG is the most feature-rich and comprehensive option, seamlessly integrating with other M10 products in the Lynx distributor system. It is available in 500 A (M10) and 1000 A (M10) versions.

Built-in 500 A or 1000 A contactor

Lynx Smart BMS NG 500 A
• Available in 500 A (M10) and 1000 A (M10) versions.
• Serves as a secondary safety system to protect the battery in case the primary controls (ATC, ATD and/or DVCC) fail.
• Suitable as a remote-controlled main switch for the system.
Pre-charging circuit
• Prevents high inrush currents when connecting capacitive loads such as inverters.
• External pre-chargers are no longer required.
Monitoring and control
• Bluetooth connection for monitoring and control via the VictronConnect app or VE.Can connection in combination with GX-
Devices such as the Cerbo GX or Ekrano GX and the VRM portal.
• Display of cell voltages and temperatures also on GX devices and the VRM portal.
• The integrated battery monitor provides real-time data such as charge level, voltage, current, historical data, status information and more.
• Diagnosis at a glance with instant display.
DVCC control loop and ATC/ATD contacts
• Compatible Victron inverters/chargers, the Orion XS 12/12-50A DC-DC battery charger and solar charge controllers
automatically controlled via a connected GX device and DVCC.
• The ATC/ATD contacts can be used to control other chargers and devices that have remote on/off switching.
Programmable relay
• It can be used either as an alarm relay (in combination with the pre-alarm) or to control an alternator via its external regulator (ignition cable).

Lynx Smart BMS NG 1000 A

• It offers an ATC mode for the alternator, which allows for safe disconnection of the alternator before disconnecting the battery.
becomes.

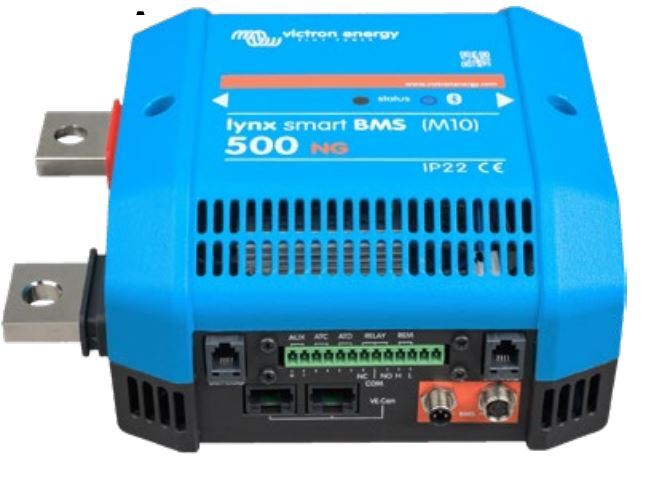

AUX input
• Integrated auxiliary power supply (1.1 A at system voltage) for powering certain loads (i.e., a GX device) according to
the shutdown of the BMS.
• Automatic shutdown of the BMS and the AUX connection if within 5 minutes of a low-voltage event
No charging voltage is detected.
VE.Can and NMEA 2000 data communication
• Easy connection and communication with GX devices via VE.Can using a standard RJ45 network cable.
• Integration into boat networks via the NMEA 2000 protocol (requires a VE.Can to NMEA 2000 micro-C connector cable).
Monitoring of Lynx distributor fuses
• Monitors the status of the fuses of up to 4 connected Lynx distributors via VictronConnect or GX devices.
• Receives alarms when fuses have blown.
Parallel redundant Lynx Smart BMS
• The new parallel redundancy feature for the Lynx Smart BMS and Lynx Smart BMS NG series allows multiple Lynx BMS units to be used in a single installation. Each unit has its own battery bank, and together they form a single redundant battery system. Up to five BMS units can be connected in parallel.
