Copy of Victron Orion-Tr Smart 24/12-30A non-isolated DC-DC converter #1

VictronSKU: ORI242440140

Price:
Sale price€210,51 EUR Regular price€273,70 EUR

Tax included Shipping calculated at checkout

Description

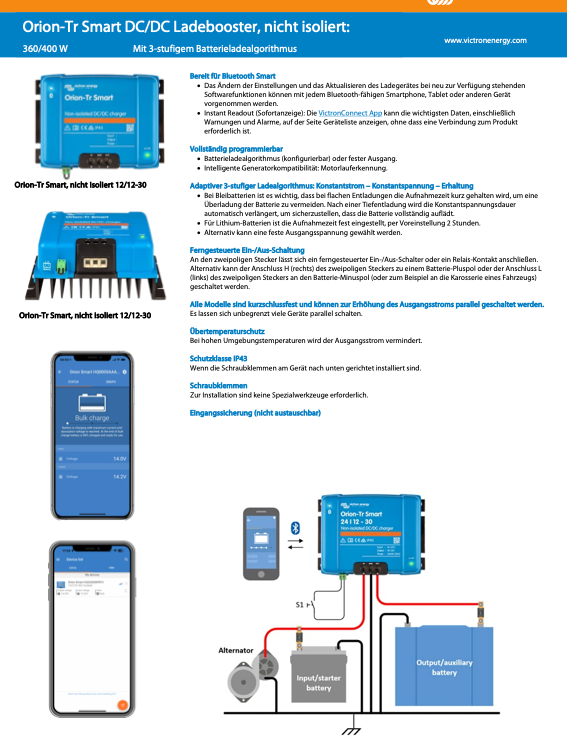

The Orion TR-Smart DC-DC from Victron Energy is a professional, DC to DC adaptive 3-stage charger with integrated Bluetooth, known in the market as a battery-to-battery (B2B) loader. The charging booster is suitable for use in double battery systems in vehicles or on boats, in which the alternator and the start battery are used for charging the service battery. The charger can be used in 12V or 24V systems and is suitable for both lead and lithium batteries. Models up to 400W are available and many devices can be switched in parallel to increase the output power.

Characteristics:
-
Suitable for Bluetooth Smart
- fully programmable
- Adaptive 3-stage loading algorithm
-remote/shutdown
- Short -circuit -resistant
- Parallel circuit possible to increase the output current possible
- over -temperature protection
- Protection class IP43

    Bluetooth smart:
    Monitoring, changing the settings and updating the charger for newly available software functions can be carried out with any Bluetooth-enabled smartphone, tablet or other devices.

    Adaptive 3-stage loading algorithm: Constant flow - constant voltage - maintenance
    - With lead batteries, it is important that the recording time is kept short in flat discharges to avoid an overload of the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery charges completely.
    - The recording time is fixed for lithium batteries, 2 hours by default.
    - Alternatively, a fixed output voltage can be selected.

      Long-distance/shutdown:
      A remote-controlled on/off switch or a relay contact can be connected to the two-pin connector. Alternatively, the connection H (right) of the two-pin connector can be switched to a battery plus pole or the connection l (left) of the two-pin connector to the battery minus pole (or for example to the body of a vehicle).

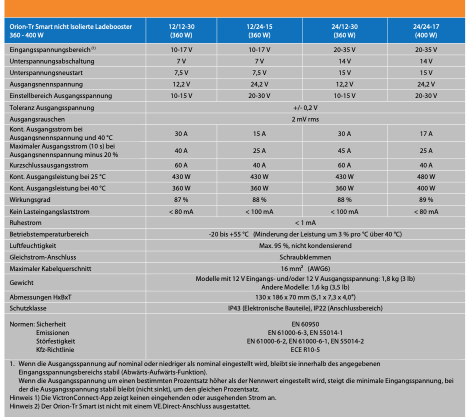

      Technical data:
      -
      Input voltage area: 20-35 V
      - Output line tension: 12.2 V
      - Setting range output voltage: 10-15 V
      - Tolerance Output voltage: ± 0.2 V
      - Continue initial current for the output tension and 40 °: 30 a
      - Continue output power at 40 ° C: 360 W
      - Operating temperature range: -20 ° C - +55 ° C
      - Weight: 1.8 kg
      - Dimensions: 130 x 186 x 80 mm

        Scope of delivery:
        1x Victron Energy Orion-TR Smart DC/DC chargingbooster 24/12-30A (360W) Ori241236140
