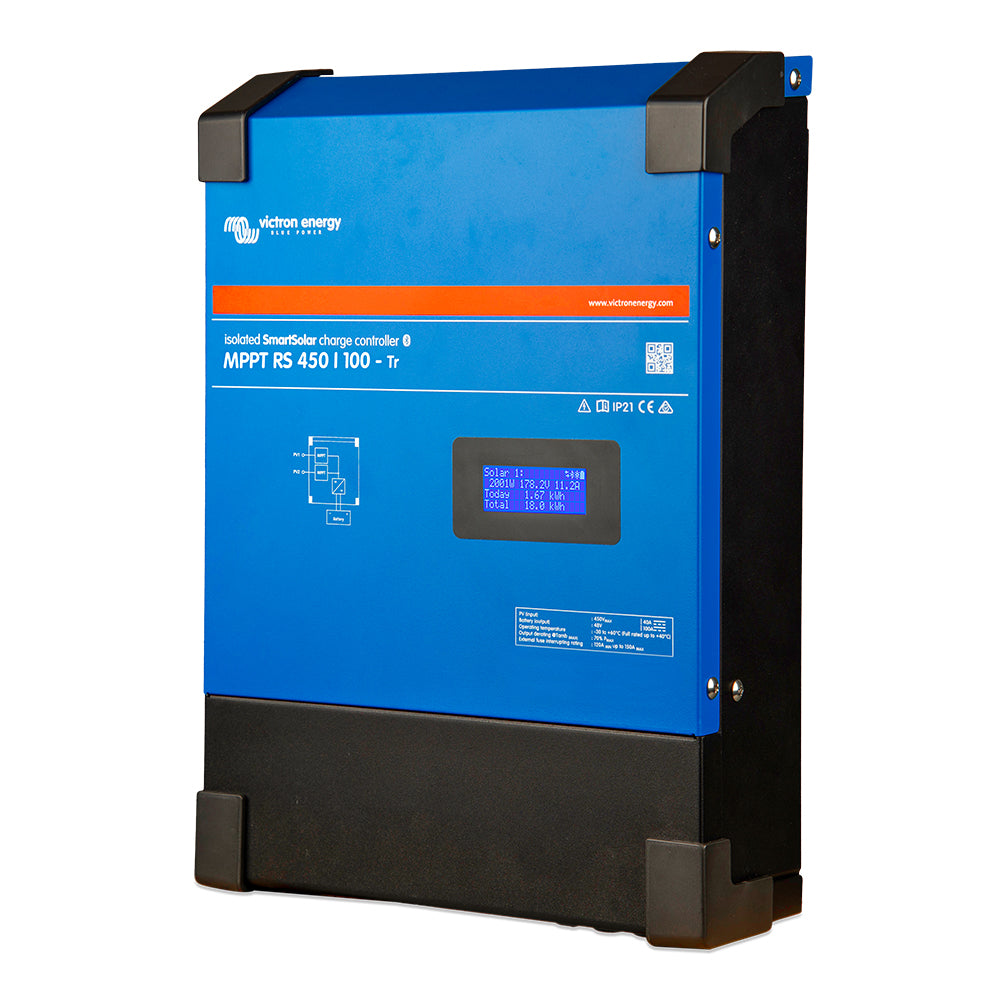

Victron SmartSolar MPPT RS 450/100 MC4 48V charge controller

Victron EnergySKU: SCC145110510

Price:
Sale price€927,01 EUR Regular price€1.406,58 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Victron Energy MPPT RS SmartSolar is a 48V solar charge controller with a PV input voltage of up to 450 VDC and an output current of 100A. It is used in grid-tied and off-grid solar applications where maximum battery charging power is required.

Characteristics

  • With ultra-fast Maximum PowerPoint Tracking (MPPT)
  • Multiple independent MPPT tracking inputs
  • Isolated PV connections for added safety
  • Large MPPT voltage range
  • Lightweight, efficient and quiet
  • Integrated display and Bluetooth communication
  • PV insulation resistance monitoring for safety at higher voltages
  • VE.Can and VE.Direct connection
  • I/O connections

Configure and monitor using the VictronConnect app or the VRM portal.

The integrated Bluetooth Smart connection allows for quick monitoring and configuration of settings via the app. The integrated 30-day history displays the individual performance of each MPPT tracker. The app allows you to view data such as battery voltage and current, PV voltage and current, historical data, and trends. The VictronConnect app is available for Android, iOS, Windows, and macOS.
When the solar charge controller is connected to a GX device and the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.

Additional units connected in series

The SmartSolar RS charge controller is equipped with VE.Can bus connectors. This enables communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply daisy-chained using an RJ45 cable. When connected, all individual charge controllers synchronize their charging stages. You can also send your data to a GX device (such as the CerboGX) for monitoring via the same cable.

Technical data

  • Battery voltage: 48V
  • Nominal charging current: 100A
  • Max. charging power: 5.8kW at 57.6V
  • Loading algorithm: multi-stage adaptive (adjustable)
  • Max. DC PV voltage: 450V
  • MPPT operating voltage range: 80-450V
  • Number of trackers: 2
  • Max. PV operating input current: 18A per tracker
  • Protection rating: IP21
  • Dimensions: 440 x 313 x 126 mm
  • Weight: 7.9 kg

Scope of delivery:

1x Victron SmartSolar MPPT RS 450/100 48V charge controller

Datasheet

System voltage

48V

EAN

8719076049319

Manufacturer Part Number

SCC145110410

Solar module voltage max 153

450 V

Weight

7.9 kg

Dimensions (LxWxH)

440 x 313 x 126 mm

Protection class IP

IP21

Solar module current max 154

18A

max. charging current

100 A

Manufacturer

Victron Energy
