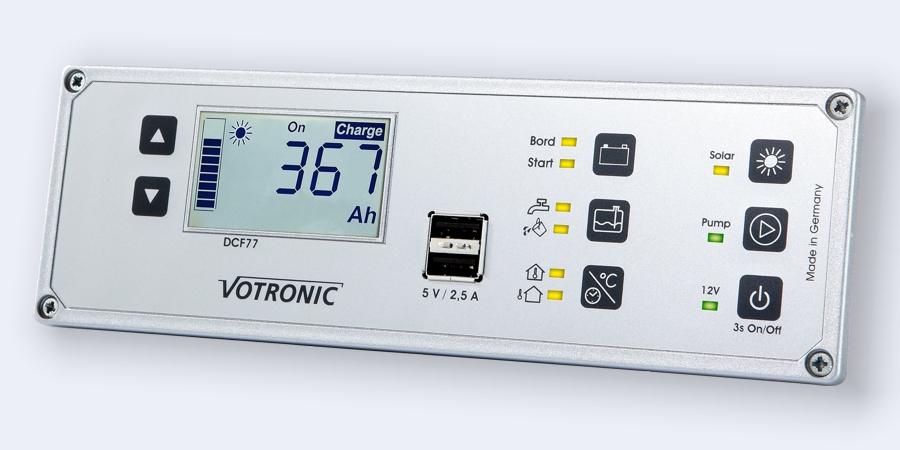

VOTRONIC VPC Jupiter 100

VotronicSKU: 5747

Price:
Sale price€285,00 EUR Regular price€366,20 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Multi-panel system for motorhomes in 3 different versions

The VOTRONIC Power Control (VPC for short) is an innovative multi-panel system for motorhomes that combines the most important functions and information in one device in a user-friendly manner. The information is shown on a bright, white illuminated graphic display. The values ​​displayed in large format are easy to read in all lighting conditions, even from a distance. Colored LEDs indicate the selected function at all times. The individual versions differ in their range of functions, which is designed for the specific requirements of the different vehicle types. While the Jupiter version leaves almost nothing to be desired in terms of energy supply and fill levels, for example, the Merkur version is particularly recommended for more compact vehicles that often do not have fixed tanks.

VPC Terra and Jupiter can each be equipped with 3 tanks (e.g. indoor/outdoor tank, summer/winter operation, additional tank, etc.). Individual switches 2xUM are suitable for switching, eg switch panel 16 AS item no. 1289 or switch panel 2x16 AS item no. 1291

All devices have at least one voltage display for the on-board and starter battery and a switching output for an external relay as the main switch. A switchable alarm device (beeper) on the panel as well as a message in the display draw attention to when an adjustable energy threshold has been undershot and the main switch will switch off automatically in a few seconds to prevent deep discharge of the battery.

The three versions differ in terms of functionality as follows:

battery Solar Main tank pump temp thermo Clock USB

VPC Terra

Point Point Point Point Point - - - -

VPC Mercury

Point Point Point - - - Point Point Point

VPC Jupiter

Point * Point Point Point Point Point - - Point

battery Voltage display in V
the board and starter battery
with undervoltage protection for the on-board battery
Main Main switch for on-board supply
via switching output
(e.g. via Switch Unit 40 or Switch Unit 100 )
battery * Only VPC Jupiter with smart shunt :
Battery computer for the on-board battery

(including battery voltage starter battery)
  • Battery voltage on-board battery in V
  • Battery current in A (+ = charging / - = discharging)
  • Battery capacity in Ah and %
  • Remaining time in hours until the programmed switch-off threshold is reached
Solar Solar computer for all VOTRONIC solar controllers from 2014 and VBCS Triple
  • Current solar power in W
  • Current solar current in A
  • Invited solar capacity in Ah
  • Charged solar energy in kWh
  • Values ​​Wh/kWh and Ah are added up, displayed and can be individually reset to "zero".
tank Level display in %
for fresh water and waste water tank
pump Switch for the fresh water pump
max. 16A (potential-free output)
thermo

Clock

USB
thermometer
Indoor and outdoor thermometer in °C
including 1 temperature sensor each


Clock
Time in 24-hour format


USB double charging port
5V/2.5A
temp thermometer/clock
Combined function for inside and outside temperature in °C including temperature sensors and time in 24-hour format.



Catalog

motorhome

off-road

device type Art.-
No.
nominal voltage
board battery

[V]
Electricity-
admission
[mA]
switching current
pump
maximum [A]
Dimensions
(WxHxD)
[mm]
installation dimensions
[mm]
VPC Terra 1 5741 12/24 6 - 60 16 200x65x28 185x57x22
VPC Mercury 2 5744 12 6 - 60 - 200x65x30 185x57x24
VPC Jupiter 100 3 5747 12 13 - 60 16 200x65x30 185x57x24
VPC Jupiter 200 3 5748 12 13 - 60 16 200x65x30 185x57x24
VPC Jupiter 400 3 5749 12 13 - 60 16 200x65x30 185x57x24
Marks of approval: CE, E-test (EMC/vehicle directive)
Scope of delivery 1 : Fastening screws, connection cable for Votronic solar controller or VBCS Triple 5m long, instructions
Scope of delivery 2 : Fastening screws, connection cable for Votronic solar controller or VBCS Triple 5m long,
2 temperature sensors (inside & outside), instructions
Scope of delivery 3 : Measuring shunt 100 A, 200 A or 400 A including smart shunt cover , fastening screws,
1 connection cable each 5m long for Votronic solar controller or VBCS Triple and for Smart-Shunt, 2 temperature sensors (inside & outside), instructions
