Mastervolt ChargeMaster Plus 12/35-3 12V 35A battery charger 3 battery banks

The Mastervolt ChargeMaster 12/35-3 (MPN 44010350) guarantees fast and complete charging of your batteries, and can charge up to 3 battery banks at the same time. The Mastervolt ChargeMaster series is intended for both semi-professional and professional use and, with the ChargeMaster, offers a solid solution that can also be integrated into existing systems. The 3-stage+ charging technology ensures a fast and complete charging process, while the limited generator capacity is used to the maximum thanks to the cos phi 1 regulation.

Get the most out of your battery with the ChargeMaster, which can be connected and charged anywhere in the world thanks to its wide input voltage range (90V - 265V). Mastervolt's ChargeMaster guarantees fast and full charging of your batteries, no matter where you are. Thanks to its combined functionality, the ChargeMaster can charge multiple battery banks at the same time. In addition, all ChargeMasters can be easily connected to a MasterBus network with just one cable and one connector. You also have the option to monitor, configure or control your system from a central location, locally or remotely.

Important product features of the ChargeMaster 12/35-3

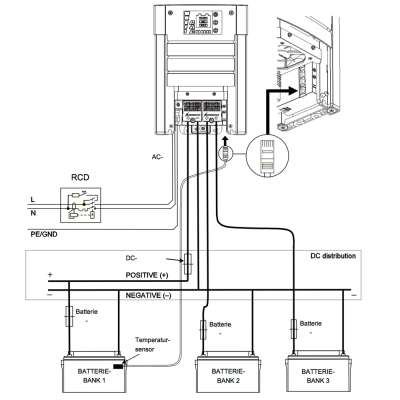

• can charge up to three battery banks at the same time (max. total charging current (35A))
• All 3 battery outputs are equivalent, so depending on the load on the other outputs, they can supply up to 35A charging current
• 3-stage+ charging technology for a fast and complete charging process
• recommended battery capacity 70Ah - 350Ah 12V
• Current control function is available via the master bus (provision of the key figure via the current charging current in the master bus network)
• Masterbus compatible, integration into a Masterbus system enables remote control and full control of the ChargeMaster, so you could, for example, control and monitor this device centrally via the Masterview Easy 3.5 inch touch panel (MPN 77010305).
• Auto-ranging ensures automatic range adjustment, allowing you to charge at maximum power anywhere in the world
• CSI/DC alarm for error messages possible via Mastervolt potential-free contact (MPN 77030500).
• Output voltage 12V, charging current 35A, degree of protection IP21
• integrated Vario fan ensures temperature-controlled, energy-saving cooling and low self-consumption
• fully automatic voltage equalization

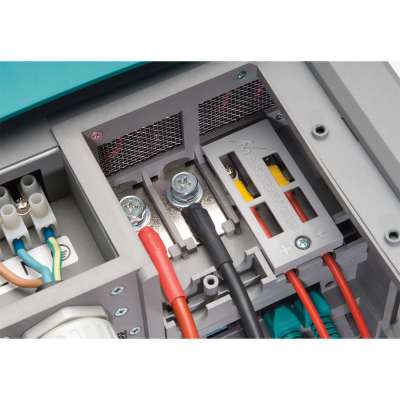

• AC cable and battery connection cable already pre-assembled
• Charges Gel, AGM, Wet Cell and Li-Ion batteries
• LED display directly on the device provides information about the current operating status
• In conjunction with the MasterBus USB Interface (MPN 77030100), the ChargeMaster can be connected to a PC/notebook and very conveniently controlled and configured using the free MasterAdjust software
• very easy installation and quick start-up
• Battery temperature sensor (MPN 41500500) already included in the scope of delivery
• Quality Made in the Netherlands

Mastervolt paves the way for a system with no weak points, guaranteeing you the most reliable and quietest power supply. Whether for leisure or professional purposes, with Mastervolt you have continuous power that you can always rely on... The power for more independence.

Scope of delivery:?? 1x 44010350 Mastervolt Charge Master 12/35-3

1x 44500500 Mastervolt battery temperature sensor with 6m cable

operation manual
