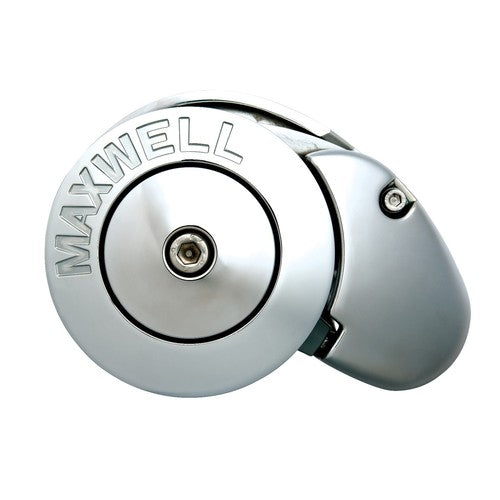

Maxwell vertical anchor winch without Spill RC6, 12V

VetusSKU: P102569

Price:
Sale price€1.190,00 EUR

Tax included Shipping calculated at checkout

Versand in 1-3 Werktagen

Description

Maxwell Verti. Anchorwinde without Spill RC6, 12V

Features:

The new stainless steel-RC6 series uses 6 mm/7 mm (1/4 ”) chains, spelled up to 12 mm (1/2”) three-strand or 8-brait (braid) rope.
The RC6 includes Maxwells Revolutionary and Patented New Wave Design chainring.
The linear vertical gear and engine ensure quick and easy installation either in the shipyard or by the customer on your own.
An inexpensive, powerful and good -looking winds; The RC6 is built on durability and trouble -free for many years.
The RC6 is a low profile unit (not an optional anchor spill drum).
Maxwell Ankerwinden must be used in connection with a chain stopper and/or alternative stop buffer devices to take the load off the wind while the anchor is set. The chain stopper and the alternative stop buffer system should also be used to secure the anchor in the fully raised position while driving.

Standard equipment required for bidirectional direction control:

On/down remote control board
Two-direction control (double relay)
Security/dividing switch panel
Emergency "Free Fall" activation lever

Options:

Auto Anchor Equipment
Compact remote control
Foot switch
Chain stopper
Chain stop buffer

Specifications Model RC6:

Maximum traction 350 kg
Short -part chain 6 - 7 mm
Rope diameter (nylon) 12 mm (3-occupied or with 8 strands)
Chain speed 24 m/min (with normal workload)
Rope speed 21 m/min (with normal workload)
Power supply (DC voltage) 12 V
Engine power 500 W
Net weight 8.5 kg
