Offgridtec® Mono 200W V2 Solar Panel 30V Black Frame

OffgridtecSKU: 3-01-018400

Price:
Sale price€94,90 EUR Regular price€129,26 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Mono 200W Black Frame SolarModule V2 from Offgridtec has the 5 bus bar technology and works with monocrystalline solar cells with a high efficiency of 22.3%. Thanks to its 30V operating voltage, it is ideal for a variety of application areas. This constellation ensures high performance and reduced loss of yield due to voltage waste. It is the new and improved version of the popular Mono 200W solar module and, thanks to the latest production, guarantees a consistently high quality and performance with a maximum lifespan.

  • Proven quality directly from offgridtec
  • Monocrystalline A-grade solar cells
  • Cell efficiency of over 22%
  • 5 busbar technology

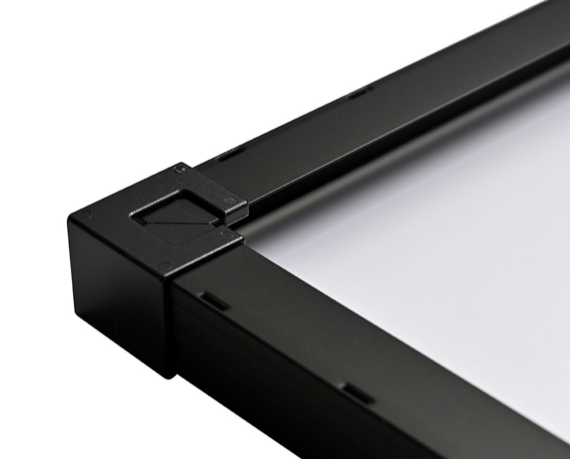

  • Frame: black
  • Extremely resistant ESG glass, the module can be used even in the most adverse environmental conditions
Solar module ready for operation immediately

Monocrystalline modules
Monocrystalline solar modules are an advanced form of photovoltaic modules that are made from a single crystal grille. This crystalline structure enables higher efficiency when converting sunlight into electrical energy compared to other types of solar modules. The monocrystalline cells are characterized by their even structure, which enables a more efficient movement of the load carriers. This leads to better performance, especially in situations with a limited space, since monocrystalline modules have a higher performance density.

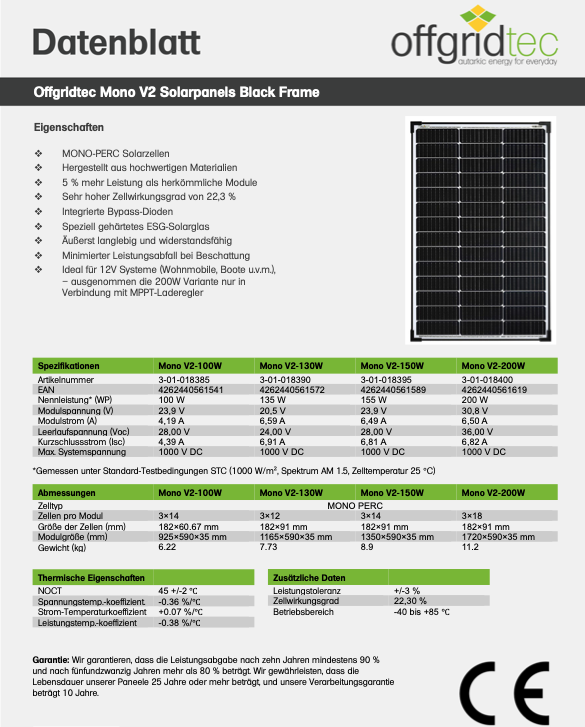

Technical data
-
Performance: 200W
- Nominal voltage (VMP): 30.8V
- idle span (VOC): 36 V
- nominal current: 6.50 a
- efficiency: 22.30%
- Short circuit current (ISC): 6.82 a
- Max. System voltage: 1000 V DC
- permissible ambient temperature: -40 ° C - +85 ° C
- Dimensions: 1720 x 590 x 35 mm
- Tolerance: +/- 3%
- Weight: 11.2kg

    Scope of delivery:
    1x offgridtec mono 200w V2 solar module 30V black frame

    GPSR Information

    Hersteller
    Name: off-grid tec
    Anschrift: In the industrial park 11
    PLZ, Ort: 84307, Eggenfelden
    Land: Germany
    Email: info@offgridtec.com
