Description
It is the revised version of the popular OLP 10W 12V solar module (MPN 3-01-013100). It offers optimal performance and a compact design for flexible installations. In the new version, the solar modules are equipped with improved solar cells and 11 bus bars, which leads to an improved lighting and reduces the effect of partial shading.
Unique selling points of the OLP series from Offgridtec®
- Unique modulus design with overlapping wafer arrangement (overlapping design)
- Innovative Perc-Technology
- Less loss of partial shading
- Modern, homogeneous optics without visible conductor tracks
- High performance with small dimensions
- Cell efficiency of over 22%

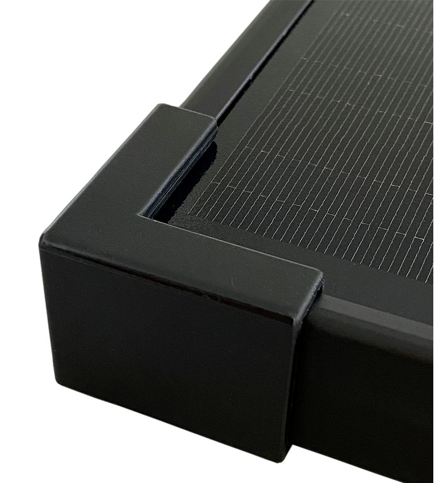

Overlapping design
The overlapping in the wafer design of monocrystalline solar modules is crucial for their extraordinarily high module efficiency. It enables more precisely use of the available area, minimizes performance losses through reduced cable resistance and limited material losses during production. The targeted arrangement of the wafers effectively minimizes spaces between them, thereby increasing the power density and optimizes the overall efficiency of the modules. This method is therefore of particular advantage for solar applications in rooms with a limited area, since it maximizes the energy generation per unit unit.
Innovative Perc-Technology The Perc-Technology in offgridtec OLP solar modules increases the efficiency of the solar cells significantly. It uses a dielectric layer with tiny laser -drilled holes to reflect on light back in the cell. This not only improves absorption in longer wavelengths, such as flat radiation angles or clouds, but also offers additional opportunities for photons to create electricity. This technology optimizes the energy yield over different lighting conditions, lowers the total costs and maximizes the yield per unit of area.Technical data:

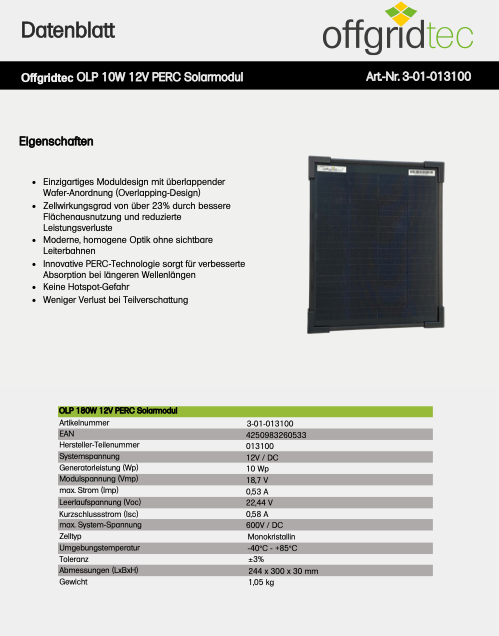

- Generator performance: 10 WP
- Module voltage (VMP): 18.2 V
- Max. Electricity (IMP): 0.55 a
- Idle voltage (VOC): 21.48 V
- Short circuit current (ISC): 0.58 a
- Max. System voltage: 600V DC
- Cell type: monocrystalline Perc
- Performance tolerance: +/- 3%
- Operating temperature: -40 to +85 ° C
- Cells per module: 4 x 8
- Cell size: 52.5 x 33.7mm
- Cell efficiency: 22.68%
- Accessories: XC0806

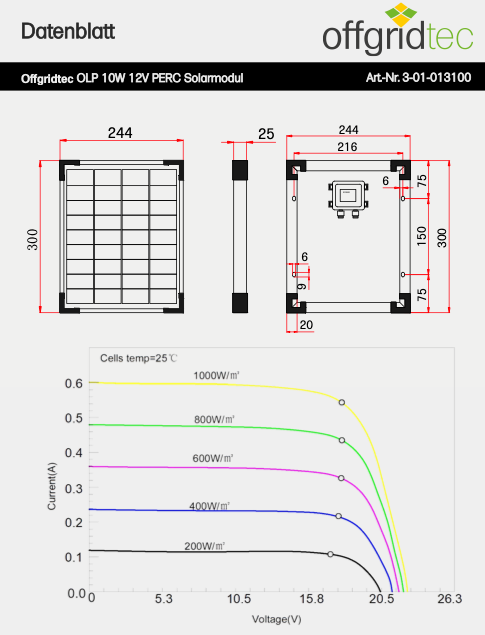

- Dimensions: 250 x 310 x 25mm
- Weight: 0.98 kg
Scope of delivery:
1x offgridtec® OLP 10W V2 Solar Panel 18.2V shingle technologyGPSR Information
