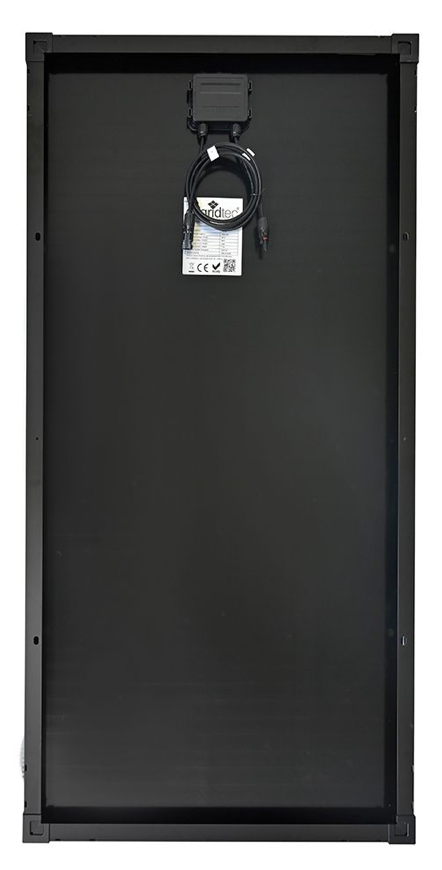

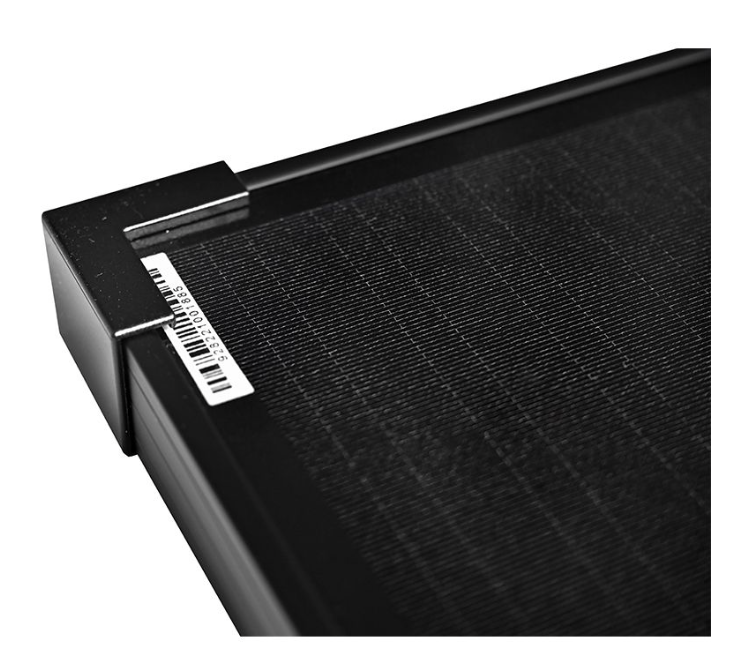

Offgridtec® OLP 180W V2 Solar Panel 23.4V shingle technology perc

OffgridtecSKU: 3-01-018485

Price:
Sale price€119,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The
Offgridtecolp 180W V2 is a powerful solar module in full black design. With its overlapping wafer design and the advanced Perc-Zell technology ensures an outstanding performance and is ideal for various applications that require a powerful energy source.

It is the revised version of the popular OLP 180W 12V solar module (MPN 3-01-013105). The increased maximum system voltage of 1000 VDC extends integration options into existing and new solar systems, while the increased maximum electricity improves the overall output of the module. In the new version, the solar modules are equipped with improved solar cells and 11 bus bars, which leads to an improved lighting and reduces the effect of partial shading.

Unique selling points of the OLP series from Offgridtec®

  • Unique modulus design with overlapping wafer arrangement (overlapping design)
  • Innovative Perc-Technology
  • Less loss of partial shading
  • Modern, homogeneous optics without visible conductor tracks
  • High performance with small dimensions
  • Cell efficiency of 22.68 %

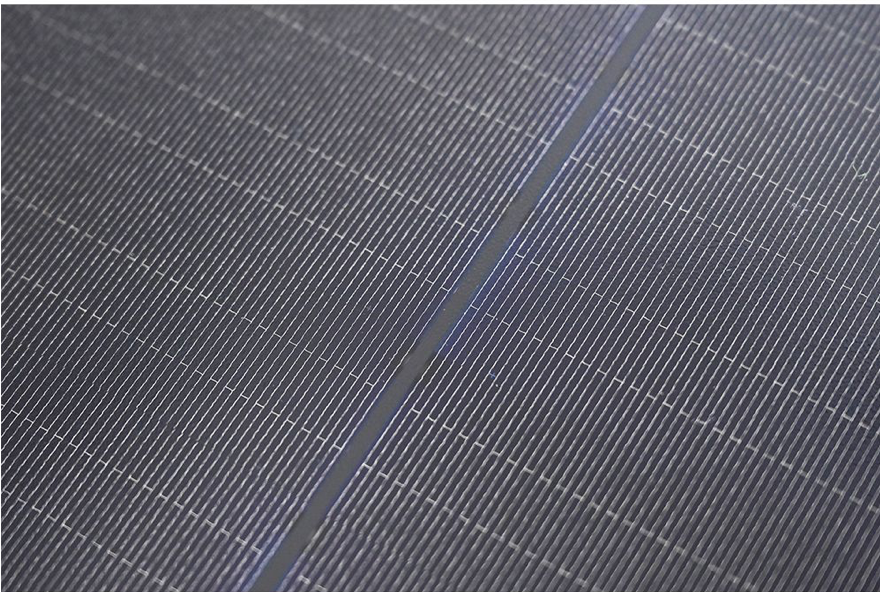

Overlapping design

The overlapping in the wafer design of monocrystalline solar modules is crucial for their extraordinarily high module efficiency. It enables more precisely use of the available area, minimizes performance losses through reduced cable resistance and limited material losses during production. The targeted arrangement of the wafers effectively minimizes empty spaces between them, thereby increasing the power density and optimizes the overall efficiency of the modules. This method is therefore of particular advantage for solar applications in rooms with a limited area, since it maximizes the energy generation per unit unit.

Innovative
Perc-Technology

The
Perc-Technology, also known as a passivated emitter Rear Cell or passivated passivation, is a key technology in the offgridtec OLP solar modules that increase the efficiency of the solar cells. It creates a dielectric layer between the conventional aluminum metallization and the silicon wafer layer on the back of the cell. This layer is provided with a laser that creates tiny holes. This dielectric layer reflects light, which normally penetrates without creating load carriers to the back, back into the solar cell. This gives photons an additional chance to create electricity. The PercTechnology improves efficiency across different wavelengths, increases the likelihood that electrons contribute to electricity generation, and helps to reduce the system costs and increase the energy yield per area unit.

Technical data:

  • Generator performance: 180 WP
  • Module voltage (VMP): 23.4 V
  • Max. Electricity (IMP): 7.70 a
  • Idle voltage (VOC): 27.61 V
  • Short -circuit current (ISC): 8.16 a
  • Max. System voltage: 1000V DC
  • Cell type: monocrystalline Perc
  • Performance tolerance: +/- 3%
  • Operating temperature: -40 to +85 ° C
  • Cells per module: 3 x 41
  • Cell size: 210 x 33.7mm
  • Accessories: XC802 + 0.9m cable + MC4
  • Dimensions: 670 x 1435 x 35mm
  • Weight: 10.42 kg
  • Scope of delivery:

    1x offgridtec® OLP 180W V2 Solar Panel 23.4V shingle technology

GPSR Information

Hersteller
Name: off-grid tec
Anschrift: In the industrial park 11
PLZ, Ort: 84307, Eggenfelden
Land: Germany
Email: info@offgridtec.com
