Offgridtec® OLP 30W V2 Solar Panel 23V shingle technology perc

OffgridtecSKU: 3-01-018470

Price:
Sale price€21,00 EUR Regular price€30,23 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The 30W
Offgridtecolp V2 combines an overlapping wafer design with progressive Perc-Technology. Due to its small size, this module is extremely practical and perfect for 12V applications with limited space, such as portable solar charging devices, small motorhome or boat systems as well as similar applications that require compact but powerful energy source.

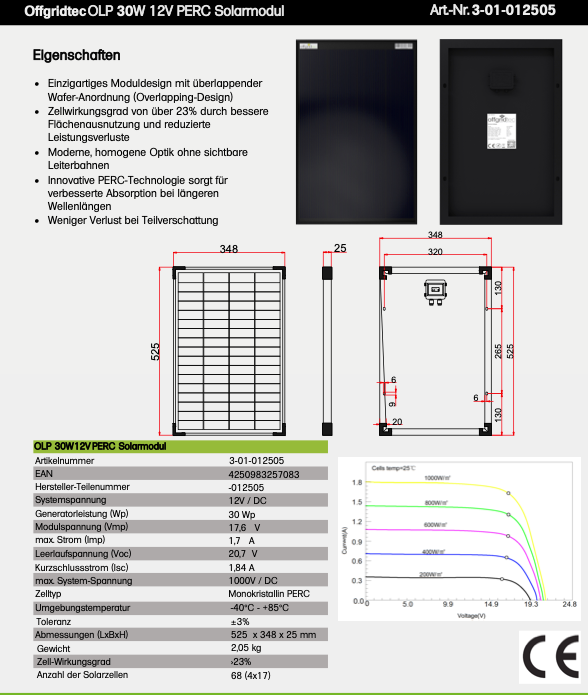

It is the improved version of the popular OLP 30W 12V solar module (MPN 3-01-012505).  The higher short -circuit current increases the overall performance of the module. In addition, the higher module voltage contributes significantly to the increased performance. In the new version, the solar modules are equipped with improved solar cells and 11 bus bars, which leads to an improved lighting and reduces the effect of partial shading.

Unique selling points of the OLP series from Offgridtec®

  • Unique modulus design with overlapping wafer arrangement (overlapping design)
  • Innovative Perc-Technology
  • Less loss of partial shading
  • Modern, homogeneous optics without visible conductor tracks
  • High performance with small dimensions
  • Cell efficiency of over 22%

Overlapping design

The overlapping in the wafer design of monocrystalline solar modules is crucial for their extraordinarily high module efficiency. It enables more precisely use of the available area, minimizes performance losses through reduced cable resistance and limited material losses during production. The targeted arrangement of the wafers effectively minimizes spaces between them, thereby increasing the power density and optimizes the overall efficiency of the modules. This method is therefore of particular advantage for solar applications in rooms with a limited area, since it maximizes the energy generation per unit unit.

Innovative
Perc-Technology

The
PercTechnology is an essential part of the offgridtec OLP solar modules, which increases the efficiency of the solar cells. It uses a dielectric layer that is provided with tiny holes by means of a laser to reflect on light back into the cell. This creates an additional possibility for photons to generate electricity. This technology improves efficiency via different light wavelengths, increases the opportunities for electrons to generate electricity and supports the total costs to reduce and maximize the energy yield per unit of space.

Technical data:

  • Generator performance: 30 WP
  • Module voltage (VMP): 23.9 V
  • Max. Electricity (IMP): 1.26 a
  • Idle voltage (VOC): 28.20 V
  • Short circuit current (ISC): 1.33 a
  • Max. System voltage: 600V DC
  • Cell type: monocrystalline Perc
  • Performance tolerance: +/- 3%
  • Operating temperature: -40 to +85 ° C
  • Cells per module: 3 x 14
  • Cell size: 105 x 33.7mm
  • Cell efficiency: 22.68%
  • Dimensions: 350 x 515 x 25mm
  • Weight: 1.96 kg
  • Scope of delivery:

    1x offgridtec® OLP 30W V2 Solar Panel 23.9V shingle technology

Perc
