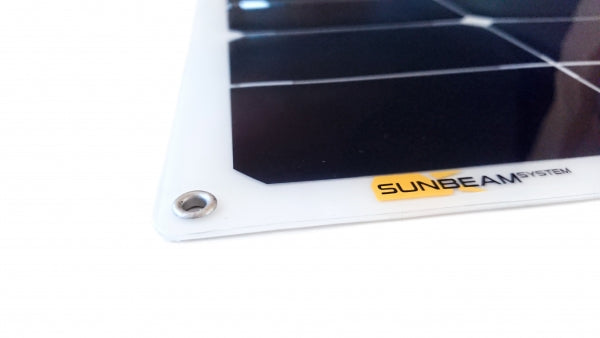

SUNBEAMsystem Nordic 54W Jbox

SUNBEAMsystemSKU: N54x53JB

Price:
Sale price€131,90 EUR Regular price€139,00 EUR

Tax included Shipping calculated at checkout

Versand in 1-3 Werktagen

Description

The Nordic series was one of the main reasons for founding SUNBEAMsystem: the vision to develop a solar module for northern regions with a perfect balance between price and innovation.

Nordic offers compact yet powerful solar panels with details designed for the demanding conditions at sea. All modules feature a special cell arrangement for better partial shading performance not found on competitors.

The Nordic models with the Flush addition are supplied without mounting holes, making them ideal for bonded applications.

  • Powerful and compact
  • Improved partial shading performance
  • Available in flush version
  • 2 year guarantee

Flexible panel, walkable coating, 2 year guarantee, 0.8 m cable, junction box

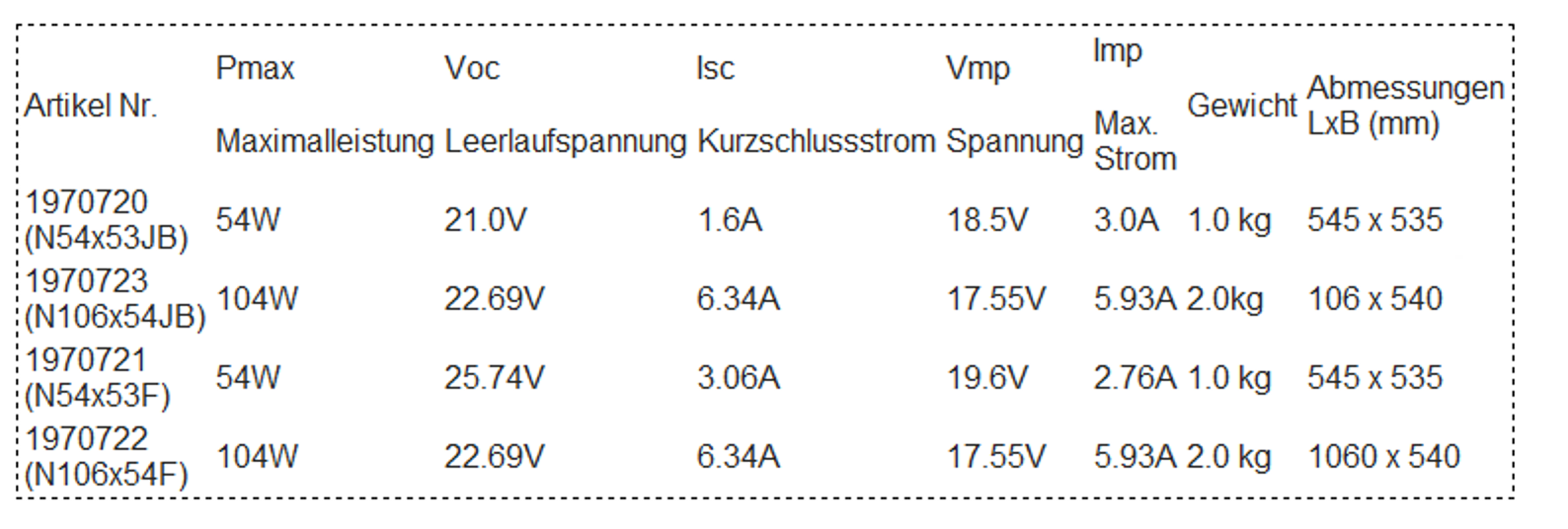

types

Article no.

Pmax

maximum performance

Voc _

open circuit voltage

isc

short-circuit current

v mp

tension

I mp

Max current

weight

Dimensions LxW (mm)

1970720 (N54x53JB)

54W

21.0V

1.6A

18.5V

3.0A

1.0kg

545x535

1970723 (N106x54JB)

104W

22.69V

6.34A

17.55V

5.93A

2.0kg

106x540

1970721 (N54x53F)

54W

25.74V

3.06A

19.6V

2.76A

1.0kg

545x535

1970722 (N106x54F)

104W

22.69V

6.34A

17.55V

5.93A

2.0kg

1060x540

Notes: All values ​​measured under standard test conditions; 1000W / m2, AM 1.5, 25 degrees Celsius, weight without cable. Temp Coefficient for Isc 0.05 (%/°C), Temp Coefficient for Voc -0.27 (%/°C), Temp Coefficient of Pmax -0.38 (%/°C). C100 is intended for rigid mounting and should not be used on a tonneau cover. For flexible use, we recommend the SP50Loxx or SP50.

Technical specifications

item description

Nordic 54W Jbox

Article no.

1970720

Dimensions

545x535mm

weight

1 kg

Pmax - Max power

54 w

Voc - Voltage open circuit

21.0v

Lsc - short-circuit current

1.6A

Vmp - Max system voltage

18.5V

Imp - Max current

3.0A

Ptol - Power Tolerance

+/- 5%

solar cells

Sunpower

Max sys voltage (incl. by-pass diode)

30V

cable length

1.5m

High shade tolerance

Yes

holes

-

Note: When connecting in series, always pay attention to the maximum permissible system voltage of the solar panel
