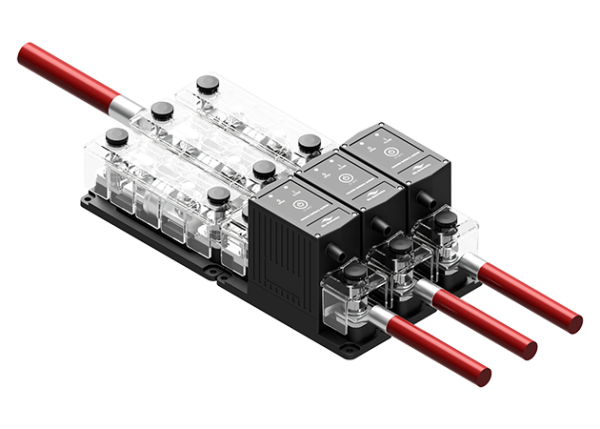

TBS Isolation Relay 12V500A Remote Battery Switch

TBS ElectronicsSKU: BAT-SB-TBS12V500A

Price:
Sale price€239,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The TBS 12V500A isolation relay can be used to switch circuits with high loads. At 12 volts, the relay can handle a continuous current of 500 amps. For a short-term continuous load of up to one minute, the relay can also withstand 1,000 amps. The peak starting current is 1,600 amps.

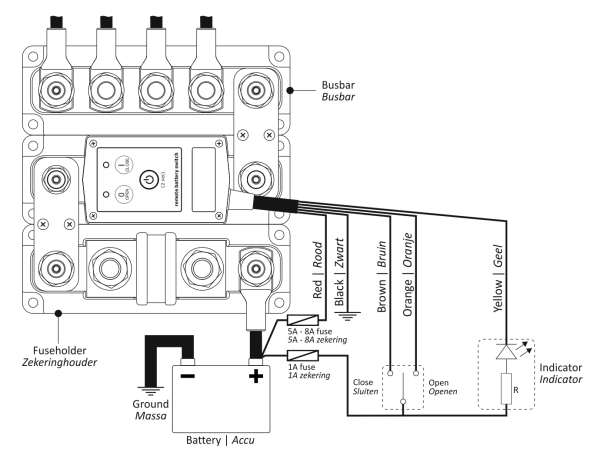

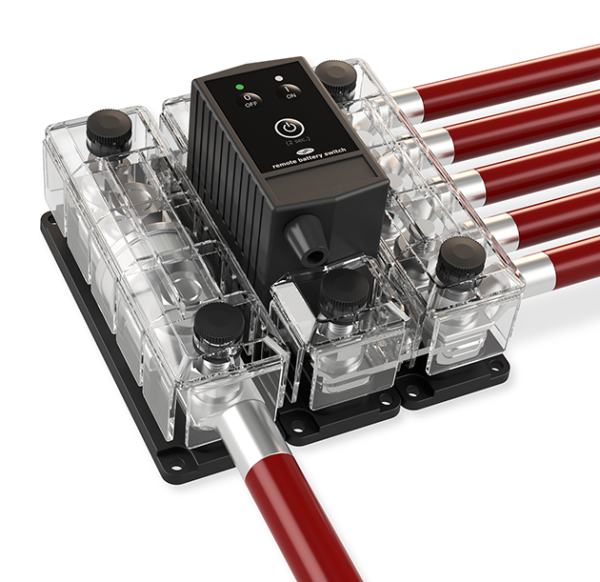

The relay can be controlled either via a button on the relay or via an optional remote control. The 40-centimeter-long control cables can be extended up to 15 meters.

The TBS 12V500A cut-off relay is ideal for use with the Nomia 12V100AH, Nomia 12V160AH, Nomia 12V210AH, and Nomia 12V340AH Super B battery types. For normal use in a motorhome or caravan, the use of a relay or protection circuit is mandatory; otherwise, the warranty and guarantee will be void. This relay allows you to fully utilize the performance of Nomia batteries. The TBS 12V500A cut-off relay ensures that the circuit is immediately interrupted in the event of battery problems. To do this, simply connect the control lines to the battery.

For less power-hungry applications up to 190 amps, a cheaper, bistable relay is available in our shop.

Technical data

  • Weight: 860 g
  • Supply voltage range: 7 – 17 V DC
  • Supply current: < 4 A / 1 mA (sleep mode)
  • Operating temperature: -20 °C to 60 °C
  • Fastening: 4 screws
  • Dimensions (WxDxH): 150 x 50 x 100
  • Protection class IP65
  • Maximum switching voltage: 60 V
  • Rated current: 500 A (0 – 34 V DC) / 350 A (35 – 60 V DC)
  • Starting current: 1,000 A (1 minute)
  • Peak current: 1,600A (0-34V DC / 1,200A (35-60V DC)
  • Mechanical life: 100,000 cycles
  • Electrical life: 10,000 cycles (at 400 A/24 V/ohmic)
  • Connecting bolt: M10
  • Remote control: via control cable (40 cm, max. 15 m)
  • Certificates: EMC: 2014/30/EU & UNECE 10, Low voltage directive 2014/35/EU, RoHS 2011/62/EU, ISO 8846
