The q Experience Q2 card plotter in 10 inch MfD

The Q ExperienceSKU: N4S-10260

Price:
Sale price€2.329,00 EUR Regular price€2.599,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

TheQ2 multifunction displays from The Q Experience are a"All-in-One" concept from Finland With directly integrated features. SIM card slot for free Sim Wahl. With integration of the SIM card, Geofence is activated theft alarm and tension alarm.
HDMI output for display on TV monitor. Wifi. Nmea2000. Intergated radio/audio module for connecting 2 speakers and Bluetooth streaming - optional cable set required.
Compatible with Navionics cards.
With the optional Guard cable set, further alarm functions. With optional Q-Digital Switch cable set remote circuit via app.

Highlights of the Q2 card plotter:
 - The most important components installed on the display, which makes installation easier.
-FM/DAB/Bluetooth radio/audio module with 3 loudspeaker pairs (2 loudspeaker couples in parallel
- Sim cards slot for external mobile communication
- own SIM card usable
- With SIM card Geofence theft alarm and alarm in the event of a drop in voltage.
-FM/DAB/Bluetooth radio/audio module, only optional cable set required

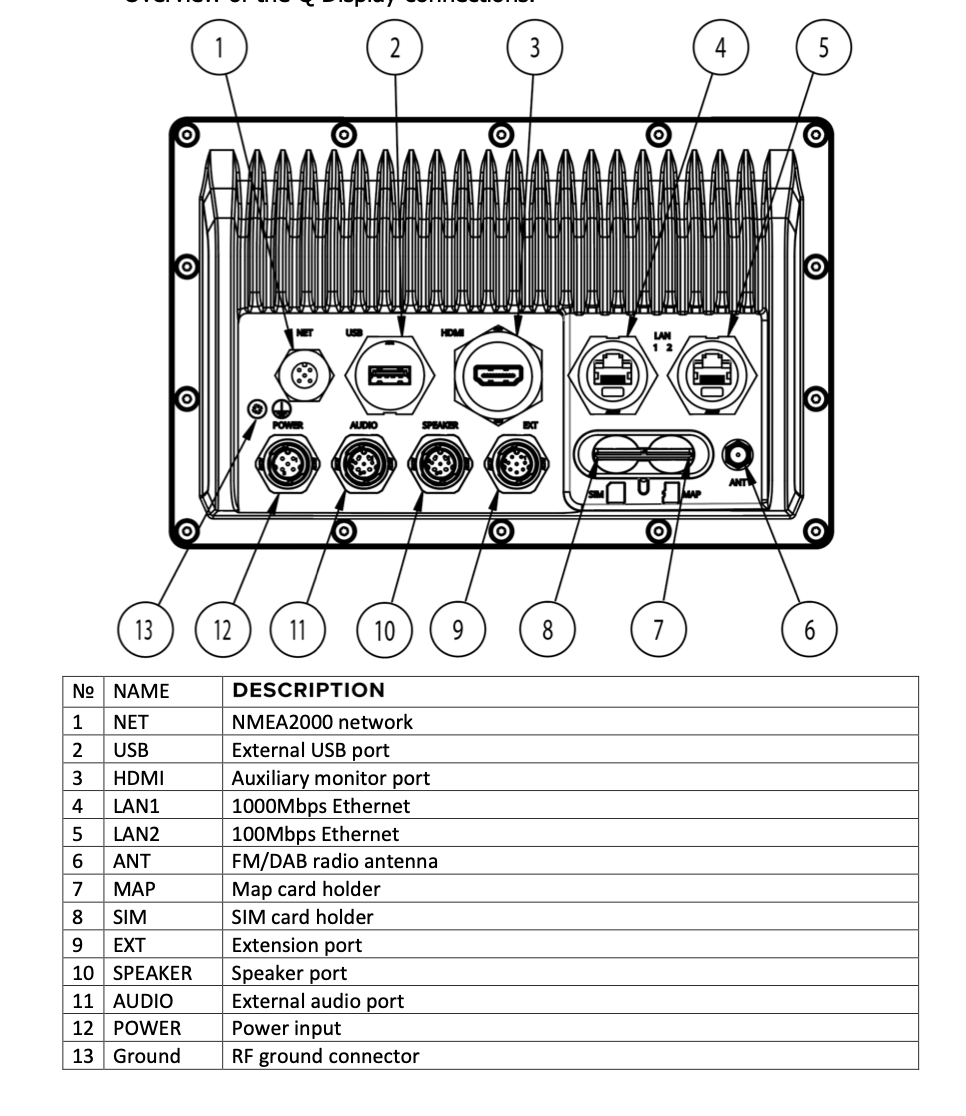

- HDMI connection
- Network connection (2)
- nmea2000
- USB
- 1 input for tank sensor integrated (0-190 ohm)
- Second cheap and fully functional display can be connected. Use the computer of the first display.
No 2 complete ploters required.
- Navionics Seekarten
- Weather information via SIM card
-With optional Q Guard cable set bilgen alarm, engine theft alarm, monitoring land connection, without annual costs except customer-specific SIM.
 -With optional Q Digital Switch module, consumers switch from external to app, without annual costs except customer -owned SIM.

navigation
The Q display is compatible with the world's leading maps Navionics+ and Navionics Platinum+. The cards from Navionics offer an excellent selection of levels and functions, which makes them perfect for both the user who wants to see everything, as well as for the user who only wants the essential. Due to their daily updates, which can be applied wirelessly on the Q2 display, the cards from Navionics are also the safest on the market, so that they always have the latest map data available.

entertainment
Booting shouldn't be too serious - it should be fun. The Q2 display takes entertainment seriously so that you can relax. From streaming from music to parts of their trips with their friends - the Q2 display covers everything. With the built-in amplifier and the Bluetooth connectivity, you can stream music seamlessly. The 4G connectivity of the Q2 display ensures that the party continues even when the data reception of your phone is bad.
Regardless of whether you work or play, the Q2 display has superior antennas compared to most handheld devices-which you can use. By activating the hotspot internet release on the Q2 display, you can ensure that everyone on board has access to stable and fast internet throughout the trip.
In order to give you an advantage on your fishing trips, we have worked with Airmar to develop a fish finder especially for the Q2 display. The Fish Finder not only finds swarms of fish, but also gives them a clear representation of the sea floor, gives them an exact depth display and measures the water temperature for this early summer swimming excursions

Connectivity
In today's world everything is connected - this should also apply to your boat. The Q2 display is constantly connected to the Internet via its internal 4G modem, even if it is switched off. So that the Q2 display is really always connected. In this way you can access the status of your boat at any time via the Q app, and the Q Guard lets you know that your boat is safe on the docks. The built-in WLAN modem gives you the opportunity to share a stable 4G signal or simply connect the Q2 display to the port of the port.
The use of your phone at Rauer See is neither ideal nor safe. With our Bluetooth connectivity, you can control your music on the Q2 display and receive your notifications directly on the screen.
Sometimes nothing works about old classics, the Q2 display is equipped with FM/DAB connectivity that gives you access to all your favorite broadcasters.
Of course, the Q2 display also communicates locally via the NMEA2000 network. This gives you access to all of your engine data such as speed, fuel consumption, trim angle and error codes. The NMEA2000 standard also gives you certainty about which accessories are compatible with the Q2 display and which is not.

Safety
Booting is fun - as long as it is safe. The Q2 display ensures that you have all the necessary information to make your boat trip as safe as possible.
The key to safe boating is planning. In order to make route planning as comfortable as possible, we enabled you to plan your routes at home so that you have more time to concentrate on boating. Sometimes spontaneous trips are great, then a safe route can be calculated in no time with the auto-route function in no time, with regard to the size of your boat.
The weather cannot be controlled, but avoid. The Q2 display automatically warns you when the weather suddenly worsens. In this way you can safely dock before storms.

Technical specifications
navigation
Navionics+-and Navionics Platinum+cards with 3D mode, detailed sonar maps and depth shade.
Over-the-air updates.
Port-to-port routing
10 Hz GPS
Connectivity
4G/LTE
WLAN client and hotspot
Bluetooth le
Nmea2000
WIRELESS INTERNET ACCESS
Bus

Entertainment
2 x 20 W audio amplifier
Dual, stereo canal, cinch audio output (uninfluided)
FM/DAB radio receiver
Bluetooth
Hotspot network approval

Advertisement
Extremely resistant 3 mm glass, IPS-TFT with anti-reflex and anti-fingerprint coating
16 “resolution: 1920*1080 (Full HD) brightness type 1000cd/m2, at least 800 cd/m2 contrast ratio type 800, at least 600
10 “resolution: 1280*800 (WVGA) brightness type 850 CD/m2, at least 760 cd/m2 contrast ratio type 800, at least 600
12 “resolution: 1280*800 (WVGA) brightness type 850 CD/m2, at least 760 cd/m2 contrast ratio type 800, at least 600

GPSR Information

Hersteller
Name: Nextfour Solutions Oy
Anschrift: Kaurakatu 48
PLZ, Ort: 20740, Turku
Land: Finland
Email: q-support@nextfour.com
