Victron BlueSolar MPPT 150/60-Tr

Victron EnergySKU: SCC010060200

Price:
Sale price€271,14 EUR Regular price€404,60 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

TheVictron MPPT 150/60-TR belongs to the large family of BlueSolar MPPT charge controllerswithout Bluetooth and a wide range of services for the demanding user. Ultra-fast power tracking and automatic adjustment of MPP voltage at partial shading are just two of the many highlights of this device class. The devices of classes 150/45Tr to 150/100Tr are also available as a version with MC4 connectors on the solar side of the charge controller instead of screw terminals. In addition, this model is capable of parallel operation with other controllers of the same type.

VE-Direct options for programming, real-time data and history display
Apple and Android smartphones, tablets, Macbooks and other devices can be connected via VE.Direct to the Bluetooth Smart Dongles and the MPPT App or the GX Color Control.
Please note that Bluetooth Smart Dongles and GX Color Control are own items, which are not included in the scope of delivery of the charge controller but can be purchased optionally from us.

Advanced Maximum Power Point Detection in Partial Shading
In the case of partial shading, two or more maximum power points (MPP) may be present on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize the energy yield by adjusting to the optimal MPP.

Properties of the BlueSolar 150/60tr 60A 12V 24V 36V 48V MPPT
Ultra-fast, next-generation MPP tracker ensures the best possible yield even in cloudy skies
automatic detection of MPP voltage in partial shading provides further yield improvement over "simple" MPPT charge controller
Integrated VE.Direct data communication port for connection For communication with additional devices such as Bluetooth Smart Dongle or GX Color Control Panel
high maximum efficiency of 98%
Parallel operation with other 150/60 controllers possible
adjustable constant discharge voltage
adjustable maintenance charge voltage
Suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
Tr Version Connection of solar modules via screw terminals (max. 35mm²)
fully programmable charging algorithms which are later activated and switched manually via a switch on the housing
Rated charging current 60A, 150V maximum PV idle voltage
maximum PV power: 12V E850W 24V E1720W 48V E3440W
integrated protection against battery reverse polarity
multi-stage and adaptive loading algorithm
Protection degree IP 43 for the electronic components and protection class IP 22 for the connection area of the controller
integrated temperature sensor compensates maintenance and constant discharge voltage according to temperature
Day/night time control and light attenuation option
200x250x95

High-speed MPP tracker of the latest generation
Especially in cloudy skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves energy output by up to 30% compared to PWM charge controllers and up to 10%.

comprehensive electronic protection
-Protection against polarized battery connection
-PV backflow barrier
-Protection against overheating of the device
-Protection against short circuits
-Protection against polarized PV connection

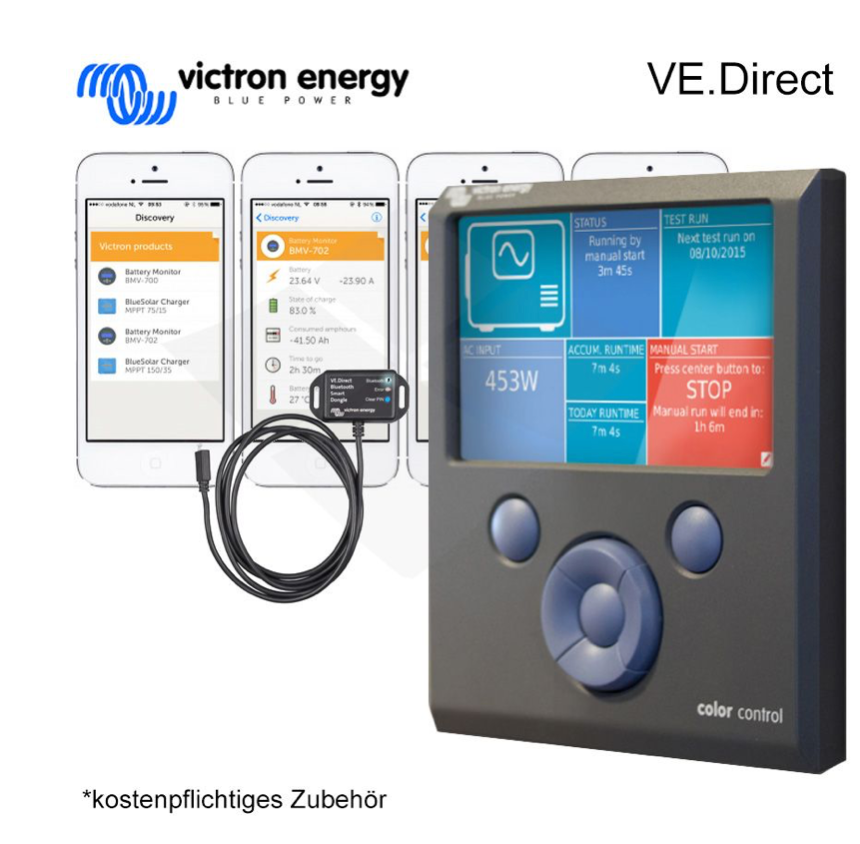

VE.Direct data communication sport
VE.Direct in text mode sends all the important parameters to other devices that are coupled to the load controller in seconds and thus offers the possibility of communication with additional devices such as the Bluetooth Smart Dongle or the GX Color Control Panel by Victron. The VE.Direct port is intended for products where complete Canbus integration (VE-Direct) would cause high costs. You can find more information about VE.Direct on the Victron homepage.

Delivery
1x Victron BlueSolar MPPT 150 /60-Tr Laderegler
User Manual

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
