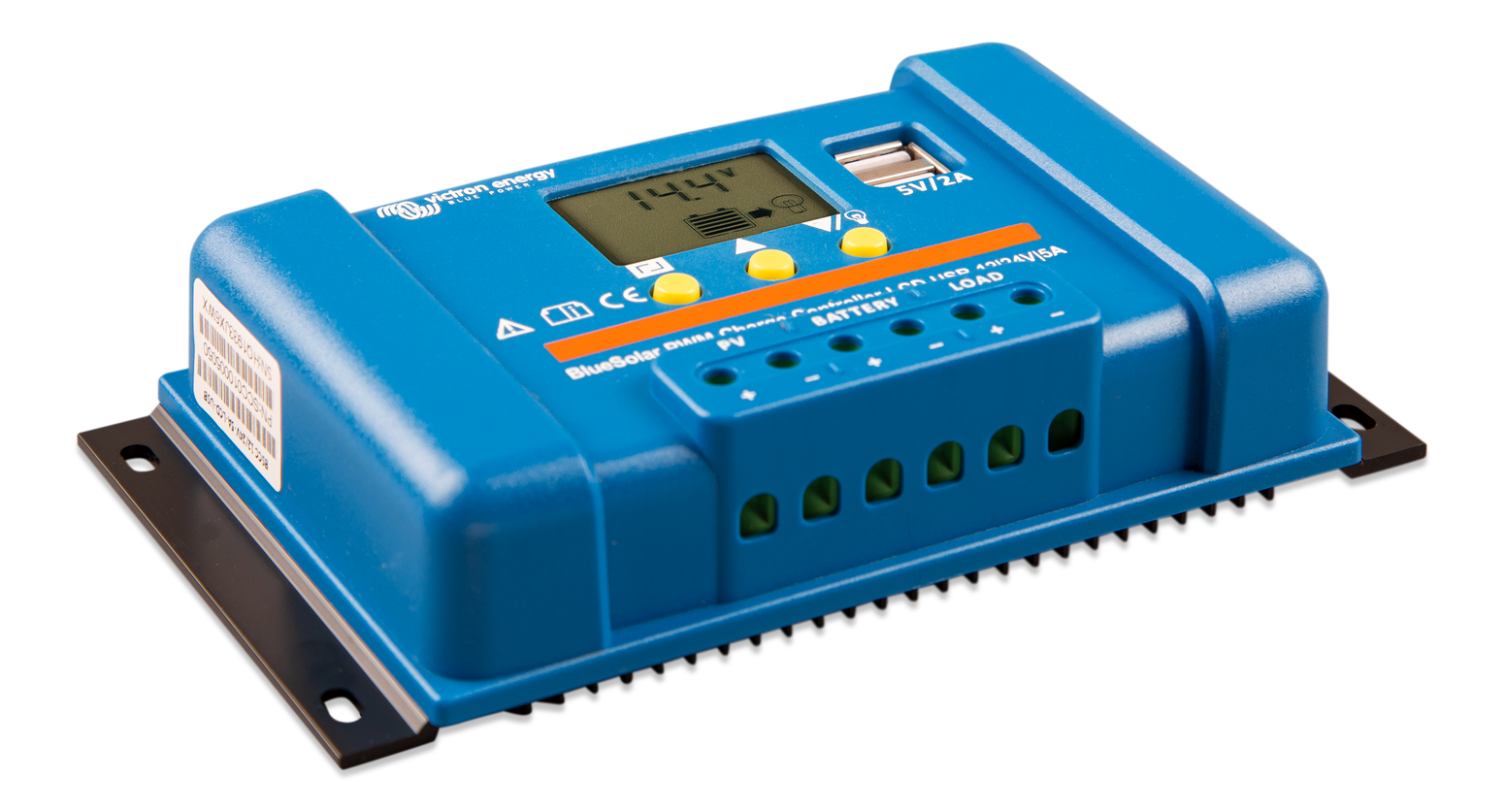

Victron BlueSolar PWM-LCD&USB 12/24V-5A solar controller

Victron EnergySKU: SCC010005050

Price:
Sale price€31,92 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

Victron BlueSolar PWM-LCD&USB 12/24V-5A solar controller
The series of BlueSolar charging controllers uses a charging voltage controlPulse width modulation (PWM) combined with a multi-stage charging control algorithm

Features
• Battery charging in three stages: constant current, constant voltage, trickle charge
• Battery type: Lead-acid and LiFePO4 (with integrated BMS)
• Protection against overcurrent.
• Short circuit protection.
• Reverse polarity protection for solar modules and/or battery.
• Switching off the load when the voltage is low.
• Temperature protection
• Fully programmable lighting control function

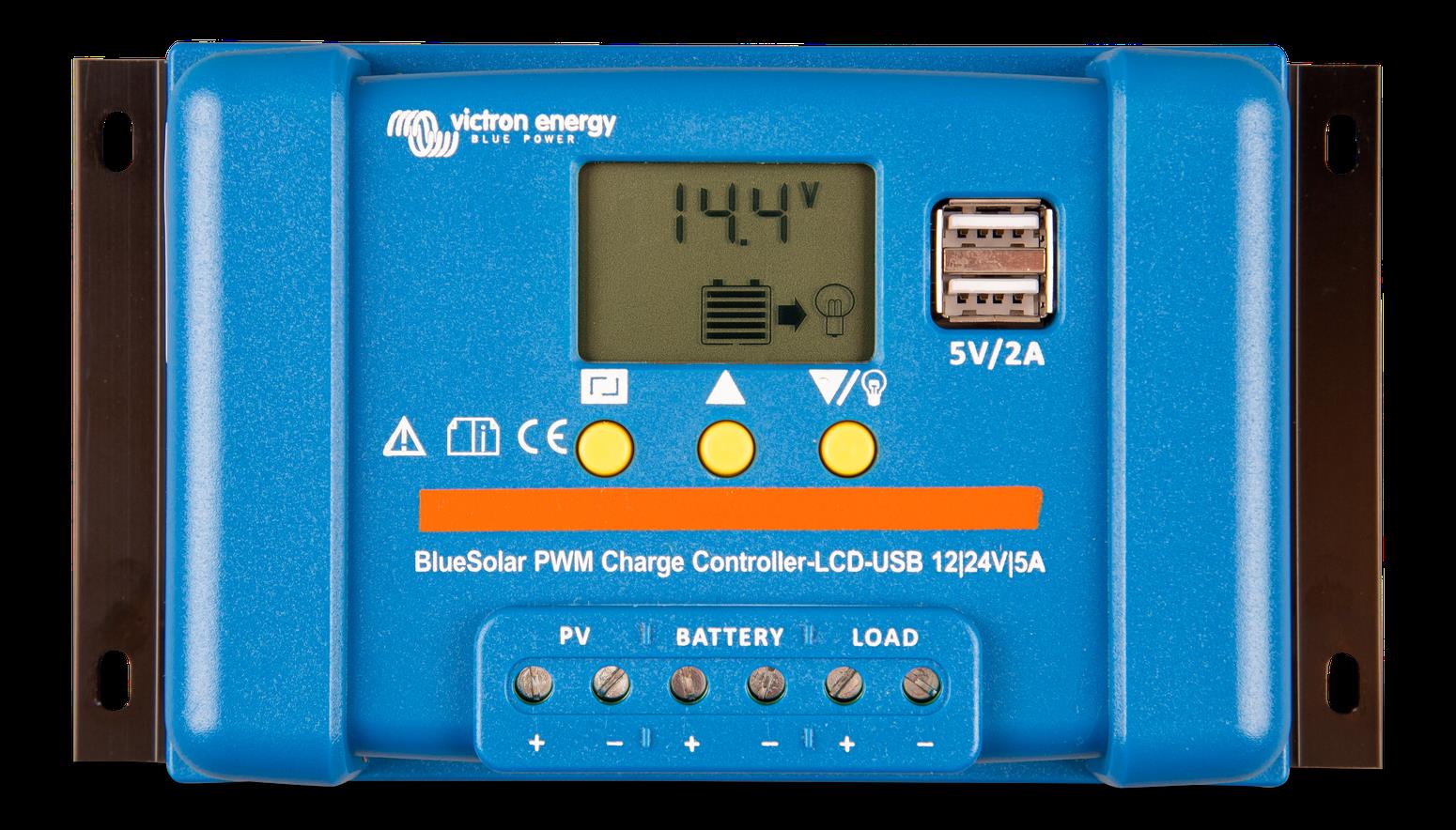

Liquid crystal screen
 for status monitoring and set-up

load output
Overcharging the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a specified voltage value.
Some loads (particularly inverters) are best connected directly to the battery. The inverter remote control is best connected to the load output. A special interface cable may be required, please refer to the manual.
The voltage values ​​for connecting and disconnecting are adjustable.

Day/night time setting of the load output

This option offers the possibility to set a specific ON time after sunset.

Programmable battery charging algorithm

Pre-programmed algorithms for AGM, GEL, liquid electrolyte or LiFePO4 batteries (only with built-in BMS)

Two 5V USB outputs

Maximum current (both outputs together): 2 A

96x169x36cm
0.15kg
