Victron BlueSolar PWM-LCD&USB 48V-10A solar controller

Victron EnergySKU: SCC040010050

Price:
Sale price€55,20 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

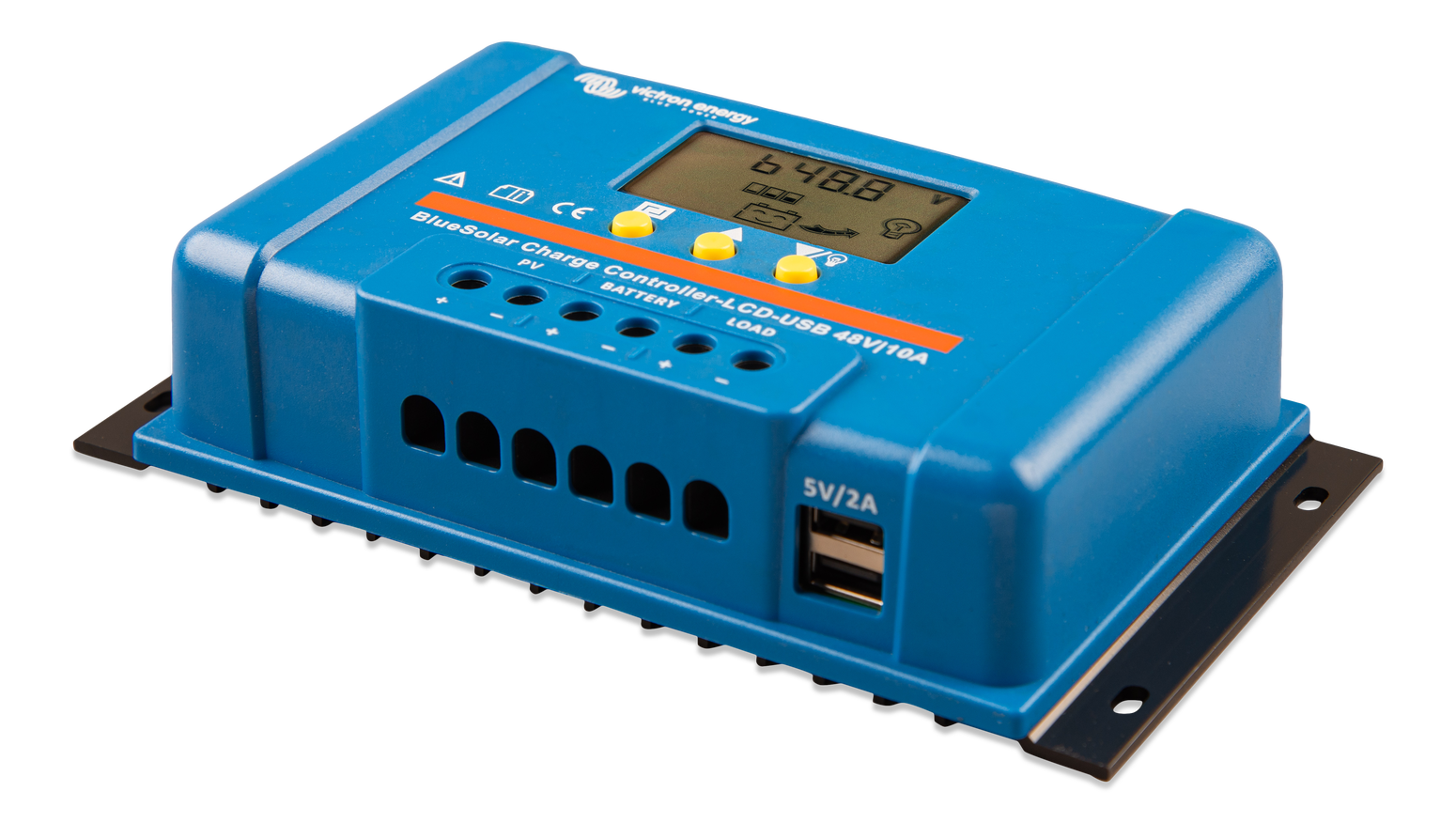

Victron BlueSolar PWM-LCD&USB 48V-10A solar controller
The BlueSolar series of charge controllers uses pulse width modulation (PWM) combined with a multi-stage charge control algorithm to regulate the charge voltage

Functions
• Battery charging in three stages: constant current, constant voltage, trickle charge
• Battery type: Lead-acid and LiFePO4 (with integrated BMS)
• Overcurrent protection.
• Short circuit protection.
• Reverse polarity protection for solar modules and/or battery.
• Switching off the load at low voltage.
• Temperature protection
• Fully programmable lighting control function

Liquid crystal display
for status monitoring and setup

Load output
Battery overcharging can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a specified voltage level.
Some loads (especially inverters) are best connected directly to the battery. The inverter remote control is best connected to the load output. A special interface cable may be required; please refer to the manual for details.
The voltage values for connecting and disconnecting are adjustable.

Day/night time setting of the load output

This option allows you to set a specific ON time after sunset.

Programmable battery charging algorithm

Pre-programmed algorithms for AGM, GEL, liquid electrolyte or LiFePO4 batteries (only with built-in BMS)

Two 5V USB outputs

Maximum current (both outputs together): 2 A

102x184x48cm
0.15kg
