Victron BlueSolar PWM-LCD&USB 48V-30A Solar Controller

Victron EnergySKU: SCC040030050

Price:
Sale price€76,00 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

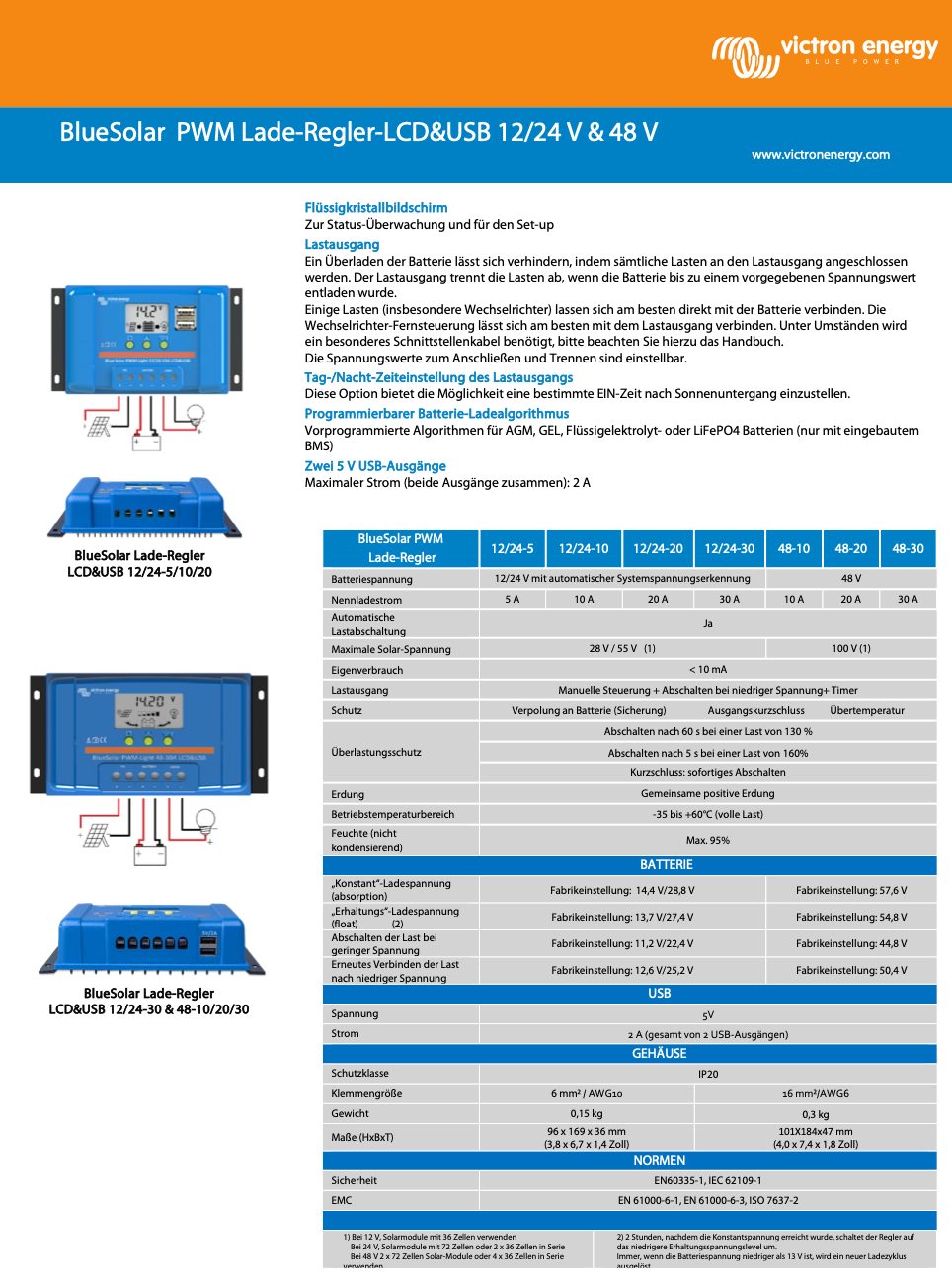

Victron BlueSolar PWM-LCD&USB 48V-30A Solar Controller
The BlueSolar charging regulator series uses aPulse width modulation (PWM) combined with a multi-stage loading rule algorithm

Functions
• Charge the battery in three stages: constant current, constant voltage, charge maintenance
• Battery type: lead acid and LiFePO4 (with integrated BMS)
• Protection against overcurrent.
• Short circuit protection.
• Reverse polarity protection for solar modules and/or batteries.
• Switching off the load at low voltage.
• Temperature protection
• Fully programmable light control function

Liquid crystal screen
 for status monitoring and set-up

Load output
Overcharging of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery is discharged to a specified voltage value.
Some loads (especially inverters) are best connected directly to the battery. The inverter remote control is best connected to the load output. A special interface cable may be required, please refer to the manual.
The voltage values for connecting and disconnecting are adjustable.

Day/night time setting of the load output

This option allows you to set a specific ON time after sunset.

Programmable battery charging algorithm

Pre-programmed algorithms for AGM, GEL, liquid electrolyte or LiFePO4 batteries (only with built-in BMS)

Two 5V USB outputs

Maximum current (both outputs together): 2 A

102x184x48cm
0,15kg

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
