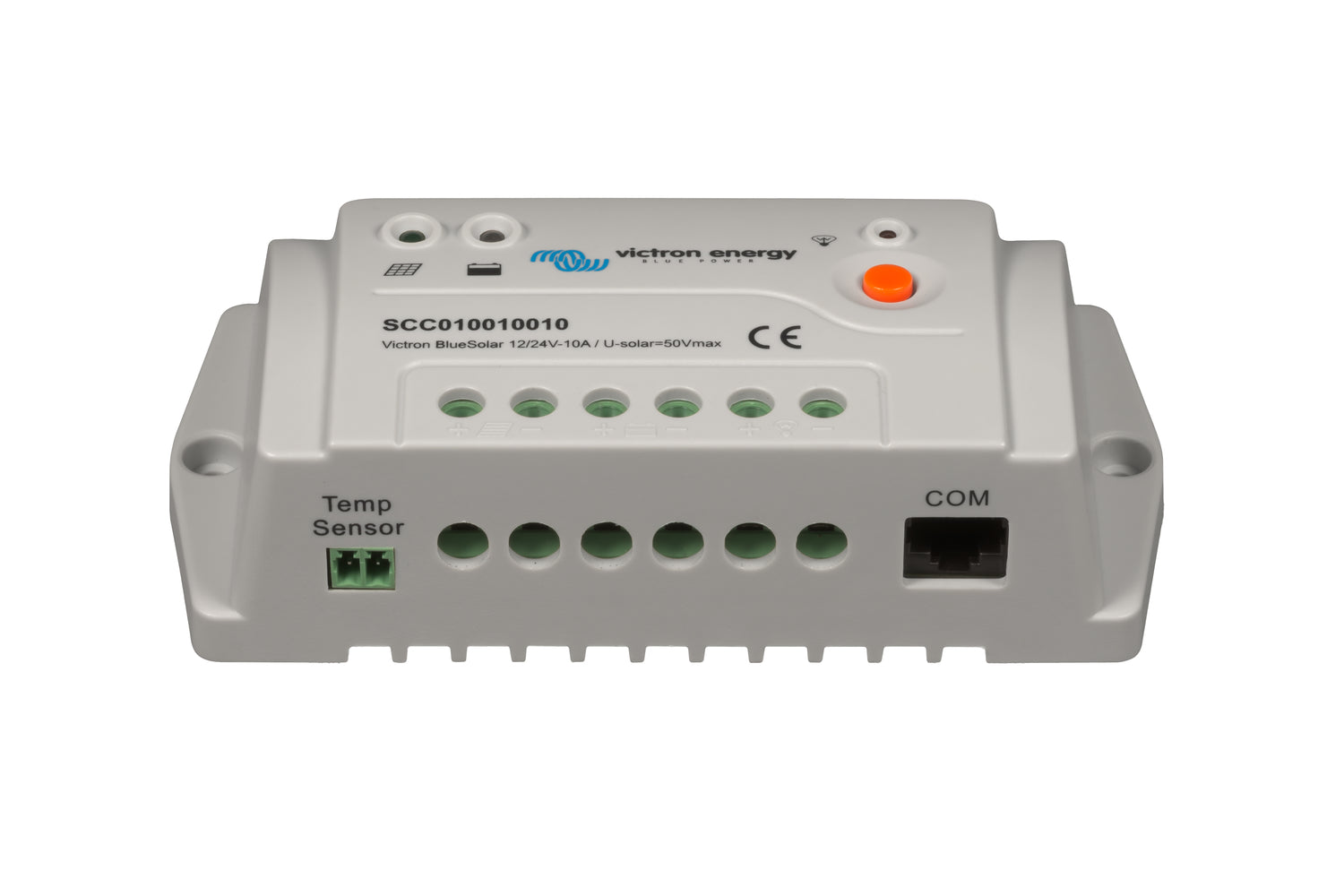

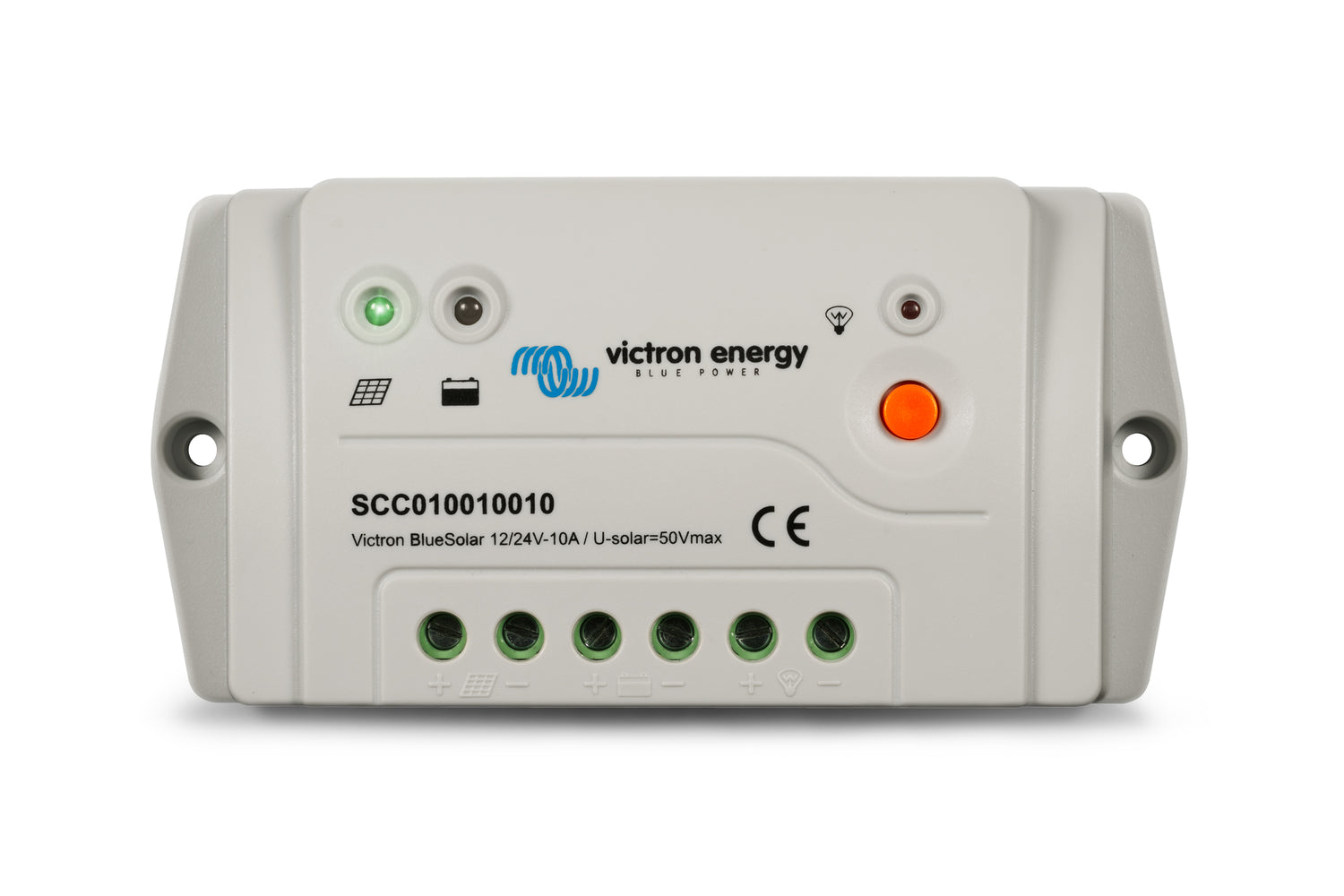

Victron BlueSolar PWM-Pro 12/24V-10A solar controller

Victron EnergySKU: SCC010010010

Price:
Sale price€31,10 EUR Regular price€34,51 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

TheVictron BlueSolar PWM-PRO 10A is a solid entry-level device for solar technology and already has a number of professional functions integrated. It can also handle both the 12V and 24V battery voltage ranges and can therefore be used very flexibly.

The BlueSolar series from Victron offers the user a lot more comfort and configuration options compared to the PWM Light series. In addition, a remote display is optionally available, which can be used to monitor and configure the controller.

programming All important control parameters via remote panel (optional accessory product and not included with the controller) or USB link cable from Victron, PC + software (free on the Victron website)
The BlueSolar PWM-Pro series is ready for operation with its standard settings.
However, it can also be fully programmed:

Characteristics
- 10A max. charging current, 10A max. solar power
- optional remote display available
- suitable for AGM, GEL and liquid lead acid batteries
- suitable for 12V and 24V battery voltage
- fully programmable lighting control
- Day and night settings options
- Complete battery charge thanks to three-stage charging process
- Load output with integrated switch-off function to protect against deep discharge of your battery
- Overload and short-circuit protection are also already integrated at the load output
- Reverse polarity protection for solar and battery input
- Three-stage battery charging (bulk, absorption, float), fully programmable
- Integrated battery monitoring function (remote control panel is used to read the charging status
needed)
- 70x138x37
- 0.15kg

Connection options:
Remote display Pro, PWM-Pro to USB interface cable, temperature sensor

scope of delivery
1x Victron BlueSolar PWM-PRO12/24V-10A
operation manual

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
