Victron Color Control GX

Victron EnergySKU: BPP010300100R

Price:
Sale price€398,65 EUR Regular price€549,78 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

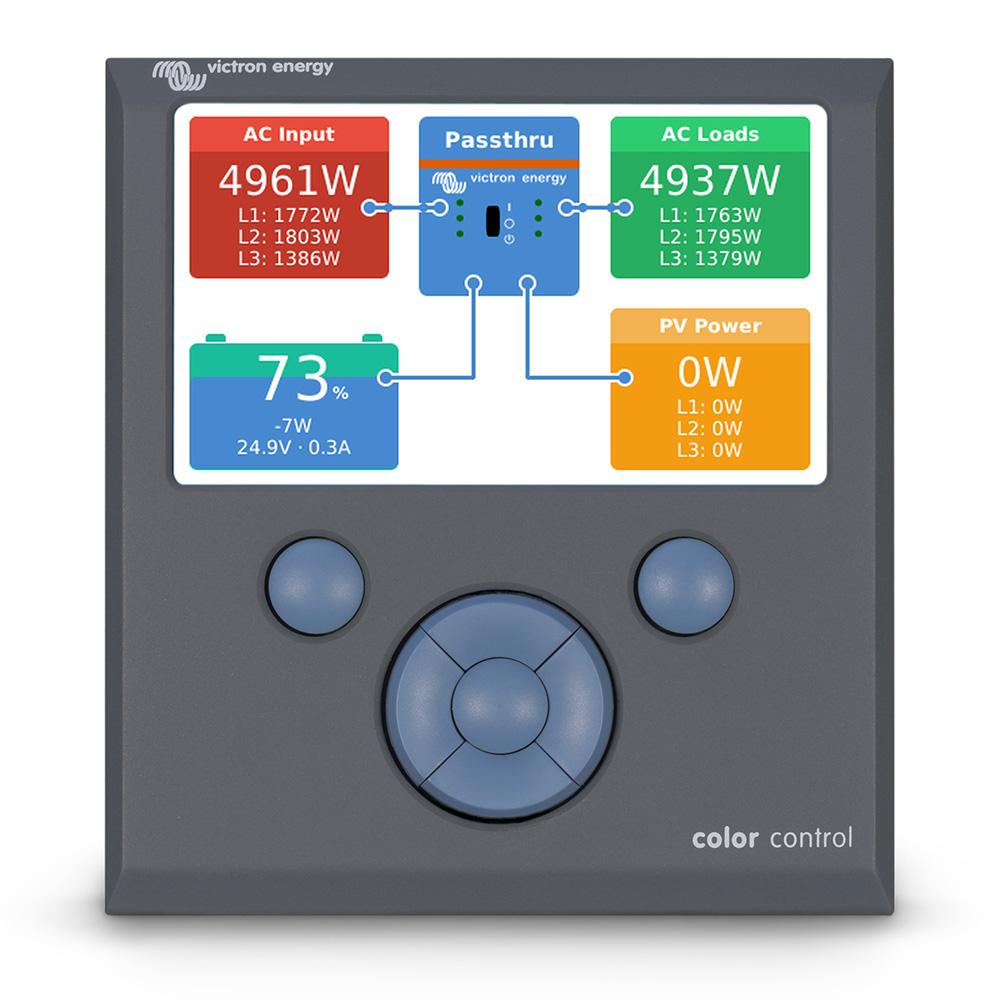

The Victron Color Control GX (MPN BPP010300100R), CCGX for short, is a modern system control panel and display for a large number of Victron devices simultaneously. It connects all electronic components of a system and thus acts as a control center where you can configure and monitor charge controllers, inverters, AC distribution and much more.

Essential product highlights at a glance

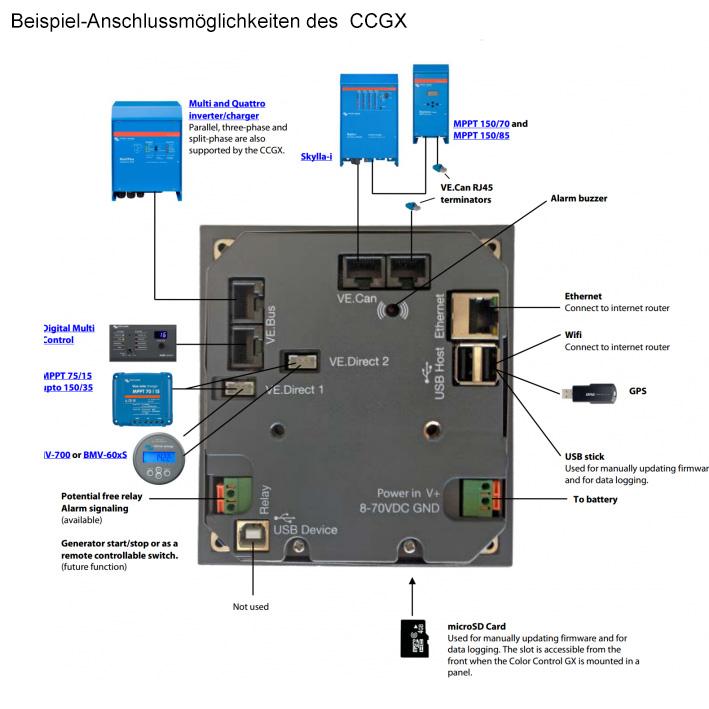

  • Countless Victron devices can be connected to the CCGX including Inverters, Multis, Quattros, MPPT Charge Controllers, BMV-700, BMV-600, Lynx Ion + Shunts and so many more. (Full device list can be found below in the text)
  • high-resolution color display and intuitive operation
  • Free remote monitoring via connection to Victron's VRM online portal, a demo version of the portal can be viewed here https://vrm.victronenergy.com
  • automatic firmware updates ensure many new functions and current software long after purchase
  • Unlike the Victron Global Remote 2 (VGR2) and the Victron Ethernet Remote (VER), the CCGX stores all data locally in the event of network disruptions. As soon as the connection to the VRM online portal is re-established, all the data that have been put on hold are automatically sent to the portal.
  • Different languages: English, Chinese, German, Italian, Spanish, French, Swedish and Dutch.
  • Compared to the Victron Global Remote 2 (VGR2) and the Victron Ethernet Remote (VER), the CCGX stores all data locally in the event of network disruptions. As soon as the connection to the VRM online portal is reestablished, all the data that has been put on hold is automatically sent to the portal, where you can then conveniently view it graphically on a website anywhere in the world.
  • VE.Direct devices can also be connected to the CCGX via USB - this way you can connect more than two VE.Direct devices to the CCGX
  • A USB GPS can be connected to the USB port. Your location and speed will then appear on the display. The data is then sent to the VRM portal for tracking purposes. The most recent position is then displayed on the map on the VRM.
  • VE.Direct devices can also be connected to the CCGX via USB - this way you can connect more than two VE.Direct devices to the CCGX
  • A USB GPS can be connected to the USB port. Your location and speed will then appear on the display. The data is then sent to the VRM portal for tracking purposes. The most recent position is then displayed on the map on the VRM
  • Wi-Fi USB

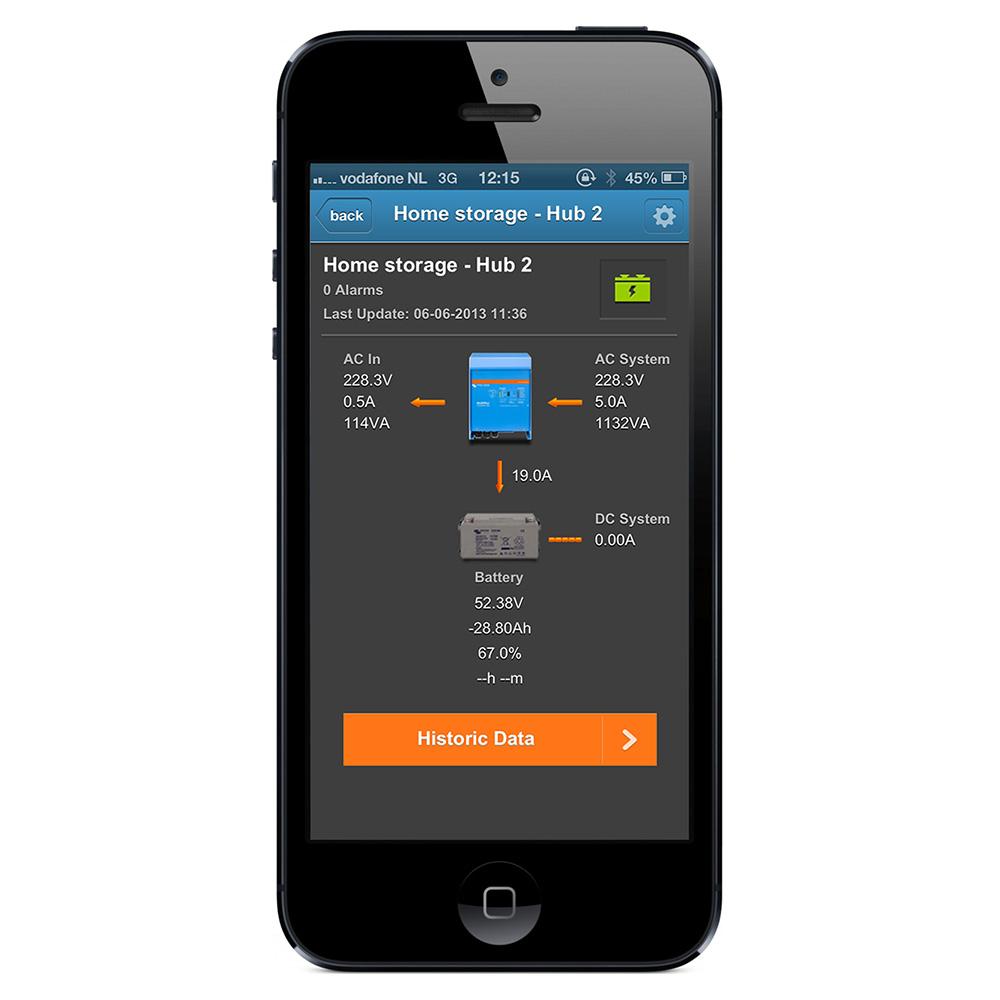

Free remote monitoring via Victron VRM online portal

Apart from monitoring and operating devices on the CCGX, the information is also forwarded to our free remote monitoring website: To get an impression of the VRM online portal, please visit: https://vrm.victronenergy.com and try the demo function.

Future functions will be automatically installed on the CCGX via firmware updates

The CCGX offers endless possibilities. It will take years to implement all our ideas and wishes. For this reason, numerous functions are not yet available. Features marked "Future Feature" will be made available later as a firmware update. Firmware updates are free of charge for all Victron products. Updating the product is easy: the CCGX will update itself automatically as long as it is connected to the internet. Manual updates can be made using a USB stick or a microSD card.
  • Multis and Quattros, including split-phase and three-phase systems, monitoring and control (on/off and current limiters). Changing the settings is not yet available.
  • BlueSolar MPPT 150/70 and the MPPT 150/85. The current solar output is displayed on the overview screen and all parameters are logged on the VRM online portal. Please note that the VRM app has a nice overview that shows the data from the BlueSolar MPPT 150/70 as well. If several BlueSolar MPPTs with VE.Can are used in parallel, the Color Control shows all information in one.
  • BlueSolar MPPT solar chargers with a VE.Direct port (70/15, 75/15, 100/15, 100/30, 75/50, 100/50, 150/35) connect to the VE.Direct ports on the CCGX. Several can also be connected at the same time. They will then appear as a separate solar charger in the device list.
  • Devices of the BMV-700 family can be connected directly to the VE.Direct ports on the CCGX. Use the VE.Direct cable for this
  • Devices of the BMV-600 family can be connected to the VE.Direct ports on the CCGX. Use the VE.Direct to BMV60xS cable for this

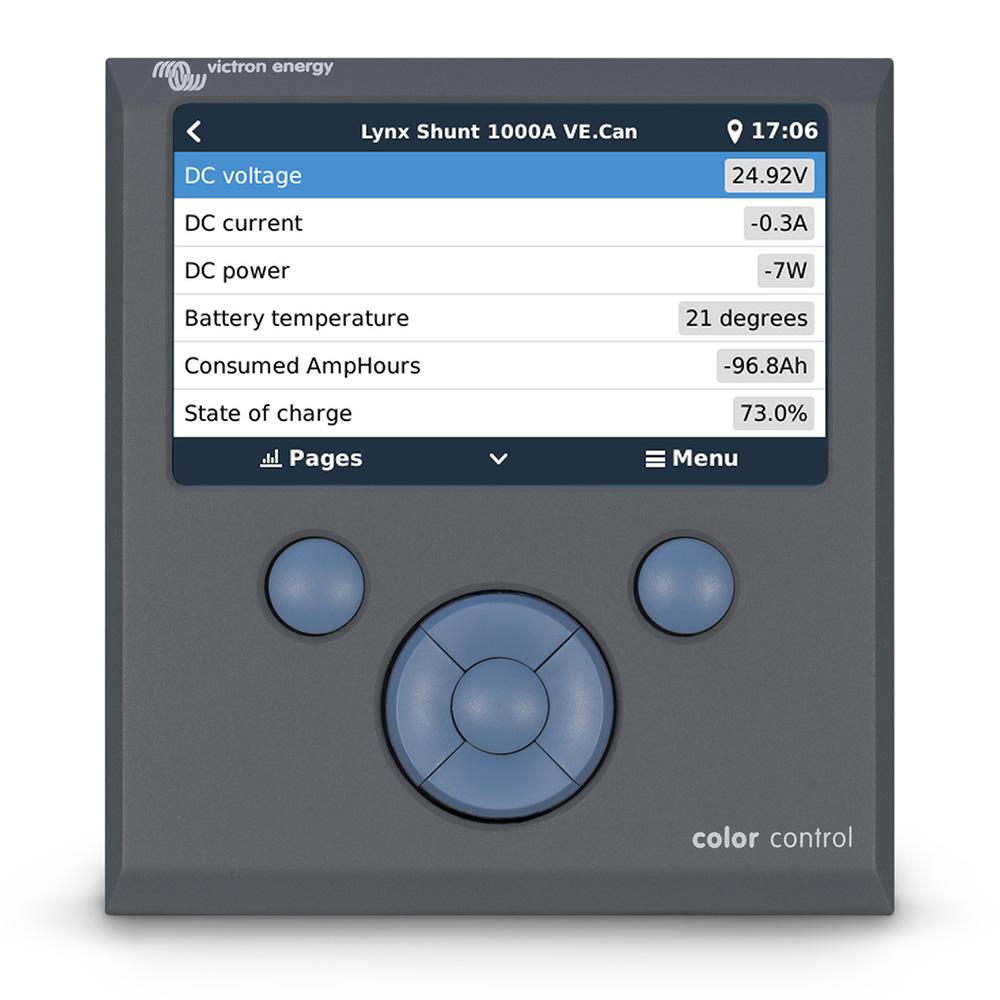

  • Lynx Ion + shunt
  • Lynx Shunt VE.Can
  • - Scylla-i
  • NMEA2000 tank sensors

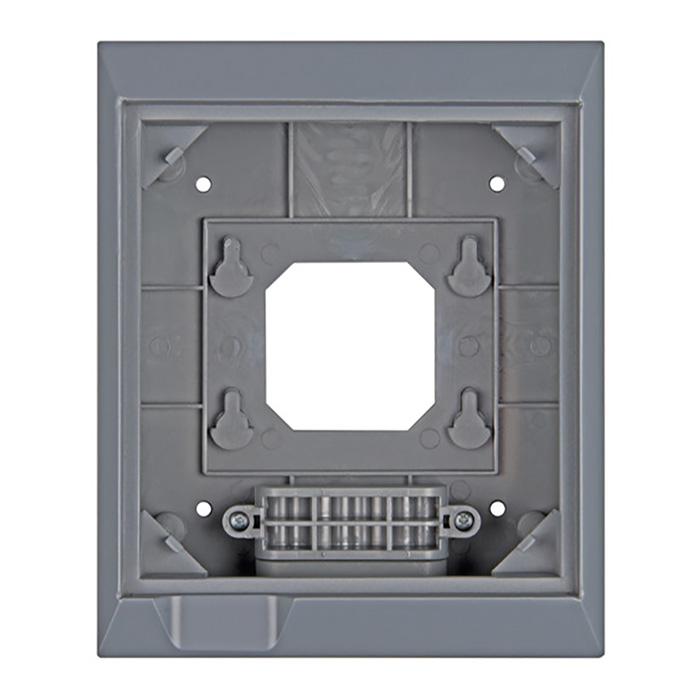

You can find the right wall bracket here .

Scope of delivery:
1x Victron BPP000300100R Color Control GX
1x ABS mounting frame with strain relief for incoming cables

1x user manual

data sheet

Generally
item number 1-67-008625
Manufacturer part number BPP000300100R
product type System control display
Manufacturer VictronEnergy
weight 0.321
EAN 8719076021360
