Victron LiFePO4 25.6/200 smart battery 25.6V 200Ah 5120Wh

Victron EnergySKU: BAT524120610

Price:
Sale price€1.777,59 EUR Regular price€2.692,97 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The LiFePO4 25.6V 200Ah smart battery (MPN BAT524120610) from Victron Energy is a LiFePO4 battery of the latest generation. When fully charged, the LiFePO4 25.6/200 Smart stores a whopping 5120Wh of electricity with very little self-discharge and an outstanding service life. The Victron LiFePO4 battery family already has integrated cell balancing and a BMS (Battery Management System) interface. The integrated Bluetooth for connecting to the Li-Ion app rounds off the overall package.

Victron LiFePO4 25.6V 200AH Smart Battery

  • Rated voltage: 25.6V
  • Built-in Bluetooth to connect to the Victron Li-Ion app
  • Victron part number: BAT524120610
  • Nominal energy at 25°C*: 5120Wh
  • Rated capacity at 25°C/0°C/-25°C: 200Ah / 160Ah / 100Ah
  • Number of cycles at depth of discharge 80%/70%/50%: 2500 / 3000 / 5000 cycles
  • recommended continuous discharge current: <200A
  • maximum continuous discharge current: 400A
  • Dimensions: 237 x 650 x 163mm
  • Weight: 39kg
  • Connection terminal: M8

Further technical data can be found in the official data sheet and below in the "Technical Data" section.

Efficient, economical...: LiFePO4 25.6V 200Ah smart battery

Although LiFePO4 batteries are expensive compared to AGM batteries or GEL batteries, the higher acquisition costs will more than pay off in most cases. With a service life of up to 5000 cycles, you exceed the maximum service life of even the best lead-acid batteries many times over. In addition, the LFP 25.6/200 scores 70% in terms of space savings and weight savings. At 92%, the degree of energy utilization is also well above the 80% of lead-acid batteries, which can be of essential importance for off-grid systems, especially for off-grid solar and/or wind power plants.

All-rounder: infinitely flexible with lithium technology from Victron Energy

Victron LiFePO4 smart batteries can be implemented in almost all common applications. This technology has long played an important role in the mobile sector. But thanks to the fact that these batteries are much easier to charge than conventional lead-acid batteries and irregular charging cannot harm them, they are also making their way into land applications and can now be found in almost all system classes.

Parallel and series connection up to max. 3000AH at 48V

Thanks to the integrated cell balancing and cell monitoring function, you can easily connect up to 10 batteries of this type in parallel and up to 4 blocks of 10 in series, which results in a maximum of 3000Ah at 48V - this corresponds to a maximum storable nominal energy of around 154,000 Wh (when used with the 300Ah 12.8V version).

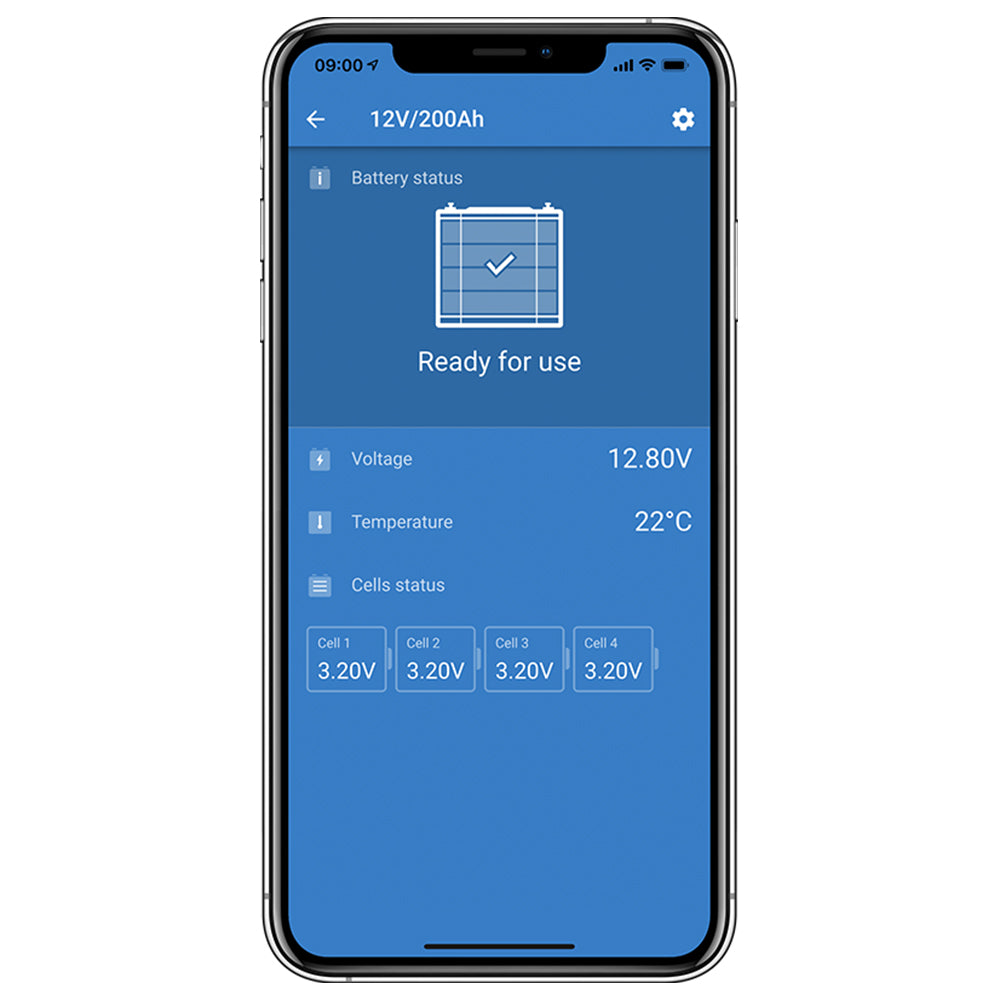

Integrated Bluetooth for smart handling

Cell voltages, temperature and alarm status can be monitored via Bluetooth. This is very useful for detecting a (possible) problem like a cell imbalance in time.

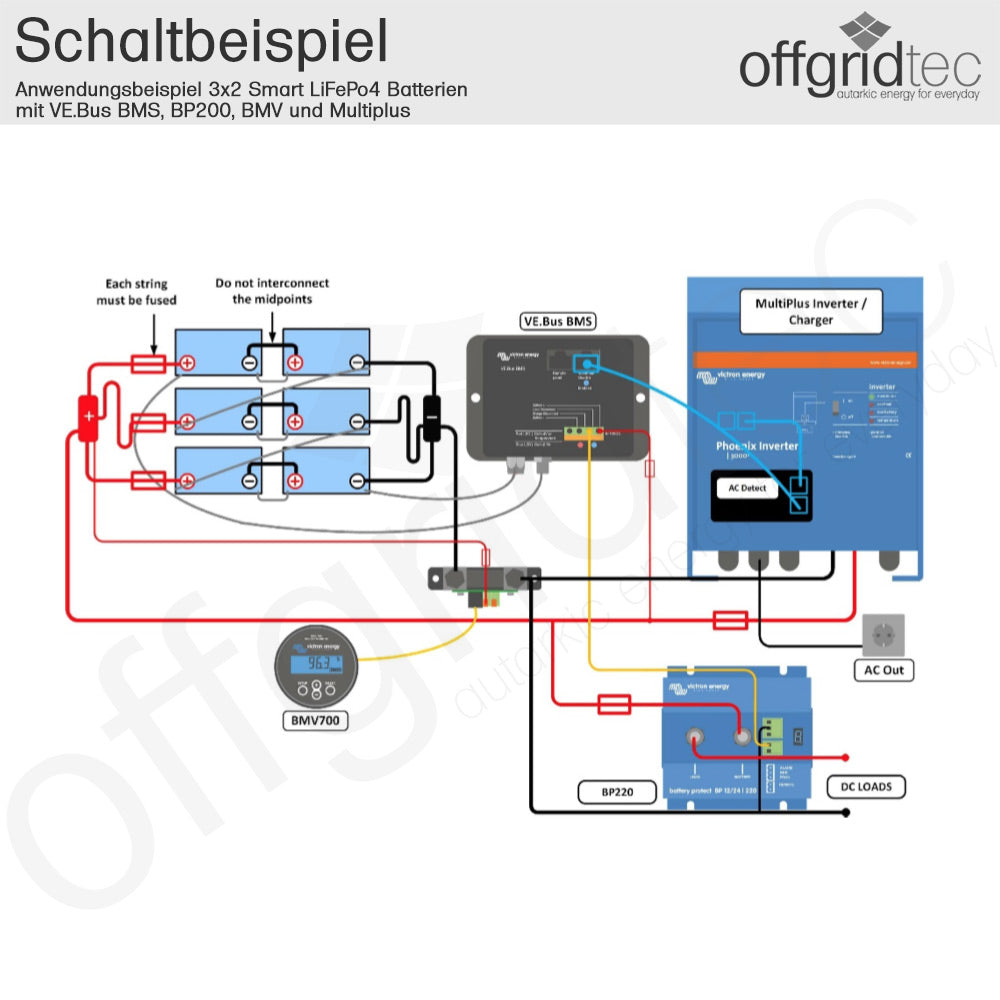

IMPORTANT NOTE: The use of an additional BMS is mandatory to interrupt the load when a battery cell voltage falls below 2.5V or to stop charging when a battery cell voltage rises above 4.2V and to shut down the system when the cell temperature exceeds 50°C.

The VE.Bus BMS is suitable for this - further details of the devices can be found in the respective item descriptions.

Due to the classification as dangerous goods, this product will be sent by freight forwarder!

Scope of delivery:

1x Victron Energy BAT524120610 LiFePO4 25.6V 200AH Smart Battery

1x user manual

data sheet

IP protection

IP22

EAN

8719076054610

Manufacturer part number

BAT524120610

weight

39kg

Dimensions (LxWxH)

237x650x163mm

ambient temperature

5°C - +50°C

guarantee

2 years

humidity

95% max, non-condensing

Manufacturer

VictronEnergy
