Victron Lynx Shunt VE.Can

Victron EnergySKU: LYN040102100

Price:
Sale price€299,75 EUR Regular price€451,01 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Victron Lynx Shunt VE.Can (MPN LYN040102100) is a 1000A intelligent shunt with a facility for a fuse. With the built-in battery monitor, the charge level of the battery can be accurately monitored. Use a GX device (eg Cerbo GX) to read out the information. Part of the modular Lynx distribution system.

Features of the Victron Lynx Shunt VE.Can

  • 1000A
  • Fuse CNN 325A / 80V
  • integrated battery monitor
  • easy installation
  • Part of the modular Lynx distribution system

Construction

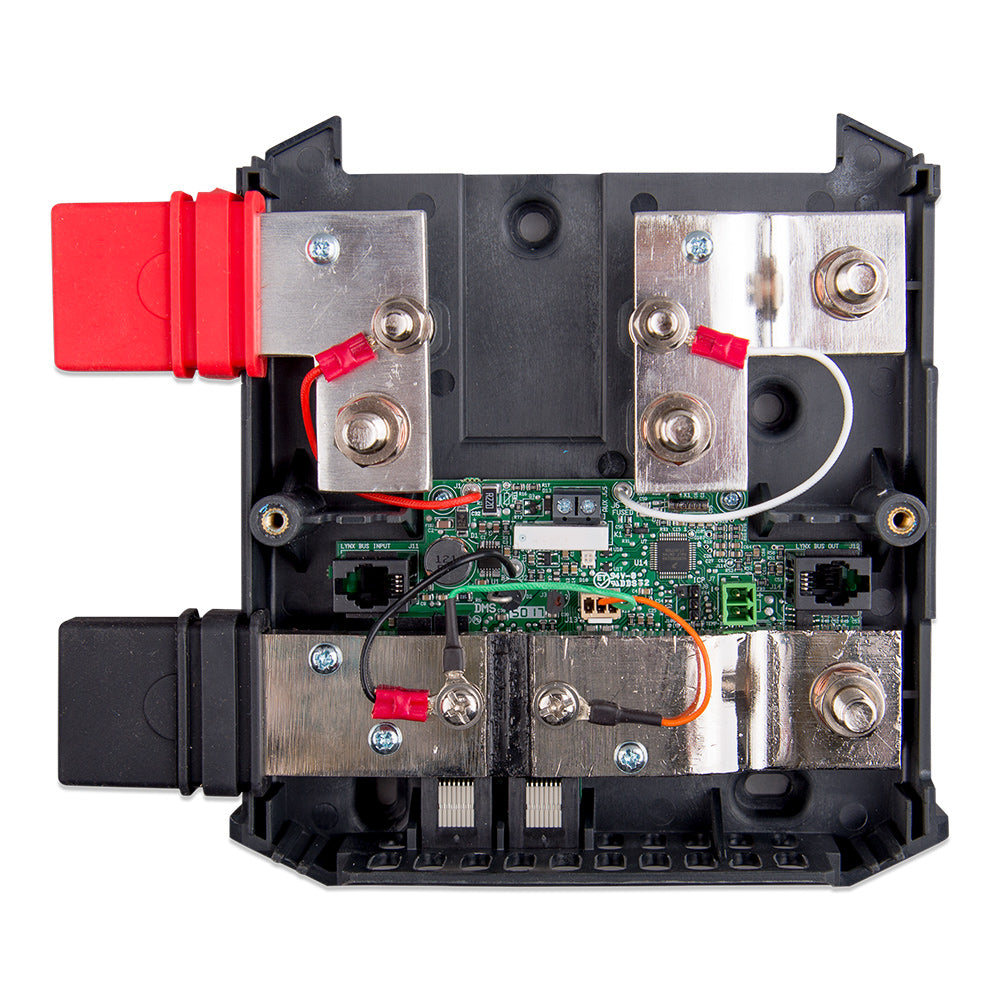

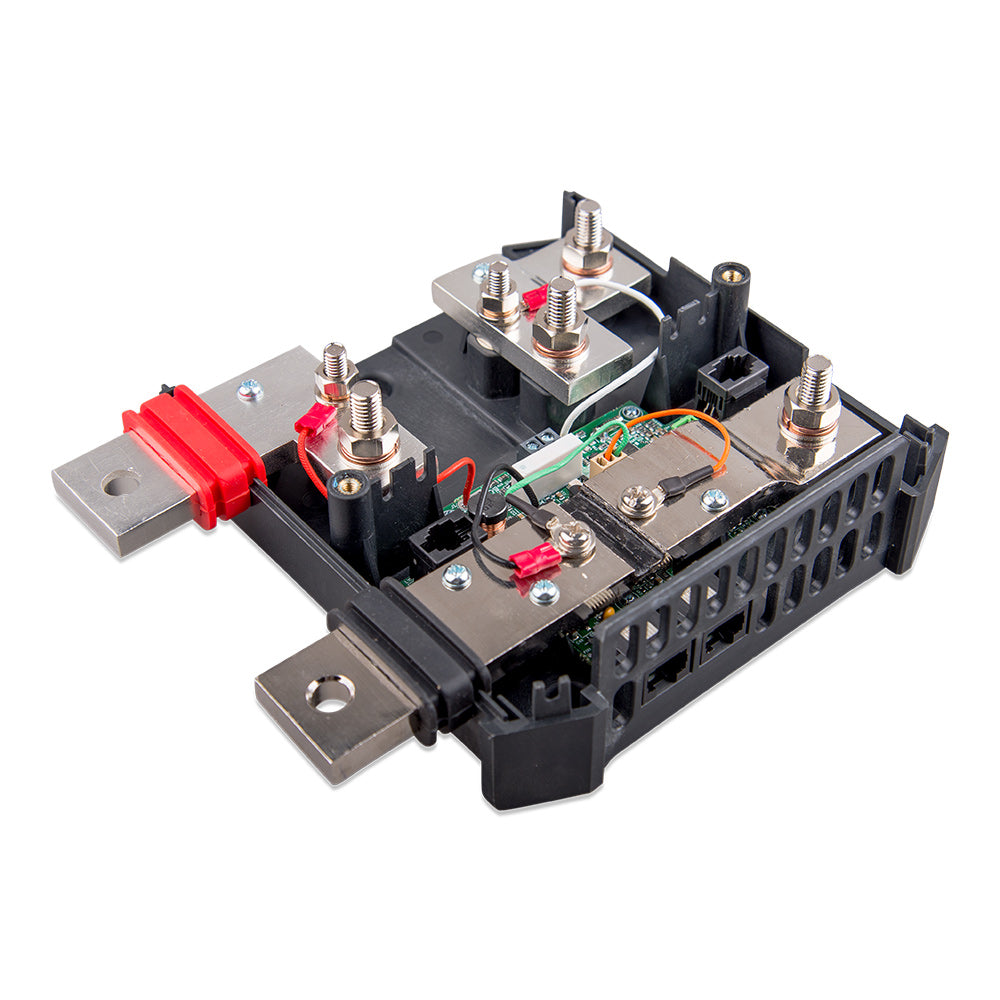

The Lynx Shunt contains a positive bus bar with room for a CNN fuse and a negative bus bar with the shunt. It also includes battery monitoring electronics. The Lynx shunt can send monitoring information to a CCGX or VGX or to a 3rd party CANbus monitoring system such as an NMEA2000 via the VE.CAN bus battery. The CCGX, VGX or 3rd party display acts as the battery monitor display and is also used to set up the built in battery monitor. The Lynx shunt is available with a VE.Can connection.

Scope of delivery:

1x Victron Lynx shunt VE.Can

weight

1.4kg

Manufacturer

VictronEnergy

Dimensions (LxWxH)

190*186*80.5mm

Manufacturer part number

LYN040102100

EAN

8719076022602

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
