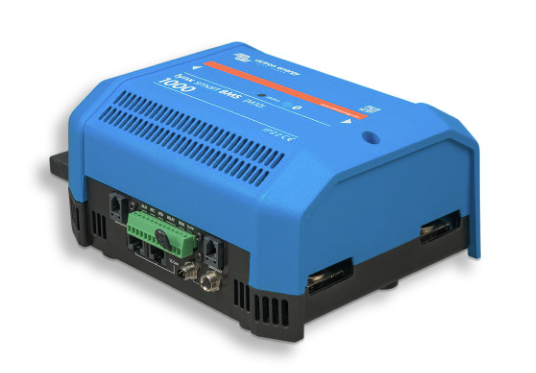

Victron Lynx Smart BMS 1000 (M10)

VictronSKU: LYN034170210

Price:
Sale price€1.182,86 EUR Regular price€1.586,27 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Lynx Smart BMS 1000 of Victron Energyis a special battery management system for lithium smart batteries from Victron. In addition to all other BMS devices, the Lynx smart is the most functional and most comprehensive option for you. With it you can easily monitor and communicate your Lynx distribution system and easily and without much effort. For local monitoring or remote monitoring, you also have the option with GX devices, for example with the Cerbo Gxoder the Ekrano GX.

Lynx Smart BMS 1000
-
Supported system voltages: 12, 24 or 48 V
- Programmable relay
- Batteryer for data display
- pre -loading
- Preliminary alarm signal
- Monitoring and control
-DVCC control circuit and ATC/ATD contacts
- Monitoring of the Lynx distributor backup
- Bluetooth for use with the VictronConnect app
- Housing material: ABS
- Local monitoring and remote monitoring with a Victron GX device

Lynx distribution system
The Lynx distribution system is a modular collective rail system that includes DC connections, distribution, securing, battery monitoring and / or lithium battery management. The Lynx Distribution System consists of the following parts:
Lynx power in - A positive and negative collective rail with 4 connections for batteries or DC devices
Lynx distributor - A positive and negative collective rail with 4 secured connections for batteries or direct current devices together with security monitoring
Lynx shunt ve.can - A positive collective rail with space for a main system backup and a negative collective rail with a shunt for battery monitoring. It has Ve.CAN communication for monitoring and furnishing in a GX device
Lynx Smart BMS - for use with Victron Energy Smart Lithium batteries. It contains a positive collective rail with a protective switch that is powered by a battery management system and a negative collective rail with a shunt for battery monitoring. It has Bluetooth communication for monitoring and furnishing via the VictronConnect app and a VE.CAN communication for monitoring with a GX device and the VRM portal

Programmable relay
The relay can either be used as an alarm relay (in connection with the pre -alarm) or to control a alternator via your external controller (ignition cable). In ATC mode of the alternator, the relay is only activated when the shooter is closed. In this process, the ATC contact of the alternator first opens, followed by a delay of 2 seconds before the shooter opens. These 2 seconds ensure that the alternator is switched off before the battery is separated from the system.

Victronconnect app
The app is essential for setting up and monitoring! The following options for connection are: Bluetooth / USB, via the optional interface / remote control via a GX device and the VRM portal The app is available for the following platforms: Android / Apple iOS (USB is not supported, only a connection via Bluetooth is possible) / MacOS / Windows (Bluetooth is not supported, only a connection via USB is possible) The app can be from the respective app stores or from Victron product page are downloaded.

Technical data

  • Battery voltage range: 9-60V DC
  • Max. Input voltage: 75V DC
  • Nominal current: 1000A DC, uninterrupted
  • Top ninner: 1200 A for 5 min.
  • Programmable relay max. Nominal current: 2 A at 60V DC
  • Collection rail: M10
  • Protection class: IP22
  • Operating temperature range: -40 ° C - +60 ° C
  • Storage temperature range: -40 ° C - +60 ° C
  • Weight: 2.5 kg

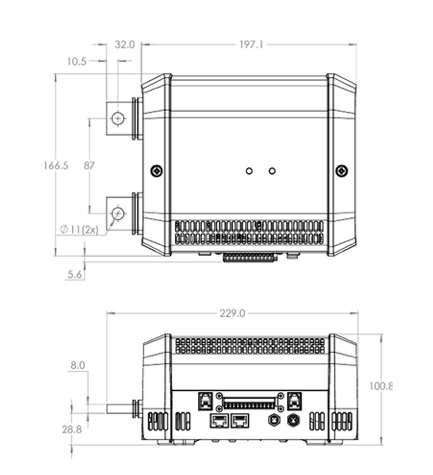

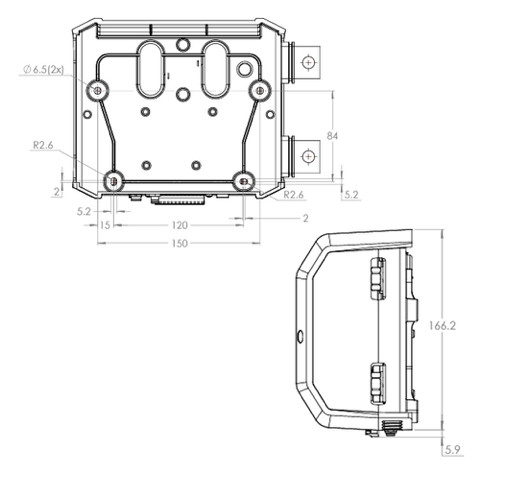

  • Dimensions: 170x186x80 mm

    scope of delivery
    1x Victron Lynx Smart BMS 1000 battery management system

  • GPSR Information

    Hersteller
    Name: Victron Energy BV
    Anschrift: The Palm 35
    PLZ, Ort: 1351, JG Almere
    Land: Netherlands
