Victron MultiPlus C 12/1600/70-16 12V 230V 1300W 3000W inverter 70A charger

Victron EnergySKU: CMP122160000

Price:
Sale price€654,25 EUR Regular price€999,60 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

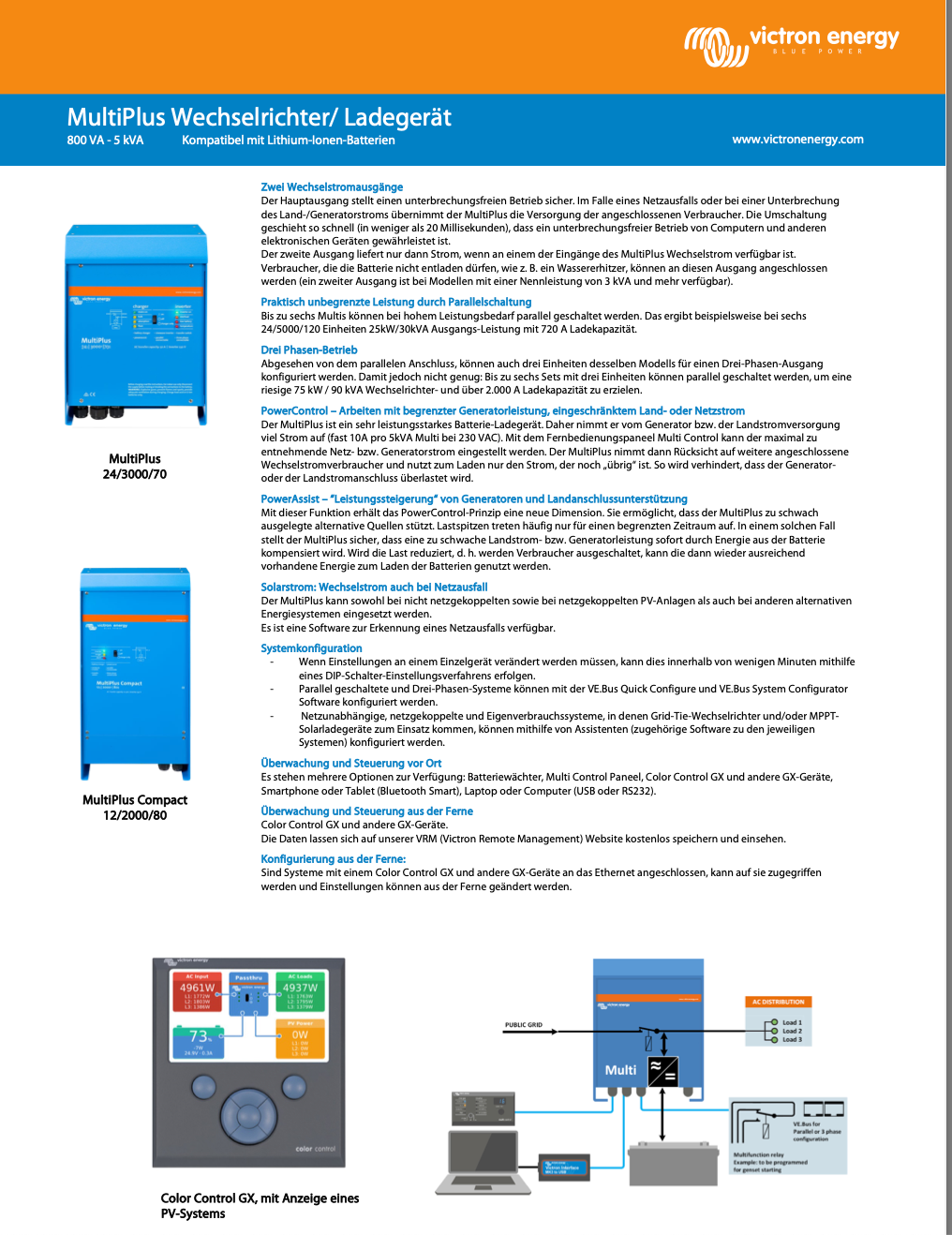

The MultiPlus C 12/1600/70-16 from Victron is a powerful combination device for your energy supply system. It combines a 12V 1300W sine wave inverter and an efficient battery charger. This delivers an impressive 70A, allowing even large batteries to be charged quickly when shore or grid power is available. The inverter converts the battery power to 230V AC, providing optimal power quality for sensitive electronic devices. The MultiPlus also features a lightning-fast 16A transfer switch, making it ideal for mobile homes, boats, yachts, and grid-connected UPS systems. In self-consumption systems, it ensures that power is only drawn from the grid when the battery power is insufficient. It ensures uninterrupted power supply in the event of a grid failure.

Highlights of the MultiPlus C 12/1600/70

  • Device combination of inverter with transfer switch and 70A battery charger
  • VE.Bus communication port for networking, system integration and configuration
  • Supports three-phase operation in parallel connection
  • On-site monitoring or remote monitoring with the app
  • Two AC outputs
  • PowerControl mechanism
  • PowerAssist
  • Programmable relay
  • Versatile
  • For both off-grid and grid-connected PV systems
  • Massive performance expansion possible

    In addition to parallel connection, three units of the same model can also be combined to create a powerful three-phase output configuration. But that's not all – up to six sets of three units each can be connected in parallel to achieve an impressive 75kW/90kVA inverter output and over 2,000A charging capacity.

    PowerControl

    The MultiPlus is an extremely powerful battery charger that requires a relatively high current from the generator or shore power connection (almost 10A per 5kVA Multi at 230V AC). However, with the
    Multi Control remote control panel, you can easily set the maximum current consumption. It automatically takes into account other connected devices and uses only the excess power for charging. This ensures that the generator or shore power connection is never overloaded.

    PowerAssist

    This feature takes the PowerControl principle to a new level. The MultiPlus can now effectively support weak alternative energy sources. Since load peaks often only occur briefly, the device combination ensures that insufficient shore power or generator output is immediately compensated for with energy from the battery. As soon as the load decreases, i.e., when consumers are switched off, the excess energy can be efficiently used to charge the batteries.

    System configuration

    You can easily configure settings on a single device within minutes using a DIP switch procedure. Parallel and three-phase systems can be easily configured using the VE.Bus Quick Configure and VE.Bus System Configurator software. Off-grid, grid-tied, and self-consumption systems using grid-tie inverters and/or MPPT solar chargers can be easily configured using the corresponding wizard software.







    Surveillance - Wherever and Whenever You Want

    There are several options available to you for monitoring your data, either on-site or remotely, and responding immediately. Here are a few examples:

    Ekrano GX and Cerbo GX - Provides user-friendly system control and monitoring and allows access to the free VRM Online Portal for remote viewing. VRM Portal - This free tool displays all your system data in a clear graphical format. This application allows you to conveniently make system changes from anywhere. You also receive alerts directly via email or push notifications. VRM App - You can conveniently monitor and manage your Victron Energy system from your smartphone or tablet. The app is available for both iOS and Android.

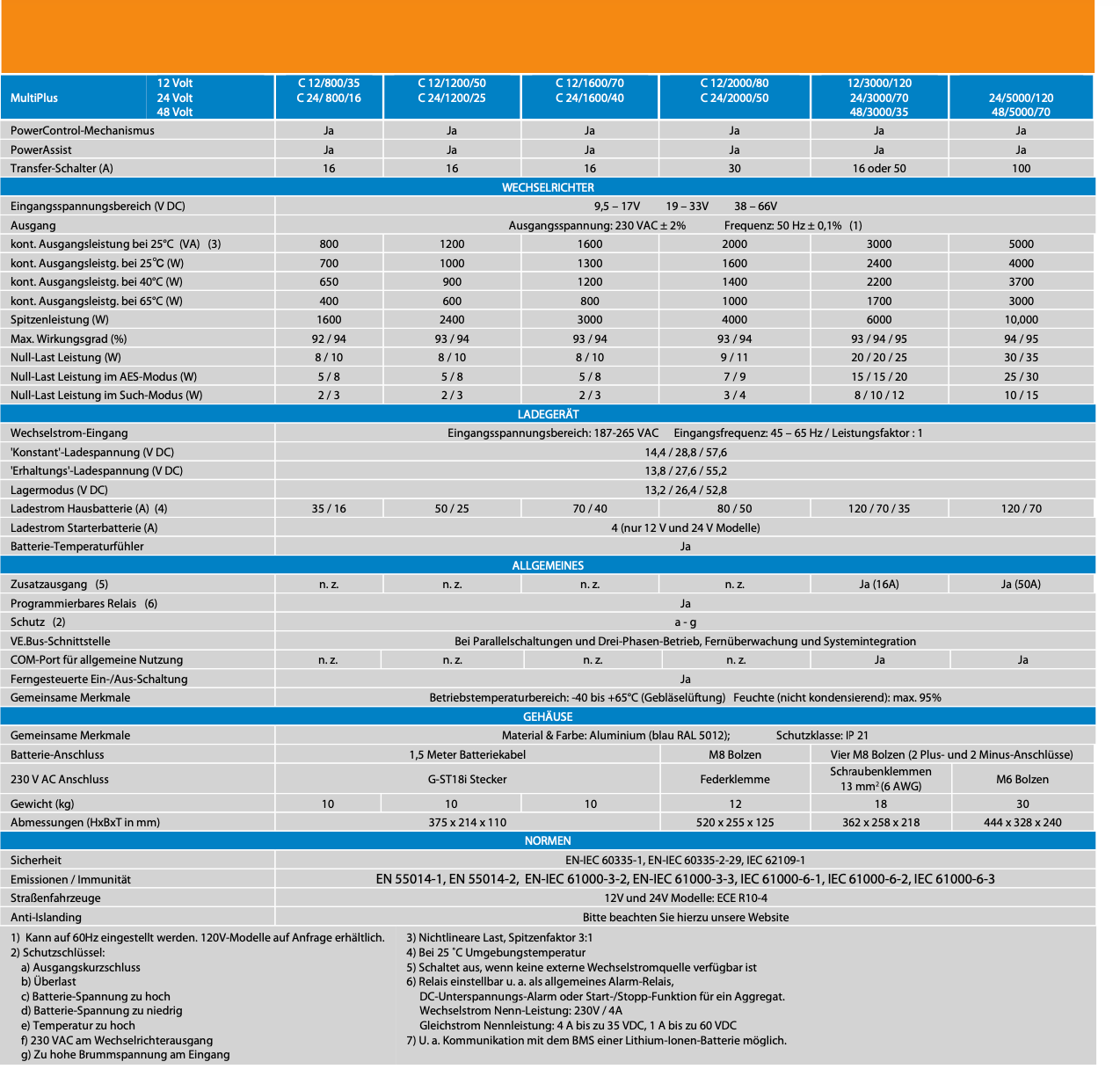

    Technical data

    Inverter

    • Input voltage range: 9-17V DC / 19-33V DC / 38-66V DC
    • Output voltage: 230V AC ± 2%
  • Frequency: 50Hz ± 1%
  • Continuous output power at 25°C: 1600VA (non-linear load)
  • Continuous output power at 25°C: 1300W
  • Continuous output power at 40°C: 1200W
  • Continuous output power at 65°C: 800W
  • Peak power: 3000W
  • Max. efficiency: 93%
  • charger

    • Input voltage range: 187-265V AC
    • Input frequency: 45-65Hz / Power factor: 1
    • Charging voltage constant voltage: 14.4/28.8/57.6V DC
    • Charging voltage-float charge: 13.8/27.6/55.2V DC
    • Storage mode: 13.2/26.4/52.8V DC
    • Charging current of the house battery: 70A
    • Starter battery charging current: 4A (12V and 24V models only)

    General

    • AC input - Input voltage range: 187-250V
    • AC input - Input frequency: 50/60Hz
    • Transfer switch: 16A
    • Operating temperature range: -40°C - +65°C
    • Humidity: max. 95% (non-condensing)
    • Battery connection: 1.5m battery cable
    • 230V AC connection: G-St18i connection
    • Protection class: IP20
    • Weight: 10kg
    • Dimensions: 375 x 214 x 110mm

    Scope of delivery

    1x Victron MultiPlus C 12/1600/70-16 230V VE.Bus device combination 3000W inverter 70A charger
